Summary of Contents for Machine Support Vibracon SM12CS

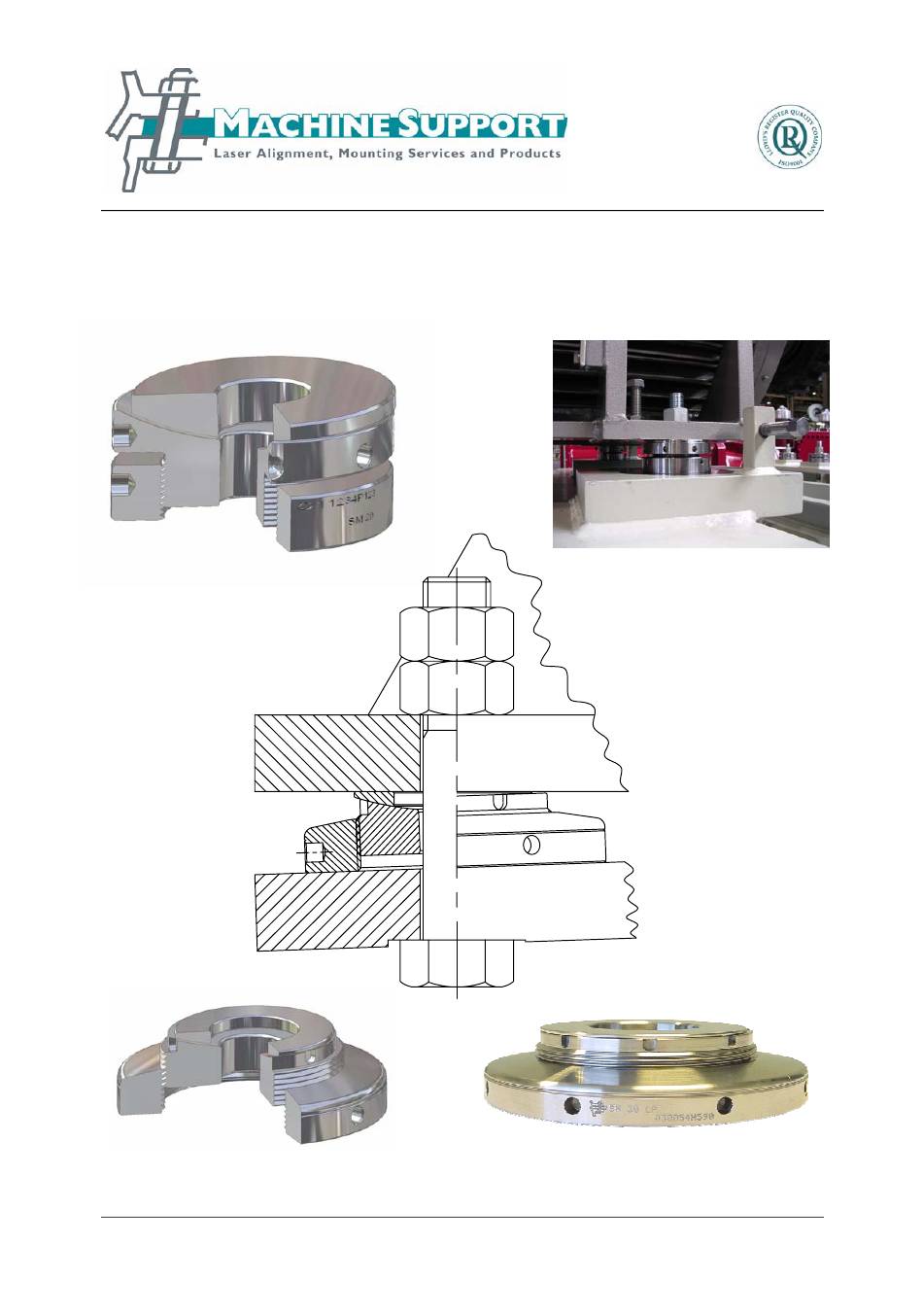

  • Page 1 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 An SKF Group Company ® Vibracon manual ® Version 2.3, May 2009, © Machine Support B.V. Vibracon manual www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...

  • Page 2: Table Of Contents

    Chapter 5 Vibracon Frequently Asked Questions ® Chapter 6 Vibracon Application Design Instructions Chapter 7 Other products and services of the Machine Support Group ® Version 2.3, May 2009, © Machine Support B.V. Vibracon manual www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...

  • Page 3: Chapter 1 Vibracon

    In this manual we will inform you about all facts of the Vibracon . If you have further questions or if you need additional information, please remember The Machine Support Group is a 24/7 organization. Please don’t hesitate to contact one of our offices as mentioned below.

  • Page 4: How To Order Vibracon

    ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 An SKF Group Company ® How to order Vibracon chocks ® Version 2.1, August 2005, © Machine Support B.V. page 1 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 5 ...........7 ® APPENDIX 1 DATA SHEETS FOR VIBRACON CALCULATION APPENDIX 2 EXAMPLE OF CHOCKING PROPOSAL ® Version 2.1, August 2005, © Machine Support B.V. page 2 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 6 How to get a Vibracon chocking proposal free of charge? As a part of our service, Machine Support offers you a free of charge calculation proposal for the mounting of your component. To prepare this calculation we need information concerning the component, the available chocking height and some information concerning the foundation.
  • Page 7 ® Vibracon chocks are always on stock at Machine Support in the Netherlands. However, it is recommended to check the delivery time before ordering. Our local dealers of the elements also have some elements on stock.
  • Page 8 A variety of adjustment tools for confined installation spaces is available. ® Figure 2.3.2 Vibracon Low Profile ® Version 2.1, August 2005, © Machine Support B.V. page 5 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 9 Figure 2.3.3.1 SM element with additional Figure 2.3.3.2 SM - LP element with bottom ring additional bottom ring ® Version 2.1, August 2005, © Machine Support B.V. page 6 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 10 Not available SM64EV 155 mm 250 mm Not available ® Figure 2.3.3.1 Article numbers Vibracon additional bottom rings ® Version 2.1, August 2005, © Machine Support B.V. page 7 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 11 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 APPENDIX 1 DATASHEET FOR VIBRACON CALCULATION ® Version 2.1, August 2005, © Machine Support B.V. page 8 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 12 Top plate thickness (mm) Bottom sleeve length (mm) Remarks: Address information Company Contact Phone E-mail MS-F-333 REV. 04 D.D. 03.05.2005 ® Version 2.1, August 2005, © Machine Support B.V. page 9 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 13 Top plate thickness (mm) Bottom sleeve length (mm) Remarks: Address information Company Contact Phone E-mail MS-F-332 REV. 04 D.D. 03.05.2005 ® Version 2.1, August 2005, © Machine Support B.V. page 10 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 14 Top plate thickness (mm) Bottom sleeve length (mm) Remarks: Address information Company Contact Phone E-mail MS-F-334 REV. 04 D.D. 03.05.2005 ® Version 2.1, August 2005, © Machine Support B.V. page 11 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 15 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 APPENDIX 2 EXAMPLE OF CHOCKING PROPOSAL ® Version 2.1, August 2005, © Machine Support B.V. page 12 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 16 (N/mm²) Disposable yield strength < 90% Tightening torque 1460 (Nm) MS-F-331 BLAD 1/1 REV.00 D.D. 01.08.2001 REV. 27 ® Version 2.1, August 2005, © Machine Support B.V. page 13 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 17 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 ® Version 2.1, August 2005, © Machine Support B.V. page 14 of 16 Vibracon manual, chapter 2 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 18 Calculations are valid for bolts with ISO Metric screw thread and coarse pitch, minimum material grade 8.8, yield strength > 630 N/mm², oil lubricated thread courses and nut mating surfaces without slide additives. ® Version 2.1, August 2005, © Machine Support B.V. page 15 of 16 Vibracon manual, chapter 2 www.machinesupport.com...
  • Page 19 Calculations are valid for bolts with ISO Metric screw thread and coarse pitch, minimum material grade 8.8, yield strength > 630 N/mm², oil lubricated thread courses and nut mating surfaces without slide additives ® Version 2.1, August 2005, © Machine Support B.V. page 16 of 16 Vibracon manual, chapter 2 www.machinesupport.com...

  • Page 20: References And Approvals

    ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 An SKF Group Company ® Vibracon References and Approvals ® Version 2.3, May 2009, © Machine Support B.V. page 1 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 21 APPENDIX 1 CURRENT REFERENCE LIST OF ENGINES MOUNTED ON VIBRACON CHOCKS APPENDIX 2 CURRENT REFERENCE LIST OF GEARBOXES MOUNTED ON ® VIBRACON CHOCKS ® Version 2.3, May 2009, © Machine Support B.V. page 2 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...

  • Page 22: Marine Applications

    Support. Since the introduction in 1988, more than 250,000 chocks have been sold around the world for various applications. If you are looking for a reference of a specific application please contact your local agent or Machine Support. For marine diesel and gearbox applications we have a detailed reference list. For all other applications we just mention the name of the manufacturer and the country of origin.
  • Page 23 • • • Volkswerft Stralsund Kvaerner Warnow Peterswerft • • • Norderwerft Aker MTW Braun • • Blohm+Voss ® Version 2.3, May 2009, © Machine Support B.V. page 4 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...

  • Page 24: Industrial Applications

    Pump sets (under the E-motor) • BW/IP The Netherlands • Stork Pompen (NL) The Netherlands • Lewa Germany ® Version 2.3, May 2009, © Machine Support B.V. page 5 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 25 Germany Paper machines • Voith Germany Turbine stations • Voith transmissions Inc. Production • Hunter Douglas The Netherlands ® Version 2.3, May 2009, © Machine Support B.V. page 6 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...

  • Page 26: Marine Classification Society Type Approvals

    Авторизованный дистрибьютор SKF 8(495)223-07-69 Marine Classification Society Type Approvals Figure 3.3.1 American Bureau of Shipping Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 7 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...

  • Page 27: American Bureau Of Shipping Design Assessment

    ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.2 American Bureau of Shipping Design Assessment ® Version 2.3, May 2009, © Machine Support B.V. page 8 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 28 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.3 American Bureau of Shipping Design Assessment Low Profile ® Version 2.3, May 2009, © Machine Support B.V. page 9 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 29 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.4 American Bureau of Shipping Manufacturing Assessment ® Version 2.3, May 2009, © Machine Support B.V. page 10 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 30 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.5 Bureau Veritas Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 11 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 31 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.6 Bureau Veritas Low Profile Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 12 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 32 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.7 China Classification Society ® Version 2.3, May 2009, © Machine Support B.V. page 13 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 33 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.8 Det Norske Veritas Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 14 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 34 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.9 Germanischer Lloyd Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 15 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 35 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.10 Germanischer Lloyd Low Profile Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 16 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 36 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.11 Lloyd’s Register of Shipping Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 17 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 37 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.12 Lloyd’s Register of Shipping Low Profile Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 18 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 38 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.13 Rina Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 19 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 39 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 Figure 3.3.14 Rina Low Profile Type Approval ® Version 2.3, May 2009, © Machine Support B.V. page 20 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 40 Авторизованный дистрибьютор SKF 8(495)223-07-69 APPENDIX 1 CURRENT REFERENCE LIST OF ENGINES MOUNTED ON ® VIBRACON CHOCKS ® Version 2.3, May 2009, © Machine Support B.V. page 21 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 41 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 REFERENCE LIST: ENGINES ON VIBRACON MS proj. no. Engine type Weight (Tons) Vibracon® Shipyard Country Owner Ship name Class 2004-0473 ABC 3MDX 640.00A SM24LP Gemeentelijk Havenbedrijf Belgium Havenbedrijf Antwerpen m.v." M3 " ABC 6 DZC 10,6 SM24...
  • Page 42 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 REFERENCE LIST: ENGINES ON VIBRACON MS proj. no. Engine type Weight (Tons) Vibracon® Shipyard Country Owner Ship name Class Issota Fraschini V6 SM16 US Navy United States US Navy Pioneer Navsea 2004-1531 Lister Blackstone EWSL 8 MA SM30LP...
  • Page 43 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 REFERENCE LIST: ENGINES ON VIBRACON MS proj. no. Engine type Weight (Tons) Vibracon® Shipyard Country Owner Ship name Class Wärtsilä 6L26 Visser Den Helder The Netherlands Hull number 160 Wärtsilä 6L38 B SM30 Ferus Smit The Netherlands...
  • Page 44 Авторизованный дистрибьютор SKF 8(495)223-07-69 APPENDIX 2 CURRENT REFERENCE LIST OF GEARBOXES MOUNTED ON ® VIBRACON CHOCKS ® Version 2.3, May 2009, © Machine Support B.V. page 22 of 22 Vibracon manual, chapter 3 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...

  • Page 45: Rina

    ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 REFERENCE LIST: GEARBOXES ON VIBRACON MS proj. no. Gearbox type Weight (Tons) Vibracon® Shipyard Country Shipowner Ship name Class 2004-0031 Flender GJZ 2700 SM42LP/SM36LP Damen Shiprepair Rotterdam B.V. The Netherlands Van Oord ACZ m.v.
  • Page 46 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 REFERENCE LIST: GEARBOXES ON VIBRACON MS proj. no. Gearbox type Weight (Tons) Vibracon® Shipyard Country Shipowner Ship name Class 2004-0035 Rhenania 2ANps Gemeentelijk Havenbedrijf Belgium Havenbedrijf Antwerpen crane Titan Rolls Royce 600 AGSC-KP / 500 N Aker Bratvaag Norway Yardnumber 104...

  • Page 47: Installation Procedure

    ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 An SKF Group Company ® Vibracon Installation Procedure ® Version 2, April 2005, © Machine Support B.V. page 1 of 2 Vibracon manual, chapter 4 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 48 Step 8 The bolt tension must be checked after the test run. Machine Support recommends the use of spherical washers in the bolt connection. If you have any questions, please contact Machine Support. Phone: +31 (0)180 48 38 28 ®...

  • Page 49: Frequently Asked Questions

    ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 An SKF Group Company ® Vibracon Frequently Asked Questions ® Version 2, April 2005, © Machine Support B.V. page 1 of 16 Vibracon manual, chapter 5 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 50 ARINE APPLICATION QUESTIONS ® 5.3.1 Is the Vibracon chock approved by classification societies?......11 5.3.2 What information does Machine Support need to make a calculation and a sketch of the chocking arrangement?..............11 ® 5.3.3 Example of a Vibracon chocking proposal ............11 5.3.4...

  • Page 51: Vibracon

    5.1.3 Who is Machine Support? Machine Support is a dedicated engineering service organization, which has been in operation for over 20 years. At present, the group consists of three companies with a wide network of affiliated dealers and services.

  • Page 52: What Are The Benefits Of Vibracon Chocks

    Machine Support's marine engineering services include the research and development into mounting products and advancement of machinery installation techniques. Furthermore, Machine Support is experienced in the support of owners, builders and engineering activities in obtaining classification society approvals or military qualification of the design for satisfactory machinery mountings.

  • Page 53: What Is More Cost Effective: Vibracon

    • Usually no machining of foundations or base frames is required 5.1.6 Where can we use the chocks? ® Figure 5.1.6.1 Several components mounted on Vibracon chocks. ® Version 2, April 2005, © Machine Support B.V. page 5 of 16 Vibracon manual, chapter 5 www.machinesupport.com Техническая поддержка:...
  • Page 54 Figure 5.1.6.2 Generator of genset mounted on Vibracon chocks. ® Figure 5.1.6.3 Detail of bracket with Vibracon to create a fixed point (alternative for fitted bolts). ® Version 2, April 2005, © Machine Support B.V. page 6 of 16 Vibracon manual, chapter 5 www.machinesupport.com Техническая поддержка:...

  • Page 55: Do We Need Special Skills Or Tools To Use The Chocks

    Special skills or tools are not required to use Vibracon chocks. Machine Support always advises you to contact your local dealer or Machine Support for support during the first time installation of the elements. Also, check the installation procedure (chapter 4).

  • Page 56: Technical Questions

    5.2.5 What to do if we want to have elements with extended height? In this case, it is possible to use an additional bottom ring with an extended height (contact Machine Support or your local dealer). The maximum height of the chock should not exceed the diameter of the chock.

  • Page 57: Is It Possible To Enlarge The Bolt Holes Of The Vibracon Chock

    5.2.7 Is it possible to enlarge the bolt holes of the Vibracon chock? To do so you always need approval from Machine Support and the classification society. It is allowed to enlarge the bolt hole of the elements in accordance with the following table:...

  • Page 58: If We Want To Use Dowel Pins, How Should We Do This

    Drill a hole through the foot of the machine into this block. Now the dowel pin can be installed. Figure 5.2.9 Alternatives for a dowel pin application ® Version 2, April 2005, © Machine Support B.V. page 10 of 16 Vibracon manual, chapter 5 www.machinesupport.com...

  • Page 59: Marine Application Questions

    This is mainly necessary for propulsion units and for some societies, also for auxiliary equipment. Contact your local dealer or Machine Support for assistance.
  • Page 60 Tightening torque 4100 (Nm) MS-F-331 BLAD 1/1 REV.00 D.D. 01.08.2001 ® Figure 5.3.3.1 Example of Vibracon calculation report ® Version 2, April 2005, © Machine Support B.V. page 12 of 16 Vibracon manual, chapter 5 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 61 ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 ® Figure 5.3.3.2 Example of Vibracon calculation top view ® Version 2, April 2005, © Machine Support B.V. page 13 of 16 Vibracon manual, chapter 5 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 62 Calculations are valid for bolts with usual thread, material grade 8.8., yield strength > 630 N/mm , oil lubricated thread courses and nut mating surfaces without slide additives ® Figure 5.3.3.3 Example of Vibracon calculation cross section of foundation bolt ® Version 2, April 2005, © Machine Support B.V. page 14 of 16 Vibracon manual, chapter 5 www.machinesupport.com Техническая поддержка:...
  • Page 63 Calculations are valid for bolts with usual thread, material grade 8.8., yield strength > 630 N/mm , oil lubricated thread courses and nut mating surfaces without slide additives ® Figure 5.3.3.4 Example of Vibracon calculation cross section of fitted bolt ® Version 2, April 2005, © Machine Support B.V. page 15 of 16 Vibracon manual, chapter 5 www.machinesupport.com Техническая поддержка:...

  • Page 64: What Bolt Torque Should We Apply

    > 630 N/mm², oil lubricated thread courses and nut mating surfaces without slide additives. As a service to our customers, Machine Support offers you a chocking proposal, with the advised tightening torque included, for your application free of charge! ®...

  • Page 65: Application Design Instructions

    ООО "Индастриал Партнер" www.skf.indpart.ru mail@indpart.ru Авторизованный дистрибьютор SKF 8(495)223-07-69 An SKF Group Company ® Vibracon Application Design Instructions ® Version 2.1, Sept. 2007, © Machine Support B.V. page 1 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 66 6.8 G ....10 ENERAL ARRANGEMENT INFORMATION IBRACON RIGINAL ® 6.9 G ..12 ENERAL ARRANGEMENT INFORMATION IBRACON ROFILE ® Version 2.1, Sept. 2007, © Machine Support B.V. page 2 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 67 Авторизованный дистрибьютор SKF 8(495)223-07-69 Application design instructions As a service to our customers, Machine Support offers you the engineering of a chocking proposal for your application free of charge. To receive a chocking proposal please take a ® look at chapter 2 paragraph 2.1 “How to get a Vibracon chocking proposal free of charge”...
  • Page 68 If the gearbox manufacturer is not able to give these figures Machine Support can calculate these based on introducing a thrust force factor in combination with a tilting line.
  • Page 69 1. Creating enough clamping length by using an extension sleeve; 2. Reducing the shank diameter (contact your local dealer or Machine Support for a calculation of the elongation). The clamping length is the total distance between bolt head and nut, this distance is equal to the sum of: •...
  • Page 70 The foundation and machine foot should be free from paint and grease. If machining of the foundation is necessary, Machine Support can offer you the service to execute the machining with the component in position. Minimum required height is approx.
  • Page 71 ® If you intend to reduce the Vibracon Low Profile configuration please contact Machine Support for advise! ® Version 2.1, Sept. 2007, © Machine Support B.V. page 7 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 72 Original and Low Profile chocks ® On request, Vibracon chocks can be supplied with an extended base plate. ® Version 2.1, Sept. 2007, © Machine Support B.V. page 8 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 73 It is up to the designer to decide if he wants to ream the elements as well. Machine Support advises reaming of the elements only when there are no dowel pins drilled or if no stoppers are installed around the component.
  • Page 74 ® General arrangement information Original Vibracon ® Figure 6.8.1 Vibracon Original ® Version 2.1, Sept. 2007, © Machine Support B.V. page 10 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 75 Calculations are valid for bolts with usual thread, material grade 8.8, yield strength >630 N/mm2, oil-lubricated thread courses and nut mating surfaces without slide additives ® Figure 6.8.2 Standard Vibracon Original general design table ® Version 2.1, Sept. 2007, © Machine Support B.V. page 11 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка:...
  • Page 76 Авторизованный дистрибьютор SKF 8(495)223-07-69 ® General arrangement information Low Profile Vibracon ® Figure 6.9.1 Vibracon Low Profile dimensions ® Version 2.1, Sept. 2007, © Machine Support B.V. page 12 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка: mail@indpart.ru, 8(495)223-07-69...
  • Page 77 Calculations are valid for bolts with usual thread, material grade 8.8, yield strength > 630 N/mm², oil-lubricated thread courses and nut mating surfaces without slide additives ® Figure 6.9.2 Standard Vibracon Low Profile general design table ® Version 2.1, Sept. 2007, © Machine Support B.V. page 13 of 13 Vibracon manual, chapter 6 www.machinesupport.com Техническая поддержка:...
