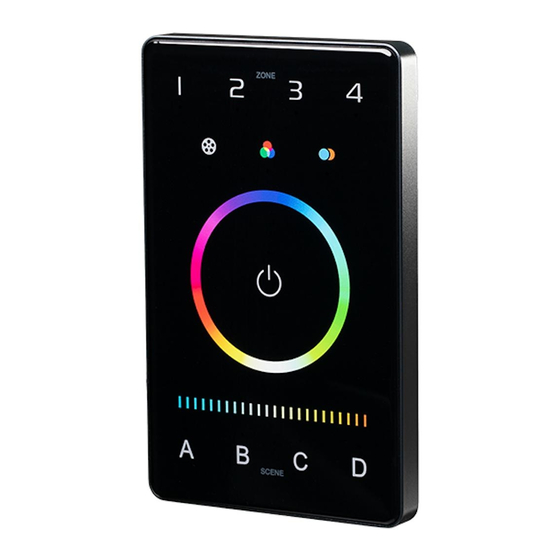

The Intelligent Touch Panel is an American base wall switch, integrating Bluetoot h 5.0 SIG Mesh and DMX
signals. It is a simple but elegant design with CNC a viation aluminum frame and 2.5D tempered glass.
The panel is suitable for multi-scene and multi-zone lighting control applications. Working with Bluetooth
systems makes i t m ore convenient and intelligent.
Model
CTRLW-DMXB-TW-4Z
CTRLW-DMXB-RGBW-4Z
CTRLW-DMXB-RGBTW-4Z
Control mode
TW
RGBW
RGBTW
Input voltage
12-24VDC, Powered by Class 2
Wireless protocol type
Bluetooth 5.0 SIG Mesh
Output signal
DMX 512
Zones
4
Working temperature
-20°C~55°C
Dimensions(L×W×H)
120×75×30(mm)
Package size(L×W×H)
158×113×62(mm)
Weight(G.W.)
225g
Touch color circle (TW)
DMX address settings for TW:
Standard: Both channels are output TW values
Default: Set in the App
Please refer to P5 for more instructions
Short press: Turn ON/OFF TW
Long press: Adjust
brightness of TW
Touch silder bar (TW)
