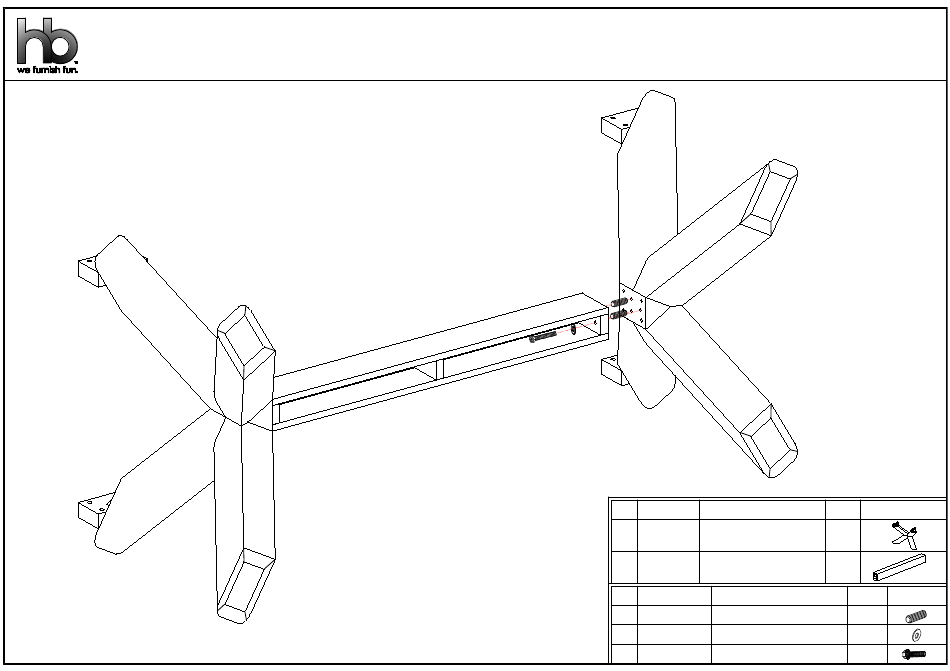

Step 1: Attach the legs to the
1
#7225-ALAMEDA 8' BT
ASSEMBLY INSTRUCTION
leg runner
by using Bolt(C),Washer(B) and Dowel (A)
A
2
B
C
NO NAME
1
Leg runner
2
NO
A
B
C
1
SIZE
Legs
37 3/4" x 13 7/8" x 27 1/4"
44 5/8" x 3 7/8" x 5"
NAME
SIZE
DOWEL
Ø10mmX30mm
WASHER
Ø5/16"XØ3/4"
BOLT
Ø5/16" x 2"
1
/8
PCS
DRAW
2
1
PCS DRAW
4
2
2
Advertisement
Table of Contents
Summary of Contents for HB 7225-ALAMEDA 8' BT
- Page 1 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 1: Attach the legs to the leg runner by using Bolt(C),Washer(B) and Dowel (A) NO NAME SIZE DRAW Legs 37 3/4" x 13 7/8" x 27 1/4" Leg runner 44 5/8" x 3 7/8" x 5"...
- Page 2 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 2: Attach the long beams to the legs by using Bolt(F),Washer(E) and Nut (D) NO NAME SIZE DRAW Long beams 90 3/4" x 1 3/4" x 3 5/8" NAME SIZE PCS DRAW Ø3/8" WASHER Ø3/8"...
- Page 3 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 3: Attach the short beams and end beams to the long beams by using Bolt(G),Washer(E) and Nut(D) NO NAME SIZE DRAW End beams 35 11/16" x 3 3/8" x 1 1/2" Short beams 49" x 4" x 1 1/2"...
- Page 4 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 4A: Locate the center piece of framed slate and position it on the cross beam assembly so that it is centered to both the length and width of the assembly (you must be very accurate with placement). Pre-drill a hole through the slate screw hole using a 3/16”...
- Page 5 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 6: Assemble the blinds completely using Dowel (A), Metal (M) and Screw (K). Step 7: Assemble the end rails completely using Dowels (A), Washer (B), Nut (J) and Threaded Rod (I). NO NAME SIZE...
- Page 6 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 8: Attach the top rail assembly to the blind assembly using Screw (K) and Metal (L). NAME SIZE PCS DRAW SCREW #8 x 1/2" METAL 5" x 1" x 1"...
- Page 7 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 9: Attach rail/blind assemblies to the slate using Dome Washer (N), Star Washer (O), Threaded Rod (P), and Nut (D). NO NAME SIZE PCS DRAW ∅ 3/8" DOME WASHER ∅ 3/8" STAR WASHER ∅ 3/8"...
- Page 8 #7225-ALAMEDA 8' BT ASSEMBLY INSTRUCTION Step 10: NOTE: the side pockets and corner pockets ARE different and will only work correctly one way. To install the pockets, squeeze the top of the pocket and bring it up through the pocket opening from the bottom. Be sure not to push back the pockets so they are flush against the rail;...
