Summary of Contents for frozy FR25 SI
- Page 1 Ice Makers Buz Makineleri USER MANUAL...
- Page 2 Max 5 Bar Min 1 Bar...
- Page 3 0505 Ice Size Dim On-Off Cleaning 10 cm 20 cm 10 cm...
- Page 4 Location: In case the unit is located in an area with no side ventilation, ice making capacity will be decreased by 20% of the posted limit. Leaving enough room around the unit will allow the unit work properly. Normal ice-production capacity is directly relevant with the condenser air delta temperature, water temperature, states of the condenser air channel and age of the machine.
- Page 5 Dear Customer, Your Ice-Maker was manufactured at the Eskişehir Facilities of TASİS Makine Mühendislik Sanayi ve Ticaret A.Ş. Please always have your Ice Maker installed by an Authorized Service. Your manufacturer’s warranty might become void in the case your Ice Maker has been installed by a third party service.
-
Page 6: Table Of Contents
TABLE OF CONTENTS Chapter 01..Safety warnings Chapter 02..General Outlook and Technical Specifications Chapter 03..Installation of Your Ice Maker Chapter 04..Operating Instructions Chapter 05..Cleaning and Maintenance Chapter 06..Troubleshooting Chapter 07..Warranty Information... -
Page 7: Chapter 01
Chapter 01. Safety warnings 1. Always plug in your product to a grounded power outlet. 2. Your ice maker is designed to operate at voltage shown on Technical Table. Running the product at a different voltage may cause the product to become dysfunctional or even may cause fire. -
Page 8: Chapter 02

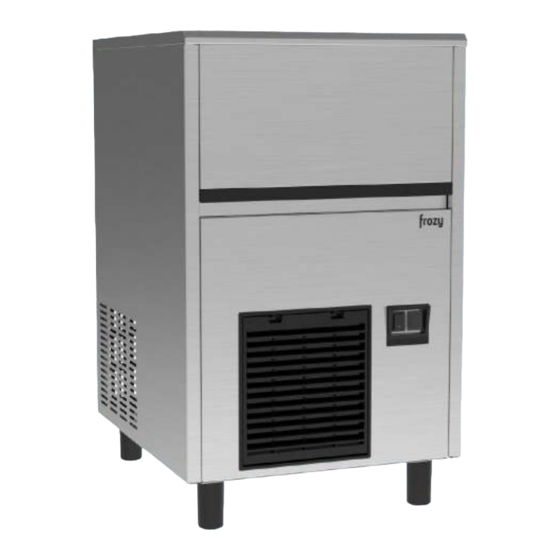

Chapter 02. General Outlook and Technical Specifications Ice Storage Bin Button Group Stainless Steel Body Ventilation Filter Adjustable Leg* Small differences in color and other variations are possible for different visualization, imaging technologies or other technical reasons. The manufacturer is not liable for these differences and deviations. No rights can be obtained due to typographical errors, product descriptions or obvious errors on the website. - Page 9 Technical Table (*) Indicates the daily ice making capacity of the product at 20 C Ambient and 10 C Water Inlet temperature. The presence of particles in the water due to quality of the water source and / or contamination with dirt, installation residue, burrs, slag and so on will adversely affect the operation of the ice maker.
-
Page 10: Chapter 03
Chapter 03. Installation of Ice Maker Selection of Location for Your Product Your product should not be in direct contact with or in close proximity to any heat source. You should leave at least 10 cm of distance if you place your ice maker next to other electrical equipment (such as ovens, computers etc,) that are considered as heat sources. - Page 11 Installation Remove and disassemble all packaging materials of the product before installation. The ice wire, waterproofing plastics and the ice scoop are provided inside the product. If any part or accessory is missing, please contact our customer services. ...
-
Page 12: Chapter 04
Chapter 04. Use of the Ice Maker Operating the Ice Maker After installing your Ice Maker following the instructions above and making all necessary connections; 1. Make sure that the power outlet you are using for your ice-maker is live and has power. -
Page 13: Chapter 05
Chapter 05. Cleaning and Maintenance of Your Ice Maker Safety rules must be observed before cleaning your Ice Maker: 1. Unless otherwise specified, turn off and unplug the unit before starting to clean the Ice Maker. 2. The outer casing of the product should only be cleaned by wiping with a damp cloth. - Page 14 Do not turn off the product while cleaning is in progress. After the cleaning process, discharge the water inside the water pool. (See figure 3) Right after this cleaning, the Ice Set must be cleaned. Cleaning of the Ice Set To remove the top cover, remove the screws in “Figure-6”.
-
Page 15: Chapter 06
Chapter 06. Actions to be Taken Before Calling Authorized Service Malfunction Probable Solution Reason Ice Maker does not Power button is Set the power button to the “On” position. Off. work The power Get the power connection checked by a connection is qualified electrician. - Page 16 Ices are much Water is Place the pool’s discharge plastic to its slot insufficient tightly. smaller than they Cooling system Check the water main connection for the should be. is faulty water leakage. Contact nearest Authorized Service. Ices are much Time setting is Set the time on the electronic card to a incorrect...
-
Page 17: Chapter 07
Chapter 07. Scope of Warranty Dear Customer, This warranty provided by our company does not cover the repair of defects caused by unusual use of the ice maker, and the following items are excluded from the warranty. Malfunctions and damages caused by the operator during use, Malfunctions and damages that occurred during shipment or during loading or unloading and during delivery to the end-user, Malfunctions and damages that occurred due to low or high voltage, usage... - Page 18 Measuring the Mains Water Supply Hardness and Use of Water Filter NOTE: ..........................................................................................................................................................................................................................................................................................................................................................................
