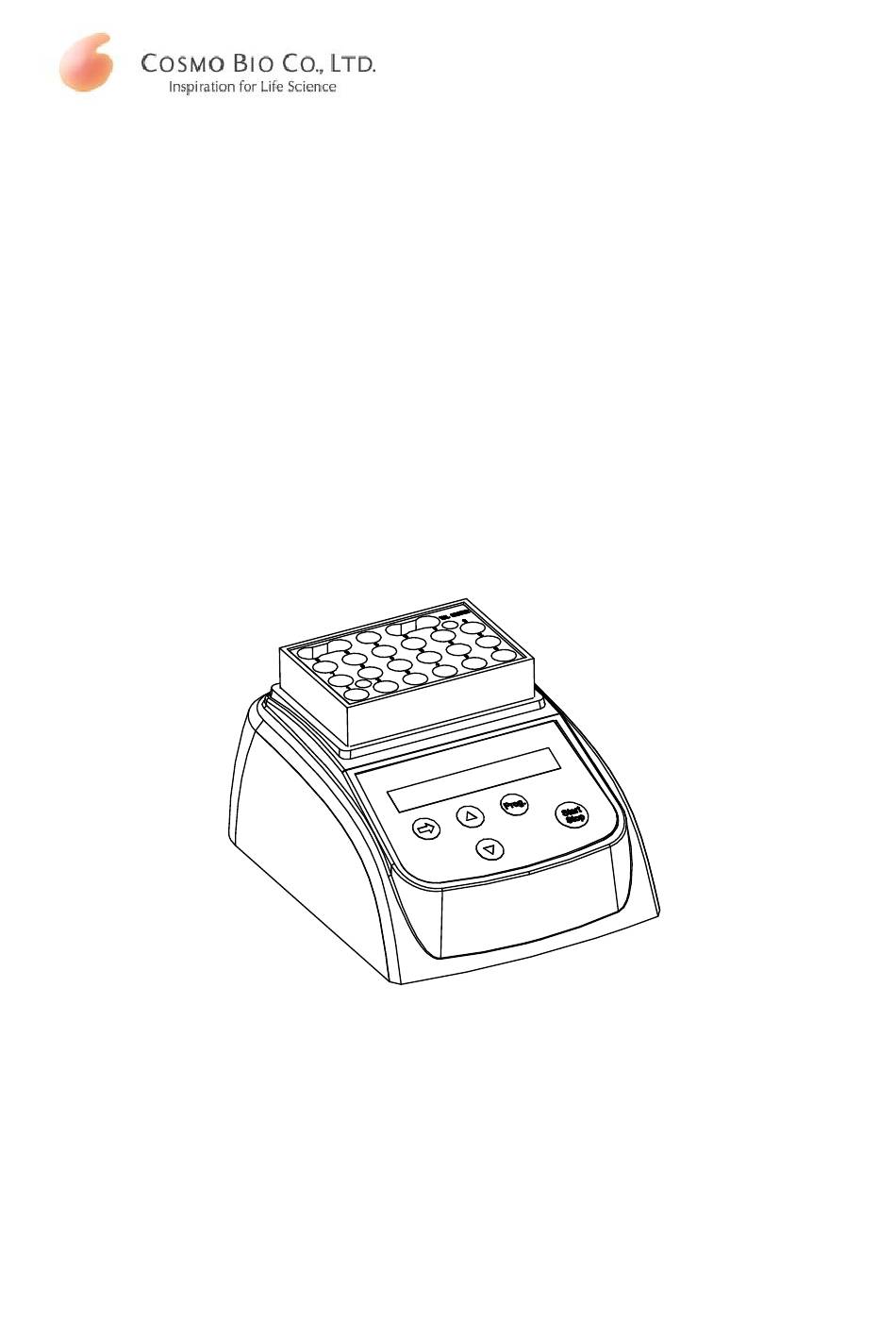

Operations Manual
Ver.2.0
ACE mini INCUBATOR
®
（ACE test
Biological Indicator）
H8100, H8200
Thank you for purchasing the ACE mini INCUBATOR. This manual for users
contains function and operation of the instrument. In order to use the instrument
properly, please read this manual carefully before using the instrument.
Advertisement
Table of Contents
Summary of Contents for Cosmo Bio ACE mini
- Page 1 （ACE test Biological Indicator） H8100, H8200 Thank you for purchasing the ACE mini INCUBATOR. This manual for users contains function and operation of the instrument. In order to use the instrument properly, please read this manual carefully before using the instrument.
- Page 2 Please check the instrument and appendix with the packing list when you first open the instrument packing case. If you find there is something wrong with the instrument and the appendix, do contact the vendor or the producer.
-
Page 3: Table Of Contents
Contents Safety precautions .................... 1 Package contents ....................1 Structure description ..................2 Display ....................... 3 Specification ...................... 3 Operation guide ....................4 Temperature calibration ................... 6 Trouble shooting ....................8 Maintenance and cleaning ................8... -
Page 4: Safety Precautions
Safety precautions Caution ●Do not use voltage other than its designated voltage. ●Do not use AC adapter other than the attached AC adapter. ●The instrument should be put in the place of low temperature, little dust, no water and no sun or strong lamp. What’s more, the place should be good aeration, far away from flammable liquid or gas, central heating, camp stove and other hot resource. -
Page 5: Structure Description
Structure description H8100 H8200 Slitting attachement Block Display Panel Power Switch 電源スイッチ Power Connector... -
Page 6: Display
Display Process mode Current temperature Time 処理中モード 残り時間 P2 56.0℃ 12:30h Specification Model ACE-Mini Power supply DC12V Max Power 35 W Average Power Temperature range RT+5℃～80℃ Timing range 0～99h59m Accuracy of the ≦±0.5℃ temperature Display accuracy 0.1℃ Heating time ≦12min (from 20℃... -
Page 7: Operation Guide
Operation guide This instrument can memorize a combination of temperature and the time as nine programs. The program of the temperature and the time set beforehand is memorized as P1, P2, ... P9. Initial Setting Program Temp Time Applicable sterilization Hydrogen peroxide, Vapor, LTSF,... - Page 8 ® 4. Insert ACE test and close the lid. Press “Start/Stop” key and the program start to count down. You hear a beep and the sign “：” P2 56.0℃ 48:00h flickers. You can stop the program by doing a long press “Start/Stop”...
-
Page 9: Temperature Calibration
Temperature calibration The temperature of the instrument has been calibrated before it is sold. But if there is deviation between the actual temperature and the displayed temperature due to some reasons, you can do as follows to correct the error. The instrument uses double temperatures adjustment to ensure its veracity. - Page 10 3. Press “△” and “▽” key simultaneously, and the temperature rises to 40.0℃ at once, and Adj 40.0 at the same time the sign “*” flickers ceaselessly. When the practical temperature reaches 40.0℃, the sine “Adj” and “*” flicker 「▽」...
-
Page 11: Troubleshooting
Troubleshooting Error Cause Solution No display No main power connection Plug in mains cable on both sides. Check the mains fuse. Power failure Contact service. Controller failure Contact service. “OPEN” in the display with a Broken sensor or loose Contact service. beeping sound contact of the module “SHO”... - Page 12 Manufacturer Distributor...
