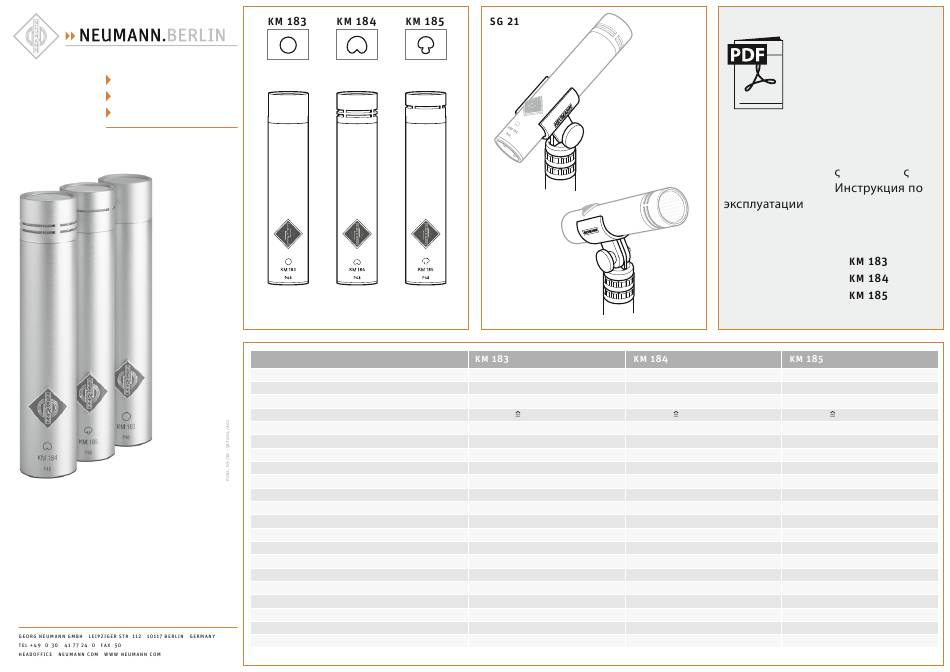

Neumann.Berlin KM 183 Quick Manual

KM 183
KM 184
KM 185
Quick Guide Guia rápido
Kurzanleitung Beknopte handleiding
Guide rapide Krótka instrukcja obsługi
Guida rapida
Snabbguide
Guía de inicio rápido
Kort vejledning
Pikaohje
快速指南
Γρήγορος οδηγός
クイックガイド
Kısa Kılavuz
퀵 가이드
Краткая инструкция
· . · ·
( ) / - · -
@ . · . .
Specifications
Acoustic operating principle
Directional pattern
Frequency response
Sensitivity at 1 kHz into 1 kΩ
Rated impedance
Rated load impedance
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)
1)
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
1)
Equivalent noise level, CCIR 1)
Equivalent noise level, A-weighted
1)
Maximum SPL for THD 0.5%
2)
Maximum output voltage
Supply voltage (P48, IEC 61938)
Current consumption (P48, IEC 61938)
Matching connector
Weight
Diameter
Length
Operating temperature range
Storage temperature range
Humidity range
according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
1)
bk
Pressure transducer Pressure gradient transducer
Omnidirectional Cardioid
20 Hz - 20 kHz 20 Hz - 20 kHz
12 mV/Pa −38.5 dBV ± 1 dB 15 mV/Pa −36.5 dBV ± 1 dB
50 Ω 50 Ω
1000 Ω 1000 Ω
70 dB 72dB
81 dB 81 dB
24 dB 22 dB
13 dB-A 13 dB-A
140 dB 138 dB
10 dBu 10 dBu
48 V ± 4 V 48 V ± 4 V
3.2 mA 3.2 mA
XLR3F XLR3F
approx. 80 g approx. 80 g
22 mm / 22 mm /
107 mm 107 mm
0 °C - +70 °C (32 °F - 158 °F) 0 °C - +70 °C (32 °F - 158 °F)
−20 °C - +70 °C (−4 °F - 158 °F) −20 °C - +70 °C (−4 °F - 158 °F)
max. 90 % at +20 °C max. 90 % at +20 °C
measured as equivalent el. input signal
2)
