Summary of Contents for EasyIO SystemView10

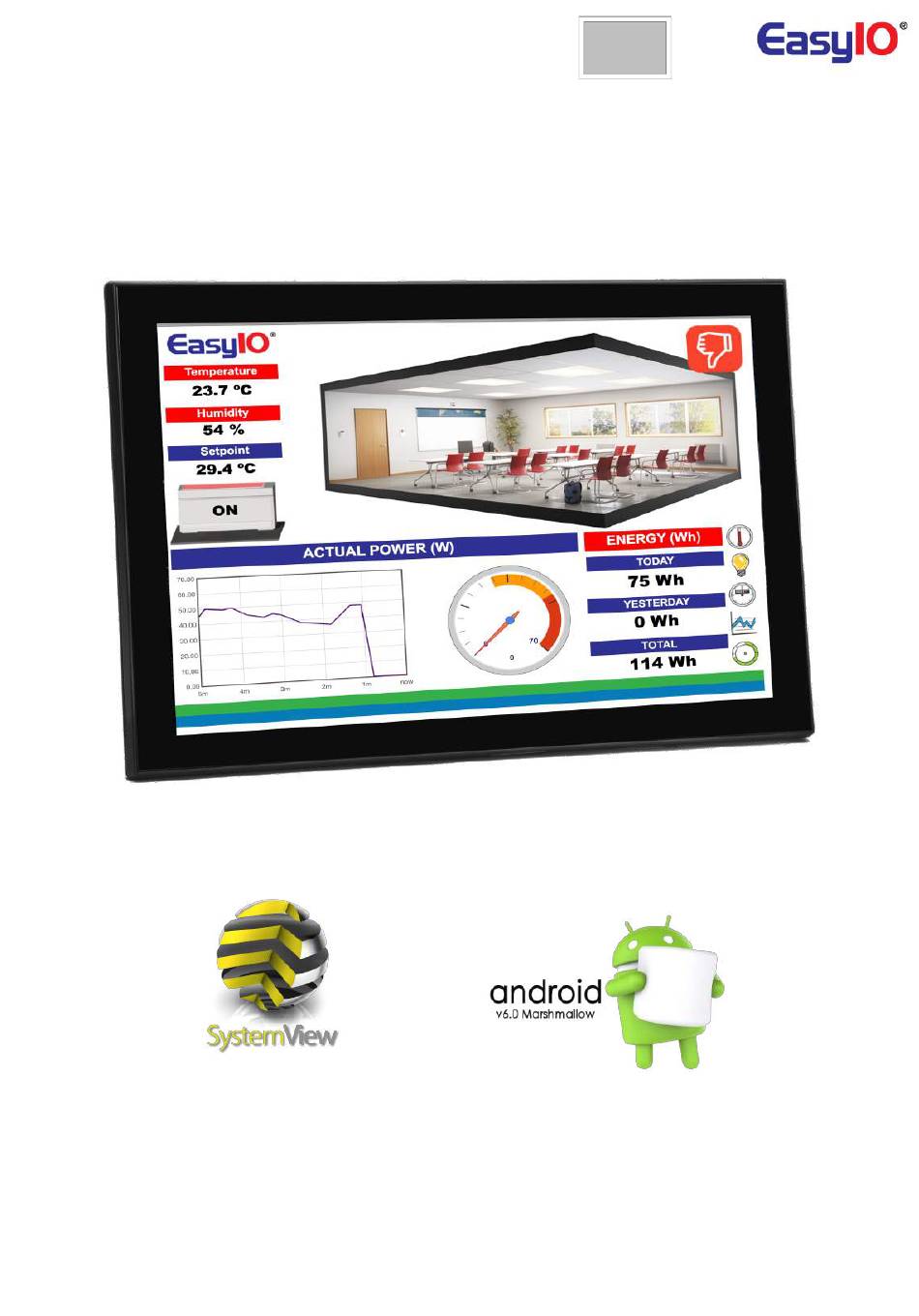

- Page 1 EasyIOeu SH-SystemView10 Configuration EasyIOeu SH-SystemView10 Configuration v2.0...
- Page 2 EasyIOeu SH-SystemView10 Configuration Document Change Log Jan 2019 Document created for new version of SystemView10.
-
Page 3: Table Of Contents
EasyIOeu SH-SystemView10 Configuration Table of Contents Introduction ............................4 Specifications ............................5 Dimension ............................... 6 Hardware Installation ..........................6 Ethernet/Date & time ..........................8 SystemView 2.0a ............................ 9 SystemView 2.0a Settings ........................10 Configurations ............................11 Technical Support ..........................12... -
Page 4: Introduction
Thank you for purchasing EasyIO products. This user guide will help you to configure SystemView10 in a fast and efficient manner. This device is based on Android OS and so there are several settings that device is expecting to get from the network in order to work properly. -
Page 5: Specifications
EasyIOeu SH-SystemView10 Configuration Specifications Model: SystemView10 Solution: Allwinner A83T processor CPU: 8-Core ARM Cortex A7 CPU, 1.2Ghz 10.1 Inch IPS Display,Resolution:1280 x 800, Display: Brightness:350 nit, Ratio:16:10 Hardware Specs RAM: Nand Flash: Sound System: 1W X 1, With Speaker Tunnel... -
Page 6: Dimension
EasyIOeu SH-SystemView10 Configuration Dimension Hardware Installation Requirements: 4x metal clips 1x metal bracket 2x screws... - Page 7 EasyIOeu SH-SystemView10 Configuration 1. Make the cutout for the tablet 2. Screw the metal clips to hold the metal bracket...
-
Page 8: Ethernet/Date & Time
To connect the tablet to some device by Ethernet you need to configure the Ethernet network. Go to Settings->Ethernet, enable Ethernet and if you want to use Static IP address click on Static IP • Set the IP Address of your SystemView10; • Set the Subnet mask of your network (usually 255.255.255.0);... -
Page 9: Systemview 2.0A
EasyIOeu SH-SystemView10 Configuration SystemView 2.0a This app was made to keep the web page opened and to exit only through password. SystemView app will open on boot and even when the tablet reboots it will open automatically. To configure this app you just need to set the IP of your device and first time you power the tablet you need to set to open this app always on boot. -
Page 10: Systemview 2.0A Settings
EasyIOeu SH-SystemView10 Configuration SystemView 2.0a Settings Screensaver and Auto-refresh SystemView app has an Auto-refresh and Screensaver option enabled by default, this means after 5 minutes the SystemView app will open the screensaver (black image) and it will keep refreshing the web page on background every 5 minutes. -
Page 11: Configurations
EasyIOeu SH-SystemView10 Configuration Configurations By default this SystemView device must come with this configuration from factory, anyway you can check these configuration to make sure it works correctly. - SystemView 2.0a app installed. - screensaver.png image must be pasted into folder /storage/emulated/0/systemview/screensaver/... -
Page 12: Technical Support
EasyIOeu SH-SystemView10 Configuration Technical Support To get the latest software or for any technical question contact technical support. Email:support@easyio.eu...
