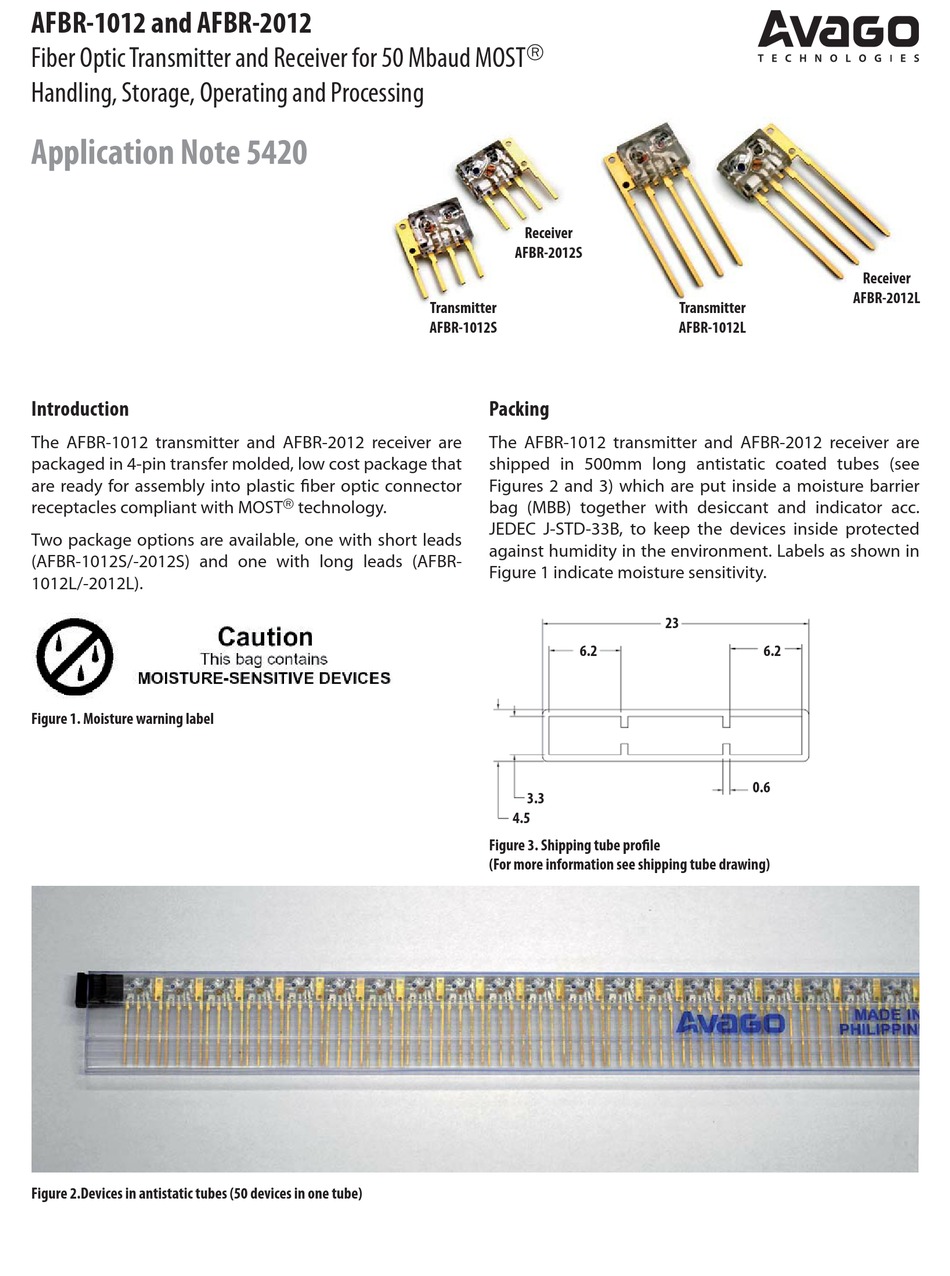

AFBR-1012 and AFBR-2012
Fiber Optic Transmitter and Receiver for 50 Mbaud MOST
Handling, Storage, Operating and Processing
Application Note 5420
Introduction
The AFBR-1012 transmitter and AFBR-2012 receiver are
packaged in 4-pin transfer molded, low cost package that
are ready for assembly into plastic fiber optic connector
receptacles compliant with MOST
Two package options are available, one with short leads
(AFBR-1012S/-2012S) and one with long leads (AFBR-
1012L/-2012L).
Figure 1. Moisture warning label
Figure 2.Devices in antistatic tubes (50 devices in one tube)
Transmitter
AFBR-1012S
£
technology.
£
Receiver
AFBR-2012S
Packing
The AFBR-1012 transmitter and AFBR-2012 receiver are
shipped in 500mm long antistatic coated tubes (see
Figures 2 and 3) which are put inside a moisture barrier
bag (MBB) together with desiccant and indicator acc.
JEDEC J-STD-33B, to keep the devices inside protected
against humidity in the environment. Labels as shown in
Figure 1 indicate moisture sensitivity.
23
6.2
3.3
4.5
Figure 3. Shipping tube profile
(For more information see shipping tube drawing)
AFBR-2012L
Transmitter
AFBR-1012L
6.2
0.6
Receiver
Advertisement
Table of Contents
Summary of Contents for Avago AFBR-1012
- Page 1 AFBR-1012S AFBR-1012L Introduction Packing The AFBR-1012 transmitter and AFBR-2012 receiver are The AFBR-1012 transmitter and AFBR-2012 receiver are packaged in 4-pin transfer molded, low cost package that shipped in 500mm long antistatic coated tubes (see are ready for assembly into plastic fiber optic connector Figures 2 and 3) which are put inside a moisture barrier £...
- Page 2 Floor Life and maximum storage time Electrostatic Discharge (ESD) Protection The moisture sensitivity classification is MSL2a according The devices are sensitive to electrostatic discharges and to JEDEC J-STD-020D. therefore must be handled with care in an ESD protected area, indicated with the sign as shown in Figure 4. Unopened moisture barrier bagged devices can be stored...
- Page 3 ESD Classification Shortening and Lead Bending The devices passed the following ESD tests: The leads of the devices can be bent once to a maximum of 90°, not closer than 1 mm from the edge of the cut Human Body Model (HBM) with U = ±2 kV according JEDEC lead wires between the leads.
- Page 4 The PCB should be designed for optimum heat transfer from the device's interior via the leads to the PCB (especial- ly important for the GND and RES leads of the AFBR-1012 transmitter and the GND lead of the AFBR-2012 receiver as these leads lead to active subcomponents).
- Page 5 For product information and a complete list of distributors, please go to our web site: Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries. Data subject to change. Copyright © 2005-2010 Avago Technologies. All rights reserved.
