Summary of Contents for DIGITEN DHTC-1011

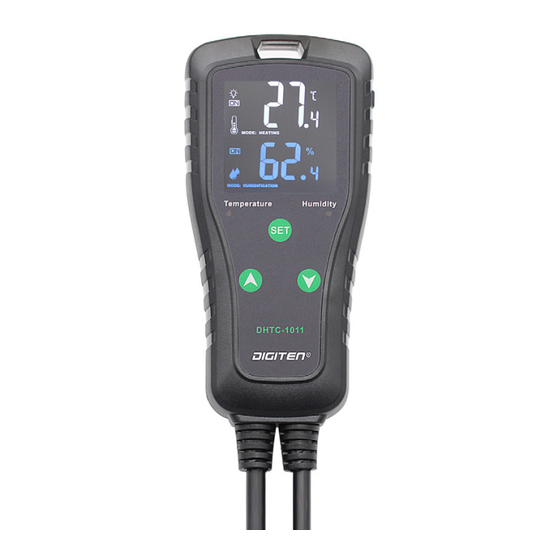

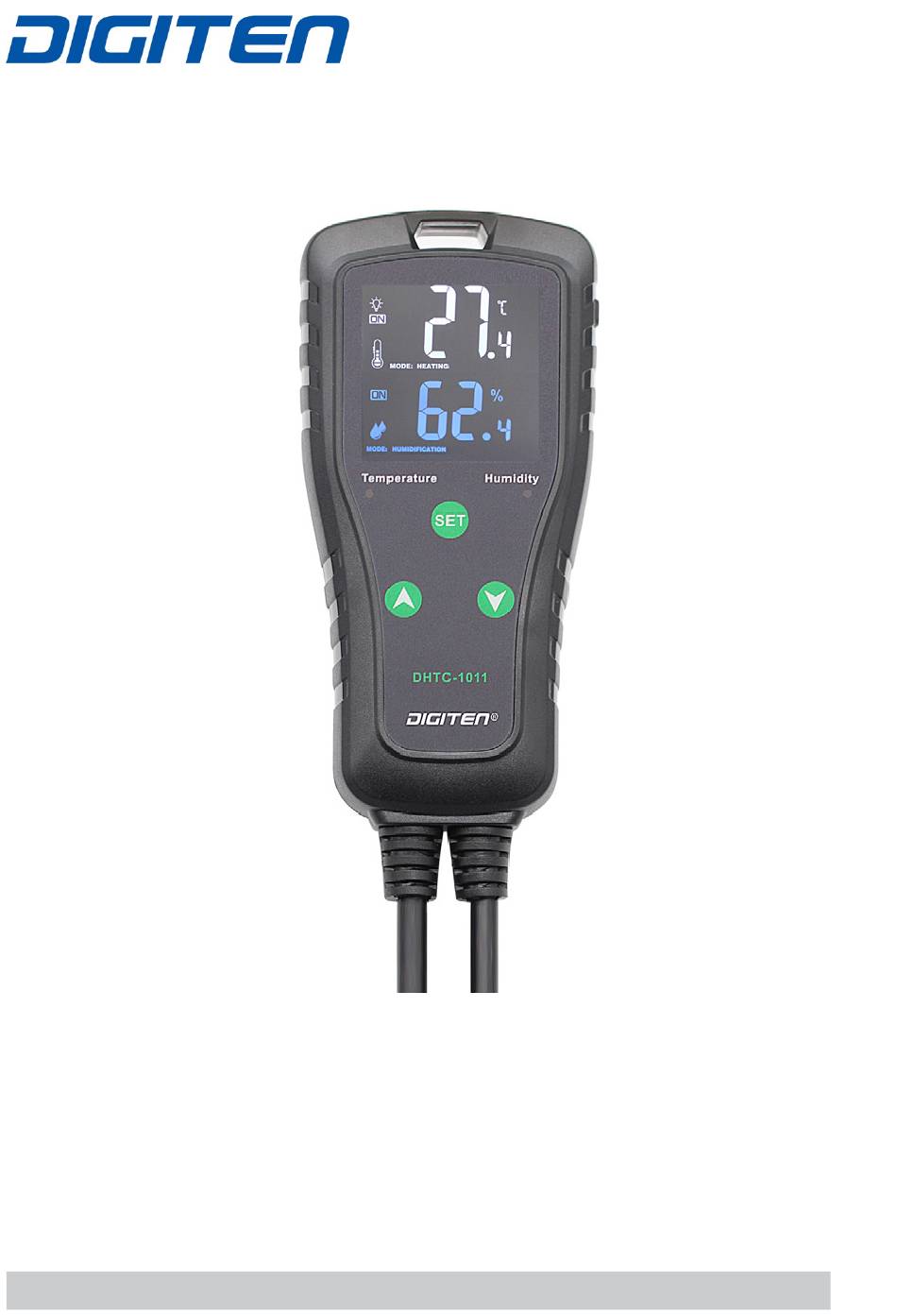

- Page 1 Temperature and Humidity Controller Model: DHTC-1011 www.digit-en.com service@digit-en.com...
- Page 2 Feature • Large LCD screen; • Dual relay output, be able to control heating / cooling equipment and humidification / dehumidification device at the same time; • Support reading with Centigrade or Fahrenheit unit; • Maximum temperature output load: 1100W@110V, 2200W@220V; •...
- Page 3 Display PV: Current measuring temperature/humidity RV: Run value SV: Stop value CA: Calibration DP: Time of compressor Delay Starting ON: Loading working status is on OFF: Loading working status is off HI: High temperature / humidity alarm value LO: Low temperature / humidity alarm value Setting Instruction View the setting value Short press the SET button and you can check the parameter values in...
- Page 4 Note: After changing the temperature unit, all setting values will be restored to the factory settings. Indicator light: The indicator light on the left of the panel is for Temperature, and the right one is for Humidity. Each light is a two-color light that are red and green.
- Page 5 1. Long press the SET button until the appears and the flashes. 2. Short press the UP or DOWN button and there will be a flashing, then press the SET button to select the temperature. 3. Press UP or DOWN to adjust the RUN temperature you required. 4.
- Page 6 Setup Flow Chart Long press SET button for 3s Run temperature Run value Stop temperature Stop value Alarm low temperature Alarm high humidity Alarm high temperature Alarm low humidity Compressor Delay time(mintures) Humidity Calibration Temperature Calibration Long press SET button to save Long press SET button to save Note: Before setting the parameters, please don’t connect any...
- Page 7 5. Press the button to set the SV to 80°F. 6. Long press the SET button to save and return to the home page. 7. Long press the SET button as Step 1. 8. Short press the button and SET button to select the Humidity. 9.
- Page 8 WARRANTY The DIGITEN products are guaranteed to the original owner for one year against defects in workmanship and materials. Please contact us: service@digit-en.com www.digit-en.com/support...
