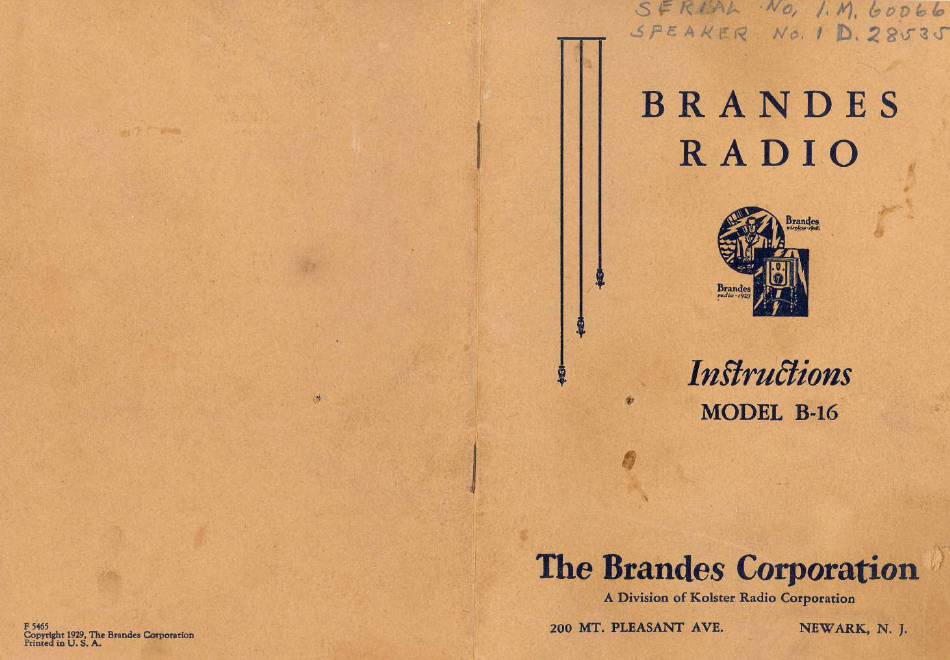

- Page 1 BRANDES RADIO InftruCtions MODEL B-16 Brandes Corporation A Division of Kolster Radio Corporation F 5165 Copvrlllht 1929.The Brandes Corporation PtlnteQ In U. S. A.
- Page 2 BRANDES RADIO Model B-16 The antenna and ground installation is very portant if the best possible reception is to be obtained. The antenna should be erected in a clear space and as high as possible, and should touch nothing but the insulators at either end.
- Page 3 power supply of 100 to 120 volts, 60 cycle alternating current is required. The exact voltage your power supply line may be obtained from your local power company and any necessary voltage ad- justment should be made time of installation set.
- Page 4 single offset prong of the 5-prong tubes as guides when inserting tubes in their proper sockets. Figure 3 gives the outline top of the chassis type 327 or UY 227 type or UX 245 type POWER SUPPLY SWITCH VOLUME TUNING RANGE CONTROL SWITCH...
- Page 5 starting the guide prong in the guide hole and holding The smaller figures near the upper edge of the dial indicate frequencies in kilocycles. The volume of the tube in such a manner that the tube prongs line up with the corresponding holes shown in figure 3 reproduction may be varied by means of the control...
- Page 6 button corresponding to the desired station and turn- SELECTOR TUNER ing the tuning control knob until a latch engages The Selector Tuner furnished on Brandes Radio the button, after which the knob can no longer sets does not change the normal operation or tuning turned.
- Page 7 used to compensate for variation usually found in vacuum tubes. This adjustment is properly made hum adjuster located on the chassis, when the set is tested at the factory and it sug- shown in figure 2. Should you hear an objectionable gested that no change be made.
- Page 8 that the antenna and ground installations are in good condition. Finally take the tubes to your Authorized Brandes Retail Merchant who will be able to test them and tell you if new ones are needed. If the pilot light burns out you can easily replace it by purchas- ing a 2 volt Mazda miniature lamp, No.
- Page 9 BRANDES CORPORA. CARTONS WHICH TION PRODUCTS ARE PRO· BRANDES CORPORA- TECTED BY THE FOLLOWING TION PRODUCTS ARE SHIP- TRADE MARK REGISTRA- ARE PROVIDED WITH TIONS: LABELS WHICH ARE REGIS- TERED IN THE U. S. PATENT 160,082, Oct. 10, 1922, Superior 161,010, Oct.
- Page 10 The Brandes Corporation Number Date Number Date 1,675,031 June 1928 1,641,593 Sept. 6, 1927 1,606,165 Nov. 9, 1926 1,645,231 Oct. 11, 1927 Is licensed under numerous Letters Patents 1,606,212 Nov. 9, 1926 1,645,583 Oct. 18, 1927 1,609,398 Dec. 7, 1926 1,646,707 Oct.
- Page 11 "" \k~+~+~~~+~+~+~+~~+~~~~+~+~~+~~+~~~+~+~+~ • We guarantee each new Brandes Radio sold by our' Authorized Dealers to be free ""fmm defect I" Material and Workmanship. In the evenlj that this set is returned as defective within ~inety days from date of purchase, to the AuthorIzed Dealer I"...
