Summary of Contents for Bofa FumeCAB 700

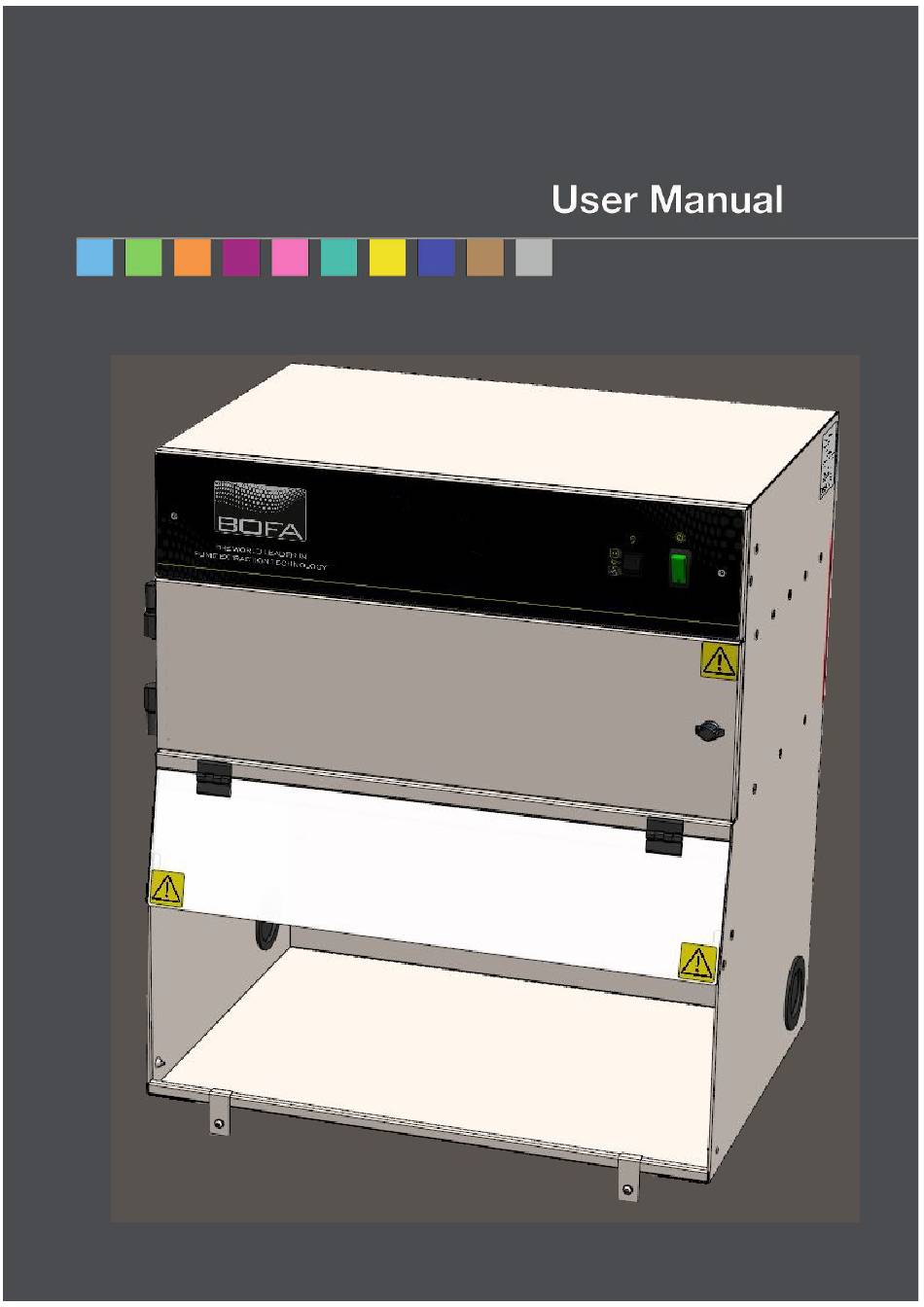

- Page 1 FumeCAB 700 (115V)
-
Page 2: Table Of Contents
Unit Information & Connecting to Mains Operation 5 01 Turning extractor On / changing display units 6 01 Maintenance Cleaning the unit / Pre filter replacement Combined filter replacement 7 01 Consumable spares / Filter disposal Replacement Parts System Specifications 8 01 FumeCab 700 Specifications... -
Page 3: Overview 1
Overview Control Panel Combined Filter Mains Isolation Switch Company Branding Door Latch Hinged Perspex enclosure panel Filter Door Panel Pre Filter Air Inlet Filter Release Handle... - Page 4 Overview Motor Cooling Mains Inlet Air outlet Inlet for Tools/Equipment/Cables...
- Page 5 Overview...
-
Page 6: Safety Instructions
Dangers to eyes, breathing and skin to within this manual. Once used, the filters within the FumeCab 700 system may contain a mixture of particulates, some of which may be sub-micron size. When the used filters are moved it may... - Page 7 Safety Instructions Serial Number Label Warning and Information labels Location: Top left corner of back panel. The following listing details labels used on your FumeCab Meaning: This label contains a variety of information about 700 unit. the extraction unit, including. Goggles, Gloves &...
-
Page 8: Before Installation
2. Open the front door. Check the filters are located in their correct position The FumeCab 700 features a hinged transparent Perspex before closing the door and securing the door latches. panel on the front of the unit. This allows for more room to... -
Page 9: Installation 4
Installation Optional Stand A powder coated mild steel stand/trolley is available as an optional extra for the FumeCab 700. The stand allows easy transportation on four castors at an ideal working height. ESD Compliant FumeCAB 700 The FumeCab 700 has been designed to remove and filter... -
Page 10: Operation 5
Operation Turning extraction unit On To turn on the extaction unit, the main isolation switch must be switched to the “On” position, the top side of the switch should be depressed to power the unit. Please Note: To ensure efficient airflow, the FumeCab must be used with the clear panel in the down position. -
Page 11: Maintenance 6
The cooling inlets and outlets should be cleaned once a year to prevent build-up of dust and overheating of the unit. Replacing Filters The FumeCab 700 system will alert the user when its filters need replacing when the red filter change indicator light on the control panel glows. - Page 12 Remove the pre filter from the tray and replace it with a new, unused BOFA pre filter. Once removed it is recommended that the used filters are bagged and sealed.
- Page 13 The To maintain performance it is important that the filters are thresholds for these risks replaced with identical BOFA filters. To re-order please refer can then be compared with to the Filter number printed on the filter installed in your the amount of material in extraction unit.
- Page 14 System Specifications Unit: FumeCab 700 Face Velocity: 0.4m/s Weight: 70Kg (154.3lbs) Motor: Centrifugal Fan Output: 320w Electrical supply: 115V Hertz: 60Hz Full Load Current: 3A Noise Level: Below 60dB (A) (at typical operating speed) Size: Metric Imperial (mm) (inches) Height 30.7...
- Page 15 Contact Information BOFA Headquarters 21-22 Balena Close Creekmoor industrial Estate Poole Dorset BH17 7DX Phone: +44 (0) 1202 699444 BOFA Americas 303 S.Madison Street Staunton Illnois 62088 Phone: 001 (618) 205-5007...
