PRM2 Precision Panel Rack Mount
Introduction
The PRM2 Precision Panel Rack Mount is a rack-mounting
frame designed to be used to install any ELAN Precision
Panel into a standard 19" equipment rack. The PRM2
holds up to two full size precision panels, four 1/2 frame
precision panels using the PF2 Precision Panel Frame, or a
combination of one full size panel and two 1/2 size panels.
The PRM2 has a custom-designed hinged metal frame
which drops down 90 degrees for easy access to rear
panel punch-downs and connectors. Stainless-steel frame
support cables hold panels steady while punching down
wires.
Features
•
Holds Any ELAN Precision Panel
•
Mounts In Any Standard 19" Equipment Rack
•
7 Rack Spaces (7U or 12.25") Total Height
•
Custom-Designed Drop Down Hinge
•
Wire Punchdown Support Cables
•
Folded Flange / Heavy Gauge Electro-Galvanized
Steel For Increased Strength
•
Rack-Mount Screws (8) Included
•
Panel Screws (8) Included
Installing The PRM2 In A Rack
The PRM2 consists of two pieces. The upper frame should
be installed first, followed by the lower hinge panel. Install
the PRM2 into an equipment rack as follows:

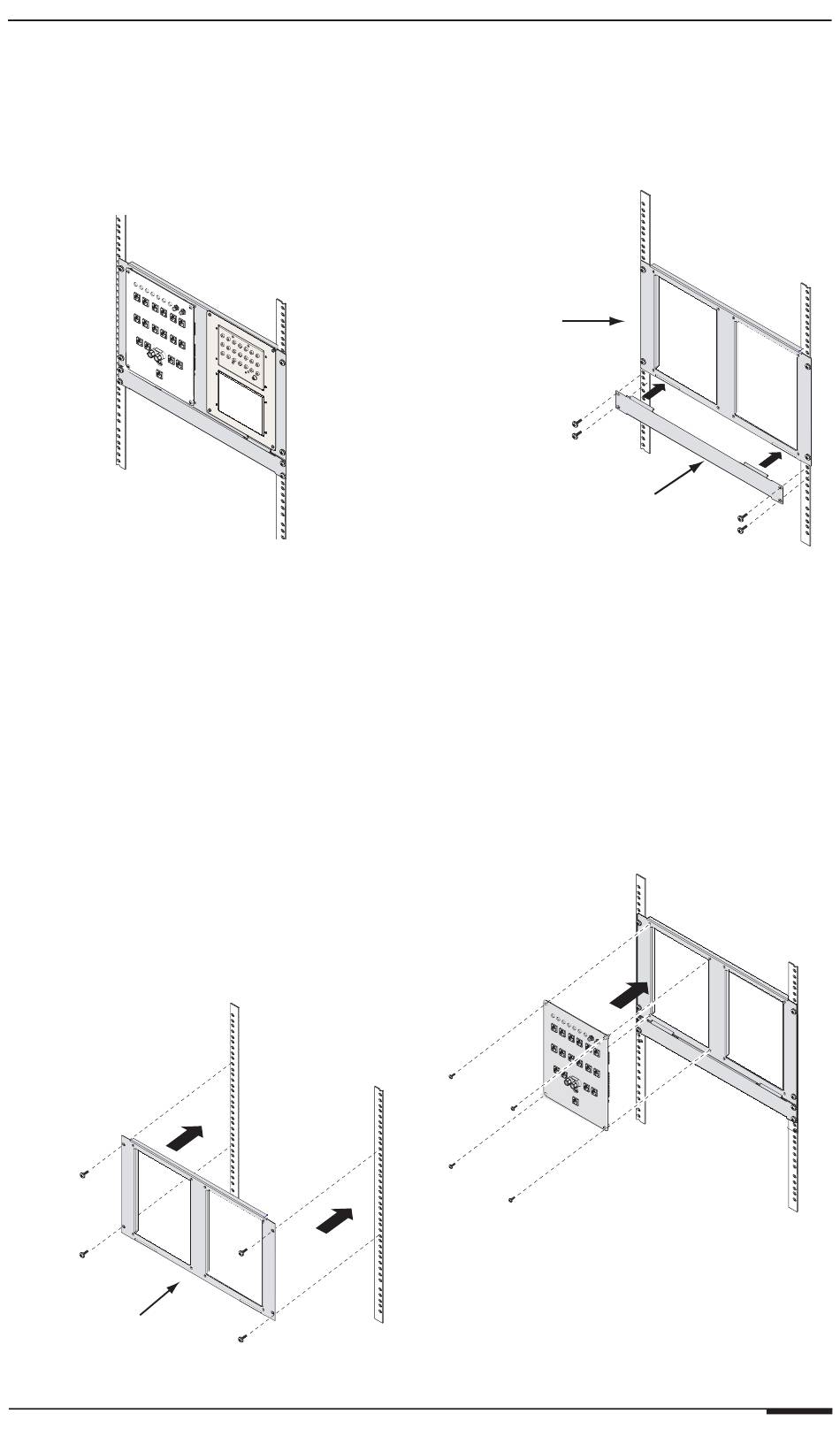

1.
Determine where you want to mount the PRM2 and
attach the upper frame to the equipment rack using
four of the rack screws (larger screws).
UPPER FRAME
© ELAN Home Systems 2005 • All rights reserved.
2.
Attach the lower hinged panel in the rack space
directly below the upper frame using the remaining
four rack screws.
NOTE: The two flange hinges must be inserted into
the two slot openings at the base of the upper panel
blank, as shown below.
UPPER FRAME
LOWER HINGED
PANEL
ELAN Precision Panel Installation
Note: The ELAN full and 1/2 frame precision panels can be
installed facing in either direction on the PRM2 to handle
wire punchdowns either from the rack equipment location
or from the wall.
A. Full Size Precision Panels:
1.
Install full size ELAN Precision Panels into the PRM2
using four of the panel screws (smaller screws) that
came with the PRM2, as shown below.
INSTRUCTION SHEET
A
Page 1
