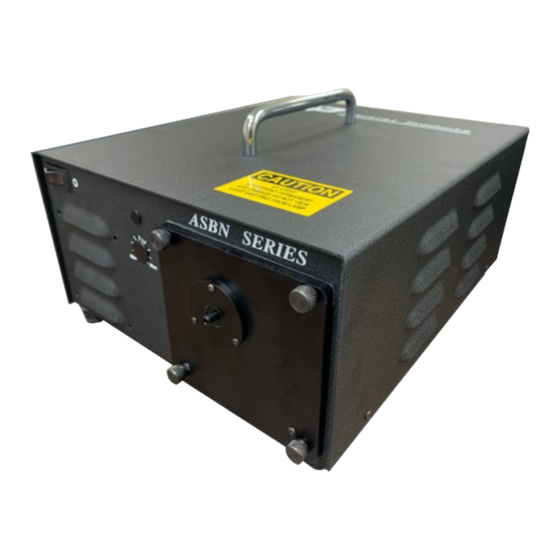

Deuterium and
Tungsten-Halogen
Hybrid Light Source
- ASBN-DW-F/ASBN-DW-F-BAL -
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASBN-DW-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Spectral Products ASBN-DW-F

  • Page 1 111 Highland Drive – Putnam, CT 06260 Phone 860-928-5834 – Fax 860-928-2676 www.spectralproducts.com Deuterium and Tungsten-Halogen Hybrid Light Source - ASBN-DW-F/ASBN-DW-F-BAL - Manual...

  • Page 2: Important Safety Notices

    Warranty and Liability This SP’s product is warranted against defects in material and workmanship for one year from the date of shipment. During the warranty period, Spectral Products will, without charge, repair or replace, at its discretion, the defective product, or components/parts.

  • Page 3: Specification

    111 Highland Drive – Putnam, CT 06260 Phone 860-928-5834 – Fax 860-928-2676 www.spectralproducts.com Specification The following tables provide information on our fiber coupling deuterium and tungsten- halogen hybrid light source. Overview Mount Tapered flange, adjustable, Post mounting for standalone operation Housing Air-cooled w/ two focusable fused silica doublet collection lens sets, 1”...
  • Page 4 111 Highland Drive – Putnam, CT 06260 Phone 860-928-5834 – Fax 860-928-2676 www.spectralproducts.com Component Optics Lens 2 X 1” UV grade fused silica (quartz) plano-convex lens, R=12.9mm, f=25.0mm (nominal), F# in the housing = ~1.4 Lamp 2.5W Bulb Type: Lens-end Operating voltage: 2.6Vdc (could be lower for “-BAL”...
  • Page 5 111 Highland Drive – Putnam, CT 06260 Phone 860-928-5834 – Fax 860-928-2676 www.spectralproducts.com The envelope of tungsten-halogen lamps is made of fused silica. The transmittance of fused silica, therefore, needs to be considered.

  • Page 6: Operation

    SP can provide SMA905 or FC. SMA is the default connector. The tungsten-halogen light is much stronger than the deuterium light in general. The balanced output version, ASBN-DW-F-BAL, will be adjusted the tungsten-halogen output signal at SP based on SP’s CCD spectrometer for the 200-1100nm range.

  • Page 7: Bulb Replacement

    111 Highland Drive – Putnam, CT 06260 Phone 860-928-5834 – Fax 860-928-2676 www.spectralproducts.com Bulb Replacement Replacing the Deuterium lamp bulb 1. Turn off all power. 2. Wait until the lamp cools down. 3. Remove housing. 4. Remove heat shield. 5. Take off the three deuterium lamp leads on the bottom. 6.
  • Page 8 111 Highland Drive – Putnam, CT 06260 Phone 860-928-5834 – Fax 860-928-2676 www.spectralproducts.com Replacing the Tungsten-Halogen lamp bulb 1. Turn off all power. 2. Wait until the lamp cools down. 3. Remove 4 faceplate screws. 4. Pull out the light source slider. 5.

  • Page 9: Technical Support

    111 Highland Drive – Putnam, CT 06260 Phone 860-928-5834 – Fax 860-928-2676 www.spectralproducts.com 10. Place the holder back on the light source mount and tighten the 2 set screws on the mount. NOTE: All the optical components were properly aligned by SP. Do not touch any mounting screws.

This manual is also suitable for:
