ADVANCER TOWER INSTALLATION MANUAL

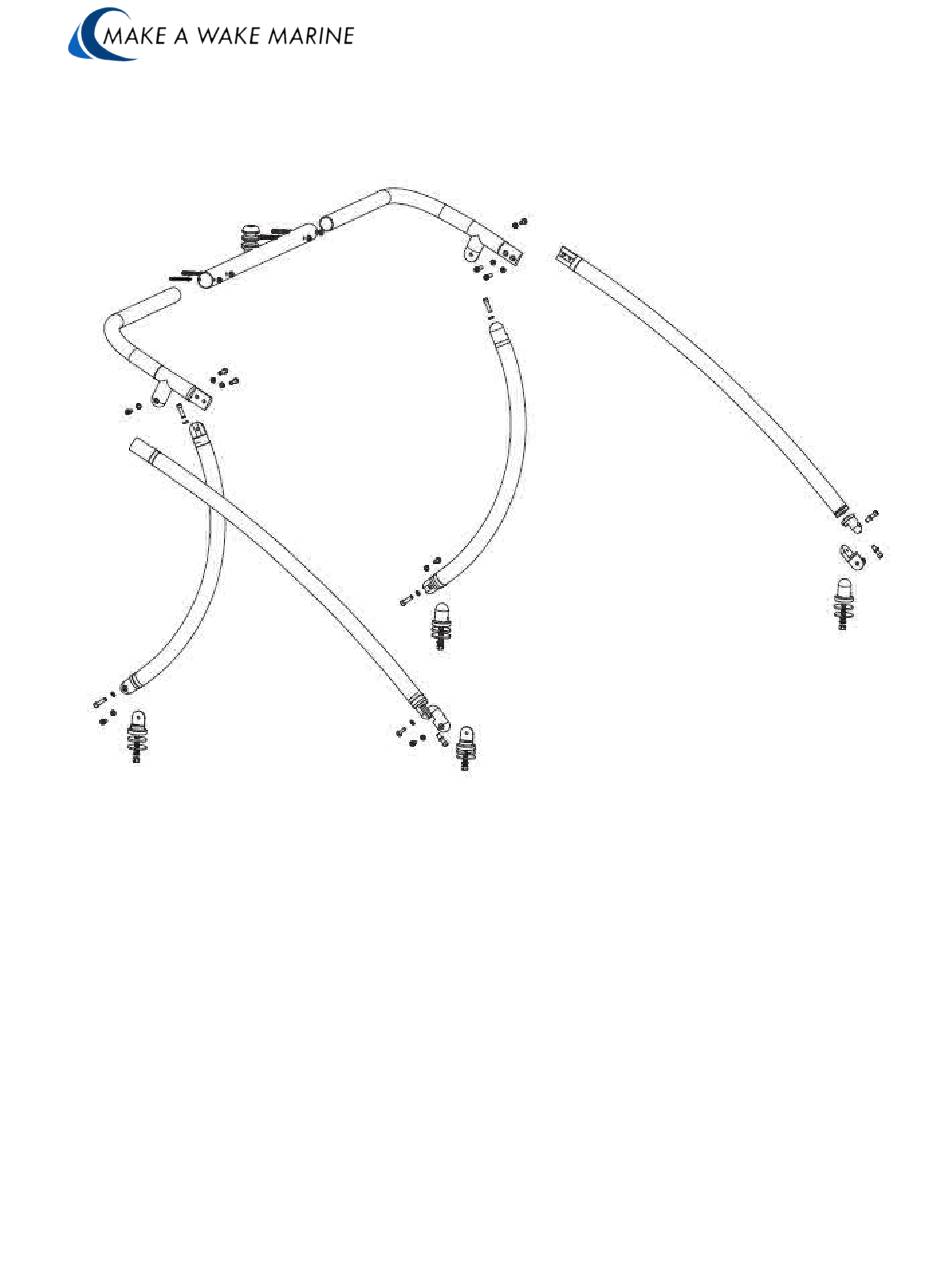

EXPLODED VIEW OF THE TOWER FOR REFERENCE
STEP 1:
Unpack and check the contents of the box. Check the parts list and the Instruction Guide
correspond with the product you purchased. Ensure you have the correct tools to complete the
Installation. If you do not have the skills to complete the installation hire someone who can install
for you. Please Read all Instructions prior to starting installation. If you are NOT sure of any part of
the guide or you have any questions, please contact us. Email: sales@makeawakemarine.com
VERY IMPORTANT NOTE:
1.
Please remove the rubber caps of each leg, it is packaging material which MUST NOT be used
for installation, or it will lower the tower strength.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADVANCER TOWER and is the answer not in the manual?

Questions and answers

Related Manuals for MAKE A WAKE MARINE ADVANCER TOWER

Summary of Contents for MAKE A WAKE MARINE ADVANCER TOWER

  • Page 1 ADVANCER TOWER INSTALLATION MANUAL EXPLODED VIEW OF THE TOWER FOR REFERENCE STEP 1: Unpack and check the contents of the box. Check the parts list and the Instruction Guide correspond with the product you purchased. Ensure you have the correct tools to complete the Installation.
  • Page 2 2. Please DO NOT remove the plastic sleeves inserted in the H top section, they can prevent scratching when you insert tower arms into the top section.

  • Page 3: Parts List

    PARTS LIST STEP 2: Attaching the end fittings to long curved Front Legs Note there is a left and right front leg. You will also see that one end has a welded lap joint already. At the opposite end of the front leg insert the raised circle base of the fitting into the counter sunk area.
  • Page 4 STEP 3: Attach the front legs to the L shape Elbow sections. The front legs have a Square shaped Lap joint already welded onto the top end. Note: There is a Left and Right front leg and a Left and right Elbow L shape also. Attach the lap joint with the two threaded holes of the front leg to the two open holes of the lap joint of the elbow section.
  • Page 5 At the other end of the rear leg insert 1 x threaded fitting with the raised circle base of the fitting into the counter sunk area at the end of the short leg. Use the M12 bolt and split washer inserted through the center and tighten.
  • Page 6 Note the shape and the “at base of the deck mount. Note the threaded hole from the bottom of the base of deck mount. If you don’t have 2x S knuckles, it means you have a swivel deck mount which doesn’t need the S knuckles, please follow below picture, and make sure 1.
  • Page 8 Step 6: Installation of Front Deck Mounts onto Boat. Distance between Front Mounts across the boat up to 2m wide. We recommend to use an extra plate of (plywood or Alloy) underneath the deck between the our alloy plate and the hull of the boat. Spread over the largest possible area to reduce gel coat cracking.
  • Page 9 STEP 8 Attaching the front legs to the deck mounts and telescopic top section. At this stage it is good to mark you elbow section with a reference mark which will come in handy later. Measure from the tube end on the elbow towards the corner bend and make a mark or tape. Step 9: Attaching the tower to the boat.

  • Page 10: Care And Maintenance

    Attach one of the rear legs to your tower. Lift the tower and one person can adjust the position of the rear leg backwards, forwards, up, and down to position you like. You stand back and look from the side to see what you like the best. Mark the deck mount position you like.

  • Page 11: Warranty

    WARRANTY Origin warrants the product (not including other 3 party accessories) against manufactures defects for 5 years to the Original purchaser/owner. To claim you must contact Origin email: jamesgbrands@gmail.com in writing. The product/part maybe requested is to be sent to the Distributor for inspection where it will either be repaired or replaced.
