- Page 1 SPARROW ® RCbro SPARROW Manual v2.0 LefeiRC www.lefeirc.com/...
-
Page 2: Table Of Contents
The equipment and any electronic products on the aircraft cannot be completely reliable. The necessary inspections must be carefully performed before the flight. Content Parameter ............................3 Interface ............................... 3 OSD&LED ............................6 Flight Mode ............................8 Preflight inspection .......................... 9 FAQ ..............................10 LefeiRC www.lefeirc.com/... -
Page 3: Parameter

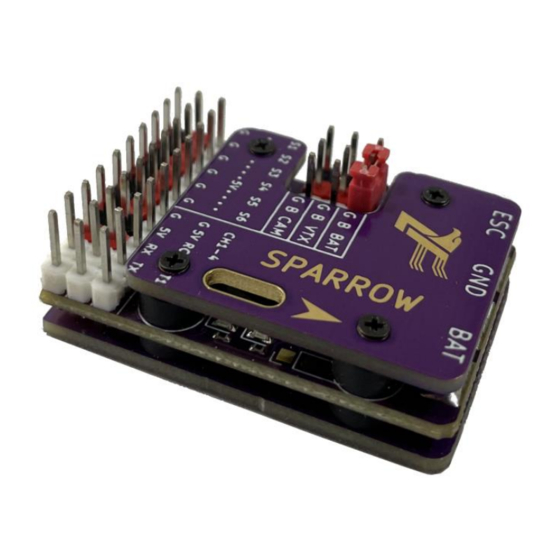

SPARROW ® RCbro Parameter ➢ SIZE：37*25*10mm WEIGHT：15g ➢ POWER FC：5V Battery：2-6S(MAX 80A) VTX、Cammera：powered by battery or external BEC ➢ RC RECEIVER Protocol：PWM、PPM、SBUS、IBUS、CRSF Telem：MAVLINK、CRSF Interface ➢ PORT LefeiRC www.lefeirc.com/... - Page 4 ESC (the closer the ESC is, the better the effect). If space allows, a capacitor can be connected in parallel at the BAT and ESC terminals of the FC. LefeiRC www.lefeirc.com/...
- Page 5 MAX, and then restart the FC , it <RC CALI> will automatically enter ◐ RSSI RSSI channel can be selected, and the range of RSSI value is the same as that of other channels. LefeiRC www.lefeirc.com/...
-
Page 6: Osd&Led
OSD&LED ➢ MAIN Flight Mode GroundSpeed Time Attitude Line Volatge Altitude Current Climb Rate Distance Voyage Return Home Angle Power Consumption Satellite AIL Angle RSSI PITCH Angle Throttle Latitude and Longitude LefeiRC www.lefeirc.com/... - Page 7 Select mode channel MODE-CH HOS/VOS Set OSD offset. Throttle differential ratio controlled by YAW. THR-DIFF MANUAL Sticks control ratio in ACRO mode. PWM:CH1-4 is PWM receiver channel. PORT AUX:CH1-4 is AUX3-6. GPS RESET GPS RESET LANGUAGE Chinese and English. LefeiRC www.lefeirc.com/...
-
Page 8: Flight Mode
When an AUX port is set to throttle, and the <THR-DIFF> is not zero, then you can control the differential rotation of the two motors by YAW channel. It is necessary to pay attention to whether the direction of the speed change of the two motors is correct, if it is LefeiRC www.lefeirc.com/... -
Page 9: Preflight Inspection
RC is failsafe. Therefore, RTH must be included in the three modes set in the OSD. it is recommended to use cut mode or custom mode. PWM/PPM/IBUS/CRSF: the FC can automatic recognition as failsafe,and switch to RTH. SBUS: LefeiRC www.lefeirc.com/... -
Page 10: Faq
A.RTH and FENCE can only be used when the GPS is fixed, otherwise it will become the ALT. Q. Does the FC support telemetry of devices such as FM30 and HM30? A. Yes. The FC can output the MAVLINK protocol with two baud rates of 57600 and 115200. LefeiRC www.lefeirc.com/...
