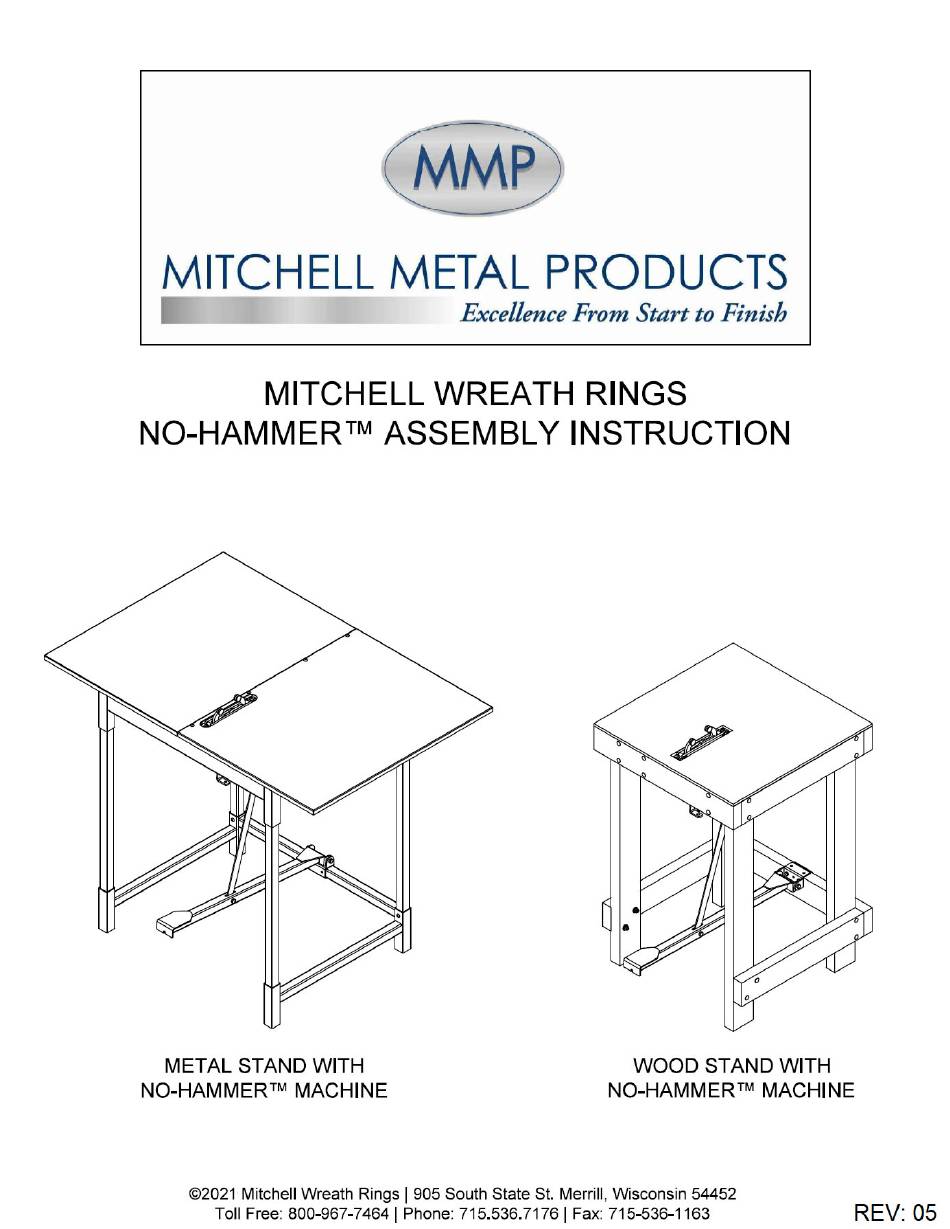

Summary of Contents for MMP NO-HAMMER
-
Page 2: Master Parts List
PAGE 2 OF 10 MASTER PARTS LIST ITEM PART DEFAULT/QTY DESCRIPTION NUMBER NO-HAMMER 589000-111 OUTSIDE PLATE ASSEMBLY NO-HAMMER INSIDE 589000-121 PLATE ASSEMBLY JAW ASSEMBLY, 589000-130 NO-HAMMER 589000-140 SHORT LINK BENT HOOK LEVER 589000-150 ASSEMBLY 589000-160 STRAIGHT LEVER 589000-170 OFF SET LINK... - Page 3 PAGE 3 OF 10 NO-HAMMER METAL FRAME INSTALLATION STEP 1 REMOVE THE OUTSIDE FOOT PEDAL BRACKET FROM FOOT PEDAL ASSEMBLY BY REMOVING THE INSTALLED " HEX BOLT & NUT SHOWN IN DIAGRAM TO THE LEFT REMOVE THE TWO " HEX BOLTS, WASHERS &...
- Page 4 X 20 X COUNTER SINK SCREWS, WASHERS & NUTS FOUND IN THE HARDWARE PACK INCLUDED WITH THE NO-HAMMER MACHINE PLACE THE HEAD ASSEMBLY IN THE ORIENTATION SHOWN IN THE DIAGRAM TO THE RIGHT INSERT THE SCREWS THRU LARGE HOLES ON THE FACE OF...
- Page 5 GATHER THE TWO -20X " HEX BOLTS, WASHERS & NUTS FOUND IN THE HARDWARE PACK INCLUDED WITH THE NO-HAMMER MACHINE PLACE THE HOOK LEVER ASSEMBLY IN THE ORIENTATION SHOWN IN THE DIAGRAM TO THE LEFT INSERT THE HEX BOLTS, THRU THE PRE-DRILLED HOLES OF THE METAL FRAME** AND TIGHTEN WITH WASHERS AND NUTS.
- Page 6 PAGE 6 OF 10 STEP 9* CONNECTING THE HOOK LEVER & FOOT PEDAL ASSEMBLIES: REMOVE THE PRE-INSTALLED CLEVIS PIN, WASHER, COTTERPIN, HEX BOLT, AND NUT FROM THE LINKAGE ASSEMBLY & FOOT PEDAL ASSEMBLY AS SHOWN IN THE DIAGRAM TO THE LEFT STEP 10*** INSTALL THE LONG LINK: INSERT THE LONG LINK BETWEEN THE BARS OF THE...
-
Page 7: Tools Needed
" WRENCHES, OR ADJUSTABLE WRENCHES, OR SOCKET SET WITH RATCHET A PAIR OF RUGGED WORK GLOVES A PAIR OF SAFETY GLASSES NO-HAMMER WOODEN FRAME INSTALLATION STEP 1 REMOVE THE OUTSIDE FOOT PEDAL BRACKET FROM FOOT PEDAL ASSEMBLY BY REMOVING THE INSTALLED "... - Page 8 X 20 X COUNTER SINK SCREWS, WASHERS & NUTS FOUND IN THE HARDWARE PACK INCLUDED WITH THE NO-HAMMER MACHINE PLACE THE HEAD ASSEMBLY IN THE ORIENTATION SHOWN IN THE DIAGRAM TO THE RIGHT INSERT THE SCREWS THRU LARGE HOLES ON THE FACE OF...
- Page 9 TO BEGIN ASSEMBLING THE HOOK LEVER ASSEMBLY TO THE METAL FRAME: GATHER THE TWO HEX BOLTS, WASHERS & NUTS FOUND IN THE HARDWARE PACK INCLUDED WITH THE NO-HAMMER MACHINE PLACE THE HOOK LEVER ASSEMBLY IN THE ORIENTATION SHOWN IN THE DIAGRAM TO THE LEFT PLACE THE HEX BOLT, WASHER &...
- Page 10 PAGE 10 OF 10 STEP 9* CONNECTING THE HOOK LEVER & FOOT PEDAL ASSEMBLIES: REMOVE THE PRE-INSTALLED CLEVIS PIN, WASHER, COTTERPIN, HEX BOLT, AND NUT FROM THE LINKAGE ASSEMBLY & FOOT PEDAL ASSEMBLY AS SHOWN IN THE DIAGRAM TO THE LEFT STEP 10*** INSTALL THE LONG LINK: INSERT THE LONG LINK BETWEEN THE BARS OF THE...
