YERD ZA02-9 Instruction Manual

1. INTRODUCTION

This reel is made of high -qualit y materials and qualified spare parts ,
driven and released by the swirled spring, which can rewind the hose
automaticall y. Also there is a lock dev ice between left cover and reel,
which can control the hose length, when the hose be pulled out or rewound.
The length of hose ranges from 0 -9m, can be 180°swiveled, enlarge the
range of usage. If fitted with different kinds of brackets, it is convenient t o

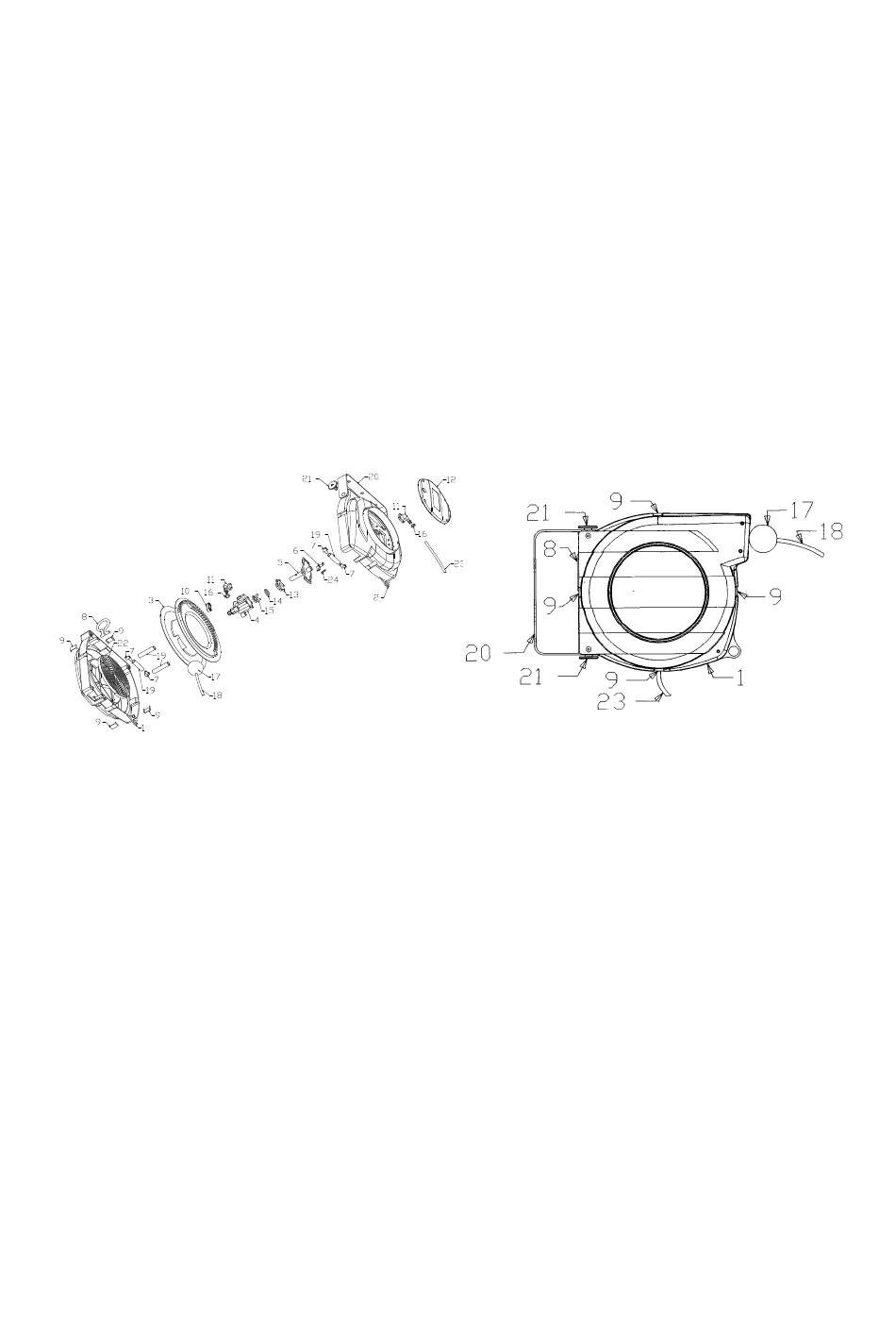

be installed for use in different places. (Fig.1, explosion picture of the unit;
Fig.2, obverse picture of the unit).
Fig.1
1.Left case
2.right case
3.coil string check
4.center shaft
5.suppouting seat
6.ratchet
7.window supporting seat
8.hook
9.stainless steel button

2.INSTALLATION

1. This reel is suitable for installing near source of air. For a large area,
please place it in the center of a yard or a work area, and then you can
enlarge its cover area freel y. Also you can extend the hose to the most
convenient point in this area.
2. Attach the inlet hose to the source of air.
3. The mounting bracket can be installed to a brick wall. There are many
alternative positions in which the unit can be placed. The key point is
subject to what is convenient for the user.
1) The most appropriate position i s to mount it on a wall or post
ZA02-9 AUTOMATIC HOSE REEL
INSTRUCTION MANUAL
10.pressing plate
11.hose connecting seat
12.right low cover
13.cover of aerated center shaft 22.spring
14.flat pad
15.3-phase pad
16.metal button
17.hose stop
18.hose
Fig.2
19.rotation guide
20.mounting bracket
21.bracket-supporting circle
23.supply to hose
24.pull spring
