- Page 1 CNS-4G SMS Cellular Notification System DocRef#0540601 CNS-4G SMS TEXT - User Guide Revised 2021-12-28...
-
Page 2: Table Of Contents
SMS Notification Testing Page 9 Chapter 8 Phone Numbers and Messaging Page 10-11 Appendix A Technical Specifications Page 12 Appendix B List of common APN Numbers Page 13 Appendix C Contact Information Page 13 DocRef#0460601 CNS-4G - User Guide Page 1... -
Page 3: Features

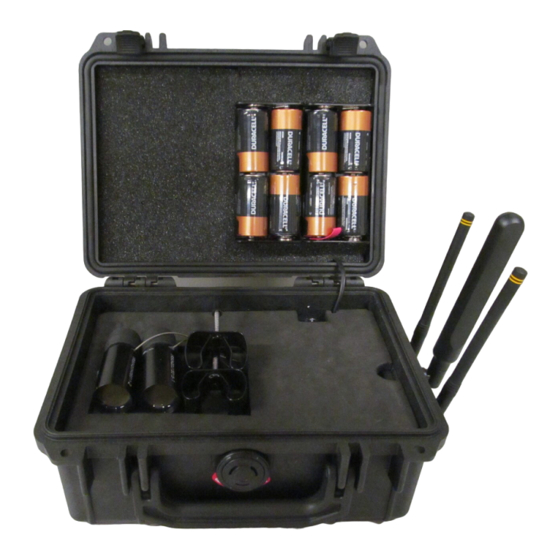

● Text up to six different numbers simultaneously ● Integrated 8 “C” Cell Battery Pack ● Two IR-904 Passive Infrared Sensors with Hard ID’s and tree clips ● Up to 30 days of standby time (10 triggers per day) DocRef#0460601 CNS-4G - User Guide Page 2... -
Page 4: Chapter 1 Hardware
Chapter 1 - Hardware Check this list before using. Contact Intellicam if you find any missing items. Accessory List: 1. AC Power Adapter (QTY 1) – Recommended when programming the Gateway. 2. Sensor Antenna (QTY 2) – Antennas used to receive sensor alarm signals. -
Page 5: Chapter 2 Overview
The Gateway can be triggered by any of our Intellicam Sensors as long as the ID is ID-1 or ID-2. You can program any Intellicam sensor for ID-1 or ID-2. The CNS-4G comes standard with 2 each IR-904 Passive Infrared Sensors that are pre-programmed with a “Hard”... -
Page 6: Chapter 3 Gateway Led Indicators
1 Blink per Second Cellular module was not registered to gateway 2 Blinks per Second Gateway cannot access cellular system No Alarms (This is good) Wifi Wifi On and enabled WIFI Disabled or not working DocRef#0460601 CNS-4G - User Guide Page 5... -
Page 7: Chapter 4 Rx Receiver Led Indicators
Receiver’s RED LED’s continue to blink. 2. If you trigger the CNS-4G with Sensor ID-2 while the receivers are still in Range Test mode. The LED’s will look like figure 2. The two GREEN LED’s indicate Sensor ID-2. If you use Sensor ID-1, two BLUE LED’s... -
Page 8: Chapter 5 Gateway Programming & Configuration
During configuration you should use the AC Adapter plug to power the Gateway, rather than using battery power which might shorten the battery life of your CNS-4G. Power up the Gateway (use AC Adapter and Wi-Fi Antenna Figure 6). Leave all other cables plugged in. -
Page 9: Chapter 6 Setting Up The Sim Card
“Text Testing”. Once you have completed a Text Test you can move on to entering desired “cell numbers” to receive the SMS alarm texts and what “customized” messages you want to send with Sensor ID-1 and with Sensor ID-2 Figure 7 DocRef#0460601 CNS-4G - User Guide Page 8... -
Page 10: Chapter 7 Sms Notification Testing
3. Type in your text message and click on “Send”. Your text message should arrive at your phone within a few seconds. If not please refer to the LED Indicator chart to trouble shoot. Figure 8 DocRef#0460601 CNS-4G - User Guide Page 9... -
Page 11: Chapter 8 Phone Numbers And Messaging
3. Once you have put in all the phone numbers and messages for your application, click on the “Save and Apply” icon. (Fig. 9) 4. The Gateway is now fully programmed and ready for deployment. Figure 9 DocRef#0460601 CNS-4G - User Guide Page 10... - Page 12 Sensors. The CNS-4G is designed to accept any number or type of sensors, but all sensors must have an ID-1 or ID-2. The CNS-4G will not accept any other Sensor ID’s other ID-1 and ID-2. When a sensor sends an alarm with an ID-1 or ID-2, the CNS-4G will receive the alarm, connect to the cell network and send the associated Alarm ID and customized SMS text message.
-
Page 13: Appendix A Technical Specifications
(Using 8 “C” Cells) per day. Enclosure Rating IP 67 Cellular Antenna 5.42 dBi Peak Gain SIM Card SIM / UIM Micro SIM only Dimensions 9.50” x 7.75” x 4.25” Weight 5.20 lbs. DocRef#0460601 CNS-4G - User Guide Page 12... -
Page 14: Appendix B List Of Common Apn Numbers
Verizon (4G, LTE only, USA only) vzwinternet Verizon Static IP NE01.VZWSTATIC WE01.VZWSTATIC SO01.VZWSTATIC MW01.VZWSTATIC Appendix C: Contact Information Contact Information: IntelliCam LLC 11138 Air Park Road, Suite H Ashland, VA 23005 PH: 804-798-1004 www.intellicam-llc.com DocRef#0460601 CNS-4G - User Guide Page 13...
