Seascape Subsea BV
De Hoogjens 22
4254 XW Sleeuwijk
The Netherlands
T. +31-183-307900
E.
info@novasub.com
www.novasub.com
www.seascapesubsea.com

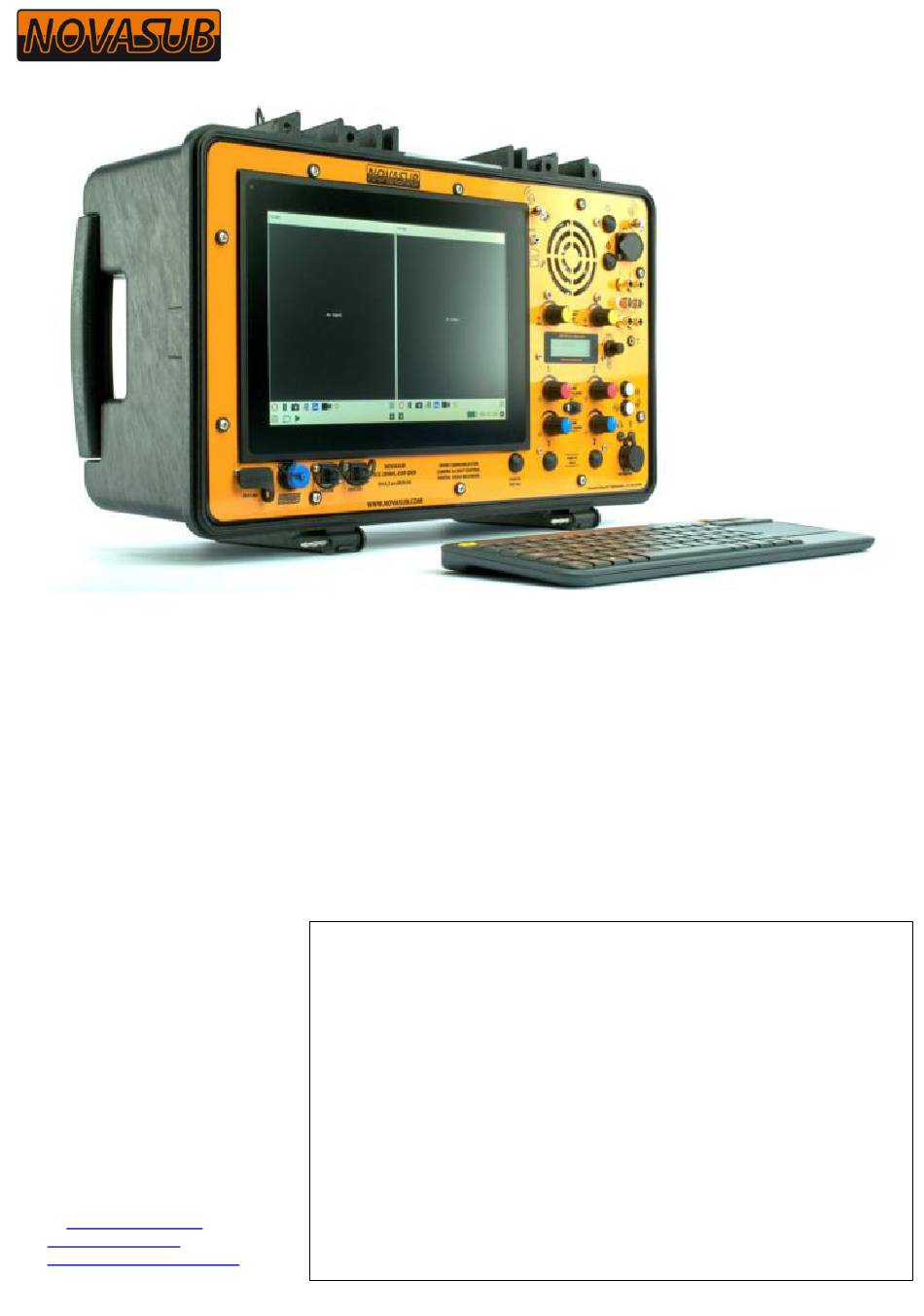

SCC-2DRVL-DSP-DVR G4.0.x Manual
Operations Manual
SCC-2DRVL-DSP-DVR G4.0.x
NOVASUB Surface control case two diver radio
with integrated camera and light control, DVR3 and
12.1" Touch daylight screen,
Version: 1.0 - Date: 26-11-2020
Advertisement
Table of Contents
Summary of Contents for Novasub SCC-2DRVL-DSP-DVR G4.0.x
- Page 1 SCC-2DRVL-DSP-DVR G4.0.x Manual Operations Manual SCC-2DRVL-DSP-DVR G4.0.x NOVASUB Surface control case two diver radio Seascape Subsea BV with integrated camera and light control, DVR3 and De Hoogjens 22 12.1” Touch daylight screen, 4254 XW Sleeuwijk The Netherlands Version: 1.0 - Date: 26-11-2020 T.
-
Page 2: Table Of Contents
SCC-2DRVL-DSP-DVR G4.0.x Manual Index ABBREVIATIONS / TERMINOLOGY ..............................3 INTRODUCTION ....................................4 xDR ........................................4 DVR3 ........................................4 SPECIFICATIONS ....................................5 MAINTENANCE ....................................6 Maintenance scheme ..................................6 GENERAL ......................................7 Basic Controls ..................................... 8 MONITOR ......................................8 PROCEDURES ..................................... 9 Set up ......................................... -
Page 3: Abbreviations / Terminology
Abbreviations / Terminology Ampere hour Comms Communication Diver Depth Gauge Diver Gas Analyzer DVR3 Digital Video Recorder Microphone NovaBus Novasub proprietary data transfer port Push To Talk Volt AC Diver intercom radio www.novasub.com Version: 1.0 - Date: 26-11-2020 3 of 17... -
Page 4: Introduction
DVR3 The Novasub DVR3 is the 3rd generation video recording software developed by Seascape Subsea. The software is completely redesigned from the ground up to accommodate better ease of use, new features, and better image quality. -
Page 5: Specifications
SCC-2DRVL-DSP-DVR G4.0.x Manual Specifications System Name SCC-2DRVL-DSP-DVR G4.0.x Channels Light Control Regulated 32vdc 0-1,7Ah Camera control Balanced or unbalanced 32vdc (optional 12-32vdc) Wireless Connections 2x optional 12.1” DVR Screen size 1000 nits daylight screen Connectors Umbilical Multipin 2x, With Comms, Video, Light & Depth... -
Page 6: Maintenance
Have your system serviced each 2 years by a Novasub Authorized Service Center. This service will include a general operational check, replacement of the battery, and overall upgrade of firmware. The service requires special tools and training. -
Page 7: General
SCC-2DRVL-DSP-DVR G4.0.x Manual General The system can be seen below. Please note that there can be connections to the side or top of the system as well as on the panel. Umbilical Connection Power Connection External Speaker Comms, Video, Multipin:... -
Page 8: Basic Controls
SCC-2DRVL-DSP-DVR G4.0.x Manual Basic Controls Below you find some of the basic controls that are on almost all panels. Press and hold for 1 second to start up the system. This will start up both the DVR3 and the xDR Press and hold for 1 second to shut down the system. -
Page 9: Procedures
SCC-2DRVL-DSP-DVR G4.0.x Manual Procedures Set up • When a case is used, place it on a flat surface that can support the unit. Select a working area which is secure, stable, convenient, and suitable for use during the period of the dive. -
Page 10: Xdr - Diver Intercom
If your system has a DVR3 it can also be found in the “Help” function. That can be opened with the question mark in the bottom of the screen This manual can also be found on www.Novasub.com. There you can find your product and the manuals will be on that page under the Downloads Folder: Find this manual here www.novasub.com... -
Page 11: Dvr3 - Video Software
If your system has a DVR3 it can also be found in the “Help” function. That can be opened with the question mark in the bottom of the screen. This manual can also be found on www.Novasub.com. There you can find your product and the manuals will be on that page under the Downloads Folder: Find this manual here www.novasub.com... -
Page 12: Connectors
SCC-2DRVL-DSP-DVR G4.0.x Manual Connectors Below you will find all the pin diagrams that can be used. Note that not all are in this system. Power 100-240 vac Type Mating type SCC 01-10c / 11c Diver 1&2, camera,light & comms Type... - Page 13 SCC-2DRVL-DSP-DVR G4.0.x Manual SCC-01-17 Camera & Light Type Amphenol MS3102A-20-29S Mating type MS3106A-20-29P Function Pin layout GND Light Vcc Light GND Cam Vcc Cam Video + Video - SCC-02-17a Diver 1 &2 Camera,Light & 2 wire comms Type Amphenol MS3102A-20-29S...
- Page 14 SCC-2DRVL-DSP-DVR G4.0.x Manual SCC 01-018 Mic/Headset Type Lumberg 0271-07 Mating type 0251-07 Function Pin layout 12 vdc Speaker/mic Gnd Mic + Speaker + Below jacks are parallel connected to 0271-07 multipin connector Type Jack 3,5 mm Mating type Jack 3,5 mm...
- Page 15 SCC-2DRVL-DSP-DVR G4.0.x Manual Speaker output Ext. Speaker, amplified Type Banana screw socket Mating type Banana plug Function Pin layout Speaker + Speaker - SCC 01-032 SCC with external 10-36 vdc input Type Hirschmann CA3GS Mating type CA3LD Function Pin layout...
-
Page 16: Help & Support
Further details about a Warranty Statement can be found at the chapter 12 Warranty For technical support contact your local a Novasub Authorized Service Center or Seascape Subsea BV. Seascape Subsea BV is the manufacturer of all Novasub branded products. -
Page 17: Warranty
2. has been repaired using unauthorized spare parts; modified or repaired by unauthorized Service Center; 3. serial number has been removed, altered or made illegible in any way, as determined at the sole discretion of Novasub; 4. has been exposed to chemicals. Novasub does not warrant that the operation of the product will be uninterrupted or error free, or that the product will work with any hardware or software provided by a third party.
