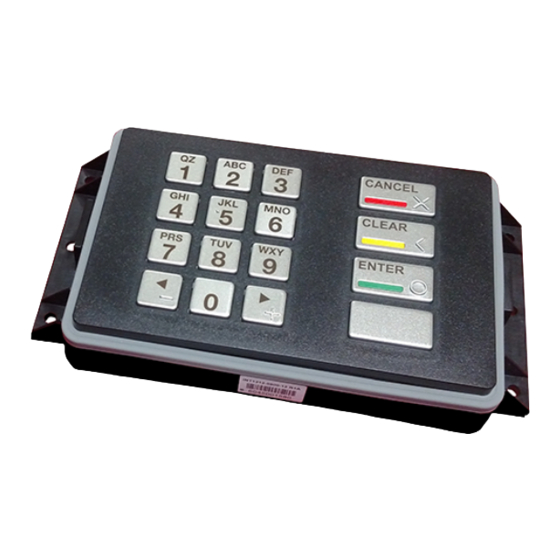

T10 Keypad Install,
Activation - Re-activation Manual
©2020 Triton Systems of Delaware, LLC. All Rights Reserved. ATMGurus®, the ATMGurus logo and tag-
line, Triton®, and the Triton logo are all registered trademarks of Triton Systems of Delaware, LLC. The third
party trademarks that may be identified herein are the trademark of their respective owners. Triton disclaims any
affiliation, connection, or association between its products and services, and those of the respective trademark
owners, or any sponsorship or approval of its products and services by such trademark owners.
TDN 07103-00358
Advertisement
Table of Contents
Related Manuals for Triton atmgurus T10
Summary of Contents for Triton atmgurus T10
- Page 1 ©2020 Triton Systems of Delaware, LLC. All Rights Reserved. ATMGurus®, the ATMGurus logo and tag- line, Triton®, and the Triton logo are all registered trademarks of Triton Systems of Delaware, LLC. The third party trademarks that may be identified herein are the trademark of their respective owners. Triton disclaims any affiliation, connection, or association between its products and services, and those of the respective trademark owners, or any sponsorship or approval of its products and services by such trademark owners.
- Page 2 CSS@triton.com techsupport@triton.com purpose This guide covers the removal of the T9 keypad and installing the T10 keypad for Triton X3 ATMs. scope This manual applies to all service personnel involved in installing, configuring, or upgrading software on Triton ATMs nationwide and abroad.
- Page 3 4. After the ATM notifies it is safe to shut down the computer, open the control panel and press the power switch on the power supply to the OFF (O) position. 5. Squeeze the clip and disconnect the 1x4 multi-wire data cable from the keypad. 6. Disconnect the keypad data cable from the keypad. TDN 07103-00358 Triton Systems ©...
- Page 4 11. Connect the keypad data blue cable to the keypad. 12. Connect the 1x4 multi-wire data cable from the keypad 13. Press the power switch on the power supply to the ON (I) position. 14. Close and lock the control panel. TDN 07103-00358 Triton Systems ©...
- Page 5 1. Navigate to Management Functions > Diagnostics (2) > Keypad (8) > Activate EPP (4). 2. A message screen will appear, “EPP activation successful. ” Press the Enter button and return to Keypad Diagnostics menu. TDN 07103-00358 Triton Systems ©...
- Page 6 3. If the following screen appears, the keypad requires re-activation. Triton Technical Support cannot supply an activation code. The user must log into www.triton.com to complete the reactivation process. The website will require the following information: (Operator ID:, EPP Serial Number:, Nonce Number:, and the ATM serial number).
- Page 7 8. When activation is complete, the “EPP activation successful” message screen appears. Press the Enter button and return to Keypad Diagnostics menu. 9. Press the Exit Management Functions button and set the ATM for customer’s use. End of Procedure TDN 07103-00358 Triton Systems ©...
