Summary of Contents for Seada SDC-TR02

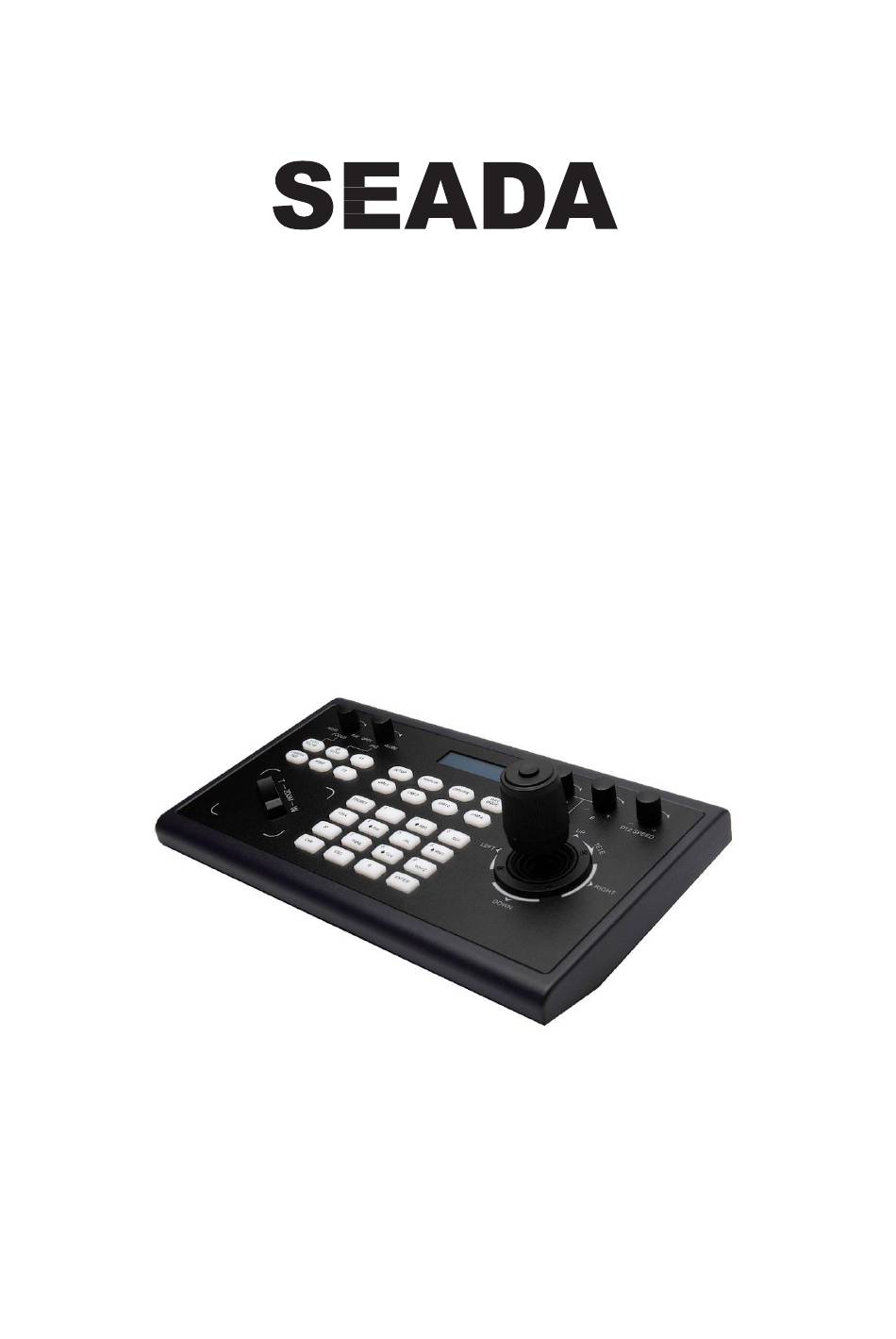

- Page 1 S h o w i n g t h e W o r l d SDC-TR02 Control Keyboard User Manual V1.0...
- Page 2 Description SDC-TR02 control keyboard is the PoE enabled unit to control PTZ cameras either via IP with ONVIF or VISCA or via RS232/422/485 with PELCO-P, PELCO-D or VISCA protocols. One unit of SDC-TR02 control keyboard can be used to control an entire video conferencing system with up to 255 PTZ cameras.
-
Page 3: Table Of Contents
SDC-TR02 Control Keyboard User Manual Contents 1. Product Overview ......................1 1.1 Product Features ......................1 1.2 System Diagram ......................1 1.3 Technical Specifications ..................... 2 1.4 Accessories List ......................2 2. Function Description ......................3 2.1 Button Description ...................... 3 2.2 Rocker Switch and Knob .................... -
Page 4: Product Overview
SDC-TR02 Control Keyboard User Manual 1. Product Overview 1.1 Product Features • Support RJ45, RS422/485/232 control interfaces • Support up to 255 cameras • Support VISCA, ONVIF, PELCO-P, PELCO-D, VISCA over IP protocol • Support 4D joystick to control camera PTZ function •... -
Page 5: Technical Specifications
SDC-TR02 Control Keyboard User Manual 1.3 Technical Specifications Communication Method Network: RJ45; Serial Port: RS422, RS232, RS485 Network: Onvif, Visca Communication Protocols Serial Port: Visca, Pelco-D, Pelco-P Communication Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 115200bps Interface Method 5pin crimping terminal, RS232 interface, RJ45... -
Page 6: Function Description
SDC-TR02 Control Keyboard User Manual 2. Function Description 2.1 Button Description 【AUTO FOCUS】 Auto Focus button: Set the camera in auto focus mode with this button. It will light up when camera is in auto focus mode. 【AE AUTO】 Auto Aperture button: Set the camera in automatic aperture mode with this button. It will light up when camera is in auto aperture mode. - Page 7 SDC-TR02 Control Keyboard User Manual 【INQUIRE】 Inquire button: Check added devices. 【WBC MODE】 Auto white balance button: Set the camera in auto white balance mode. It will light up when camera is in auto white balance mode. 【CAM1】~【CAM4】 Quickly switch device button: Quickly switch to CAM NUM 1-4 devices (ONVIF, IP VISCA, SONY VISCA), or to address code 1-4 devices (VISCA, PELCO).
-
Page 8: Rocker Switch And Knob
SDC-TR02 Control Keyboard User Manual 【ENTER】 Confirm Button. 2.2 Rocker Switch and Knob 【NEAR】 【FAR】 Manually adjust the focal length. 【 OPEN 】 【 CLOSE 】 Manually adjust the aperture, OPEN (Aperture Plus)/CLOSE (Aperture minus). 【R-】 【R+】Manually adjust the Red Gain. -
Page 9: Joystick Control
SDC-TR02 Control Keyboard User Manual 2.3 Joystick Control 2.4 Terminal Description of Back Panel Interfaces Back Panel Details: RS422, RS232, DC-12V, Ethernet, Power Switch. Number Label Physical interface Description 1. To connect RS485 bus: (TA) to connect RS485+, (TB) to connect Control Output RS485-;... -
Page 10: Local Settings (Setup)
SDC-TR02 Control Keyboard User Manual 3. Local Settings (SETUP) 3.1 Basic Settings Move the joystick up and down to switch 1 to 2, and 2 to 3 settings; Move the joystick left and right to switch on and off the button sound prompts, confirm with ENTER button. -
Page 11: Onvif Mode Setting
SDC-TR02 Control Keyboard User Manual 3.6 ONVIF Mode Setting Delete saved device: Move the joystick up and down to view devices; Move the joystick rightward to view the device’s port information; Move the joystick leftward to view the IP, CAM NUM information;... -
Page 12: Web
SDC-TR02 Control Keyboard User Manual 5. Web Page Configuration 5.1 Home Page (1) Connect the controller and computer to the same LAN and enter the controller’s IP address into the browser. (2) Default username: admin; Password: empty (3) Home page is as below: (4) Home page consists of three segments: Search Device List (green);... -
Page 13: Lan Settings
SDC-TR02 Control Keyboard User Manual 5.2 LAN Settings To modify the device IP access way and port parameters in LAN Settings, as shown below: Dynamic address (default access way): the Controller will automatically acquire IP address from the router. Static address: Change the network to static address when necessary; simply input the network segment information to modify.
