3951 Westerre Parkway, Suite 350
Richmond, Virginia 23233 USA
This document covers the mounting and wiring of the
1
NPB‐LON
 option card in a Vykon
(JACE‐200/600, SEC‐J‐x01, or J‐202‐XPR series).
Table 1
NPB-LON option description.
Description
Notes / LON Port Assignments
FTT-10A LON
Up to 2 LON
(LonWorks)
(note that the J-202-XPR series controller
adapter with a
accepts only one option card).
2-position
If one LON option, it operates as LON1,
removable
regardless of Option slot.
screw-terminal
If two LON options, LON1 is Option slot 1,
connector
LON2 is Option slot 2.
plug.
See
Figure 2
Option Slots 1 and 2 on a JACE-200/600 .
Refer to the appropriate JACE
document for further JACE installation details.

Included in this Package

Included in this package you should find the
following items:
• NPB‐LON option card, connector end plate.
• one 2‐position terminal plug, for wiring to an
®
FTT‐10 LonWorks
 network
• This NPB‐LON Option Installation Sheet, Part
Number 10620  Rev. 2

Material and Tools Required

The following tools and supplies may be required for
installation:
• #2 phillips screwdriver: to install the NPB‐LON.
• Small flat‐blade screwdriver: to make wiring
connections to the FTT‐10 Lonworks network.
• #1 phillips screwdriver: to remove and refasten
J‐202‐XPR covers (if applicable).
1. LON and LonWorks are registered trademarks of the Echelon
Corporation.
Information and specifications published here are current as of the date of publication of this document. Tridium, Inc. reserves the right to change or modify
specifications without prior notice. The latest product specifications can be found by contacting our corporate headquarters, Richmond, Virginia. Products or
features contained herein may be covered by one or more U.S. or foreign patents.
NPB-LON Option Installation Sheet
Part Number 10620 Rev. 2
NPB-LON Option
INSTALLATION SHEET
®
JACE controller
®
option cards may be installed
on page 2 for location of
®
 mounting and wiring
Updated: May 29, 2009

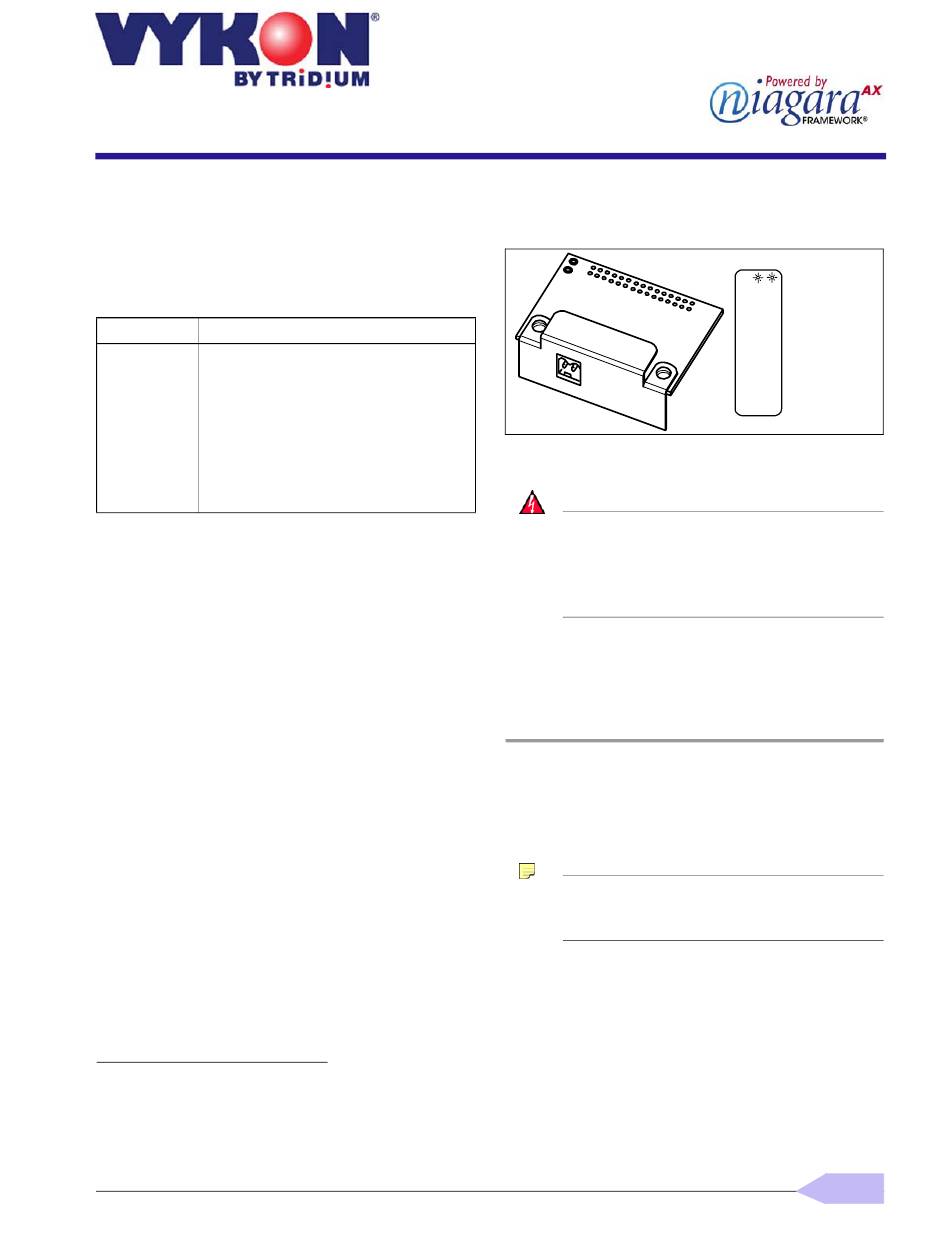

Figure 1
NPB-LON option.

Mounting

Power to the JACE must be OFF when
Warning
installing or removing option cards, or
damage will occur! Also, you must be very
careful to plug any option card into its
connector properly (pins aligned).
Mount the NPB‐LON option card in either of the
option card slots of the JACE, as needed. Note the
J‐202‐XPR series has only one option card slot.

Procedure 1 Mounting NPB-LON option card on a JACE.

Remove power
 from the JACE—see the previous
1.
Warning. Wait for all LEDs on the unit to be Off.
Remove the JACE cover or covers (J‐202‐XPR).
2.
For all but the J‐202‐XPR, press in the four tabs on
both ends of the unit, and lift the cover off.
If accessory modules are plugged into the
Note
JACE, you may need to slide them away from
the unit to get to the cover tabs.
For the J‐202‐XPR, first remove the right cover,
then the left cover, retaining the two screws that
secure each cover.
© 2009 Tridium, Inc.
R
X
T
X
L
O
N
1
