EXP GDC

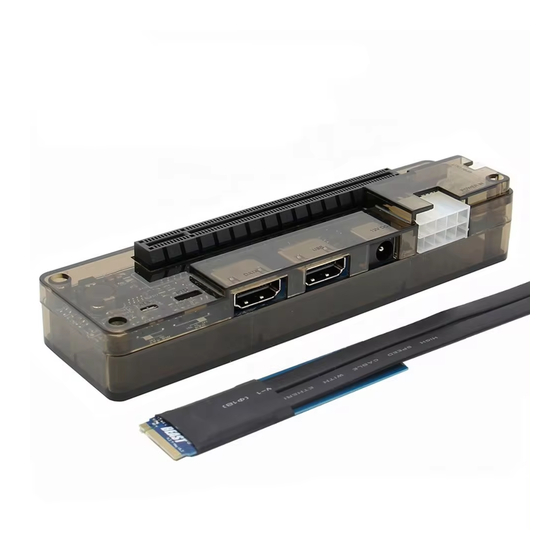

Laptop External Graphics Adapter DOCK
Installation Guide
(170320)
Professional computer hardware, according to the installation guide to use.
One：Disable DGPU；Two：Install external graphics card；Three：Installation drive；Four：Set control panel。
————————————————————————————————

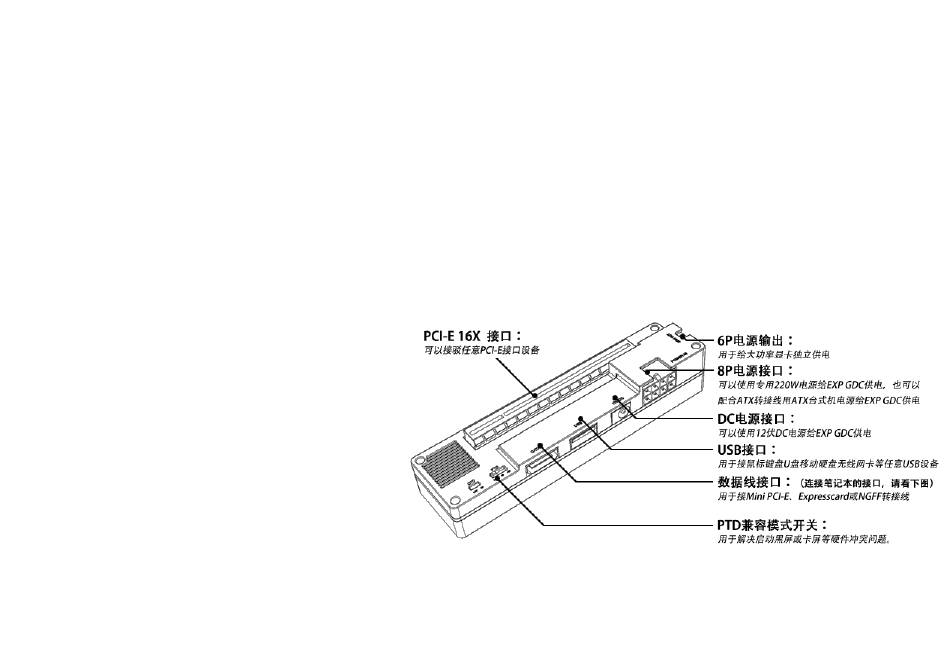

一、Overview
PCI-E Interface:
Connect PCI-E interface equipment, graphics card, sound card,
array card, video card, acquisition card, etc..
6PIN OUT
Connect video card power supply
8PIN IN
Device power supply interface， （Notebook control power switch） 。
DC IN
Support 12 V DC power input, the interface type is outside diameter 5.5MM, diameter 2.1MM, maximum power 150W。
USB：
(Note: X4 PCI-E, X4 M.2 version of the interface for the data line interface, the physical interface type HDMI)
This interface only provides 500MA voltage output, does not have any other features。
Date Interface ：
Connect Mini PCI-E、Expresscard、NGFF（M.2）A Key/x1 or M Key/x4、PCI-E x4 Data line。*** Non-standard HDMI interface, the connection of other
Advertisement
Table of Contents
Summary of Contents for EXP GDC
- Page 1 EXP GDC Laptop External Graphics Adapter DOCK Installation Guide (170320) Professional computer hardware, according to the installation guide to use. One：Disable DGPU；Two：Install external graphics card；Three：Installation drive；Four：Set control panel。 ———————————————————————————————— 一、Overview PCI-E Interface: Connect PCI-E interface equipment, graphics card, sound card, array card, video card, acquisition card, etc..
- Page 2 equipment caused by the damage to their own.*** ATX PW、PTD、Slim Line Switch: By default a switch in the OFF state, do not touch。More special features to consult after sales technical support。 二、Disable DGPU The following operation is performed before the external display card is installed 1、...
- Page 3 三、Hardware install Important note: after all the hardware installed, and then start the notebook 1、 ATX POWER Note: when using the ATX power supply, the graphics card 8PIN 6PIN/ power supply directly from the power supply connection. Graphics card The power supply interface must be connected to the. (cable reference right) 四、Graphics driver installation and settings 1、Graphics driver installation 2、Log-in，NVIDIA Control panel-Configure Surround,PhysX-Processor:-GTX***，Check Only use Physx。Manage 3D settings-Global Settings-High...
- Page 4 Trouble shooting reference Start troubleshooting 1、Start a black screen, no display card or at the start of LOGO. 1】 laptops may not support 4G or more memory, * * * use 2G memory * * * * *. 2】 Connected LCD 3】...
- Page 5 Optimization setting 1、Close energy saving options 2、Do not hot plug hardware...
