HiSpec HSODS Instruction Manual

HSODS
Instruction Manual

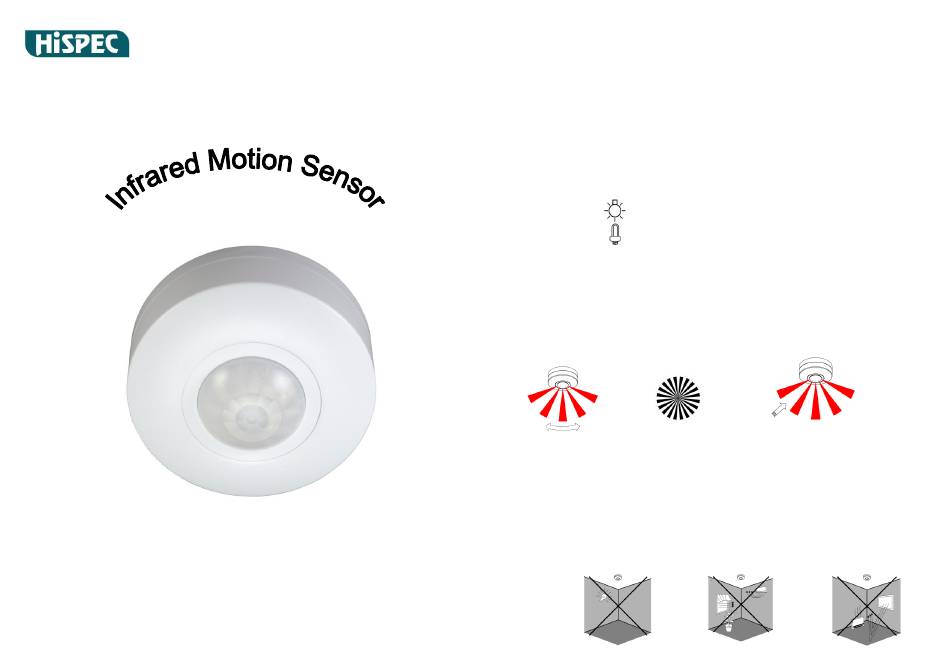

Welcome to the Hispec HSODS infrared motion sensor!
The product has a high sensitive detector and integrated circuit. It utilizes the infrared energy
from a person as the control-signal source and it starts to load when one enters detection field. It
can identify day and night automatically. It is easy to install.

SPECIFICATION:

Power Source: 220-240V/AC
Power Frequency: 50/60Hz
Ambient Light: <3-2000LUX (adjustable)
Time Delay: Min.10sec±3sec
Max.15min±2min
Rated Load: Max.1200W
300W

FUNCTION:

➢
Can identify day and night: The consumer can adjust working state in different ambient light.
It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can
work in the ambient light less than 3LUX when it is adjusted on the "3" position (min). As for
the adjustment pattern, please refer to the testing pattern.
➢
Time-Delay is added continually: When it receives the second induction signals within the
first induction, it will restart to time from the moment.
Good sensitivity

INSTALLATION ADVICE:

As the detector responds to changes in temperature, avoid the following situations:
➢
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.
➢
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.
➢
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall
plants etc.
Detection Range: 360°
Detection Distance: 6m max(<24℃)
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 2.2-4m
Detection Moving Speed: 0.6-1.5m/s
Poor sensitivity
