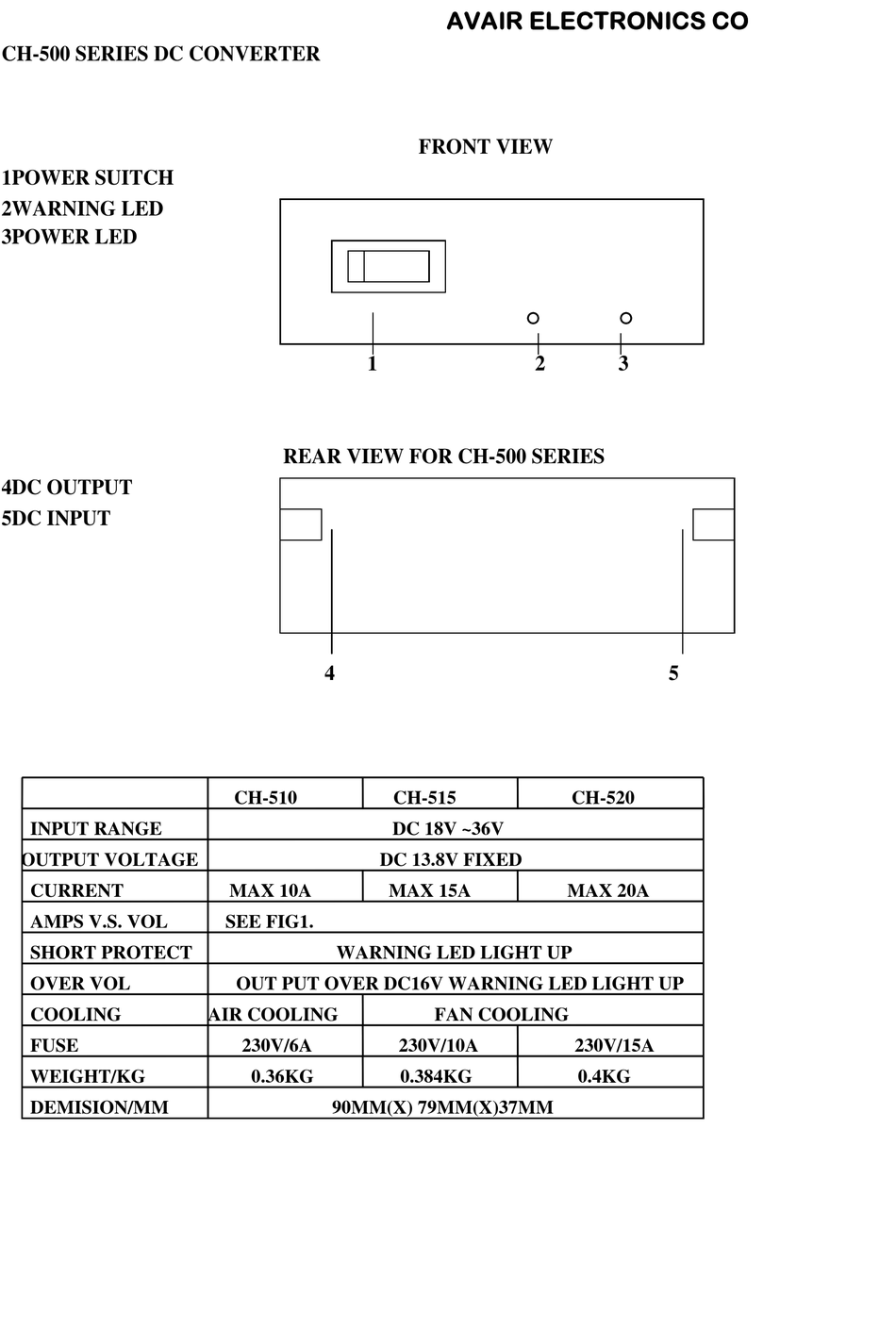

CH-500 SERIES DC CONVERTER
1POWER SUITCH
2WARNING LED
3POWER LED
4DC OUTPUT
5DC INPUT
INPUT RANGE
OUTPUT VOLTAGE
CURRENT
AMPS V.S. VOL
SHORT PROTECT
OVER VOL
COOLING
FUSE
WEIGHT/KG
DEMISION/MM
1
REAR VIEW FOR CH-500 SERIES
4
CH-510
MAX 10A
SEE FIG1.
WARNING LED LIGHT UP
OUT PUT OVER DC16V WARNING LED LIGHT UP
AIR COOLING
230V/6A
0.36KG
90MM(X) 79MM(X)37MM
AVAIR ELECTRONICS CO
FRONT VIEW
2
CH-515
DC 18V ~36V
DC 13.8V FIXED
MAX 15A
FAN COOLING
230V/10A
0.384KG
3
5
CH-520
MAX 20A
230V/15A
0.4KG
Advertisement
Summary of Contents for AVAIR CH-500 Series
- Page 1 AVAIR ELECTRONICS CO CH-500 SERIES DC CONVERTER FRONT VIEW 1POWER SUITCH 2WARNING LED 3POWER LED REAR VIEW FOR CH-500 SERIES 4DC OUTPUT 5DC INPUT CH-510 CH-515 CH-520 INPUT RANGE DC 18V ~36V OUTPUT VOLTAGE DC 13.8V FIXED CURRENT MAX 10A...
- Page 2 2.THE REAR DC OUTPUT MAX AMP IS 20A. 3.PLUG IN THE CONNECTOR TO DC INPUT BEFORE TURN ON THE POWER FROM BATTERY OR WILL DAMAGER THE TERMINAL. AVAIR ELECTRONICS CO., No.88 San-Toe Rd. Sec.1 Kaohsiung Taiwan Tel: +886-7-7519135.7161127 Fax: +886-7-7512008, 7229066 E-Mail: sales@avair.biz...
