- Page 1 8845-000 Quickstart Guide Last Updated: March 2022...
-
Page 2: Table Of Contents
In the box What you'll need Contents Installation Configuration Testing Regulatory Support Safetrust Inc. | safetrust.com sales@safetrust.com... -
Page 3: In The Box
In the box Safetrust Inc. | safetrust.com sales@safetrust.com... - Page 4 Option 2: Secures the top and bottom casing together and bottom casing together Sheet metal screw Nylon wall plugs SCR PTP, 2X6MM BLUE, ZINC CR3 Used to brace the For mounting to wall screws inside the wall Safetrust Inc. | safetrust.com sales@safetrust.com...
-
Page 5: What You'll Need
What you'll need Safetrust Inc. | safetrust.com sales@safetrust.com... - Page 6 A working internet connection Cable, 5-12 conductor (Wiegand), 4 conductor Twisted Pair Over-All Shield and UL approved, Belden3107A or equivalent (OSDP) Linear DC power supply Metal or plastic junction box Drill with various bits for mounting hardware Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 7 Installation Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 8 For a wall mounted installation, begin by pre-drilling your holes and insert the nylon screw plugs provided to support the weight of the reader. Once secured to the wall, you can fix the black plate to the wall using the screws (SCR PTP, 2X6MM BLUE, ZINC CR3) provided. Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 9 Green LED Orange Wiegand D0/Data Green Wiegand D1/Clock/F2F White 12VDC OSDP (RS-485A) Wiegand D0 Aqua OSDP (RS-485B) Wiegand D1 Pink Beeper Yellow The next step is to connect the wires as per the wiring table above. Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 10 Once the back plate has been fitted and the wiring is complete, the top casing can be inserted onto the bottom casing like shown above. Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 11 Complete the hardware installation by fixing either the snake eye screw (SMF #6- 32X5/16" SS) or a Phillips screw (SMF #6-32X5/16" SS) to bottom casing. Safetrust Inc. | safetrust.com sales@safetrust.com...
-
Page 12: Configuration
Configuration Safetrust Inc. | safetrust.com sales@safetrust.com... - Page 13 Open the Safetrust Wallet APP and select Manage Sensor tab. Make sure your system admin has set you up with this role. Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 14 With the Admin Installer tab open from the App, bring the phone in range of the IoT Sensor and once visible from the App, highlight and select “Configure”. Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 15 • Specify the Type of access from the dropdown (eg. Door, Gate etc.) • Assign a short Name and Description using alphanumeric characters. • Choose an Output for the sensor (the default is set to Wiegand). Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 16 When the IoT Sensor information is saved successfully to Credential Manager and assigned to the Identity System, the new description will appear in the Manage Sensor tab with a unique serial number assigned. Safetrust Inc. | safetrust.com sales@safetrust.com...
-
Page 17: Testing
Testing Safetrust Inc. | safetrust.com sales@safetrust.com... - Page 18 Access with cards Status LED Solid red Indicates idle mode Flashing red Powering up Solid green Success Flashing green Credential is read and access is granted LED Ring Safetrust Inc. | safetrust.com sales@safetrust.com...
- Page 19 Access with mobile Status LED Solid red Indicates idle mode Flashing red Powering up Solid Blue Success Flashing Blue Credential is read and access is granted LED Ring Safetrust Inc. | safetrust.com sales@safetrust.com...
-
Page 20: Regulatory
Regulatory Information Safetrust Inc. | safetrust.com sales@safetrust.com... - Page 21 (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CE Marking: Safetrust hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
-
Page 22: Support

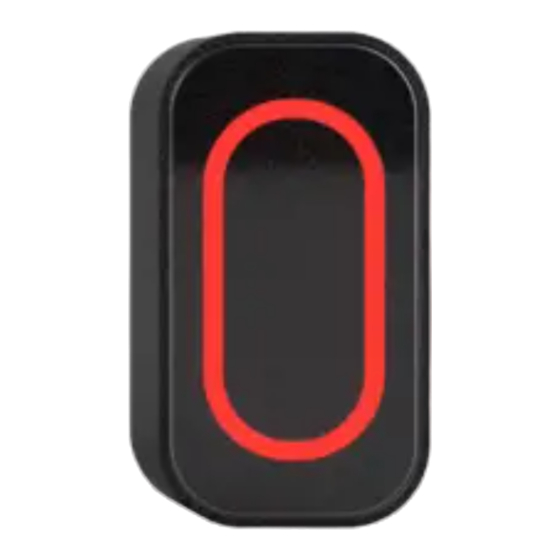

Thank purchasing Safetrust IoT Sensor Mini Mullion. Support If for any reason you need assistance with your installation, please contact your local Sales representative . Sincerely - The Safetrust Team Safetrust Inc. | safetrust.com sales@safetrust.com... - Page 23 www.safetrust.com/support...
