SubC Imaging MantaRay User Manual

Parallel
Hide thumbs

Advertisement

Quick Links

Download this manual

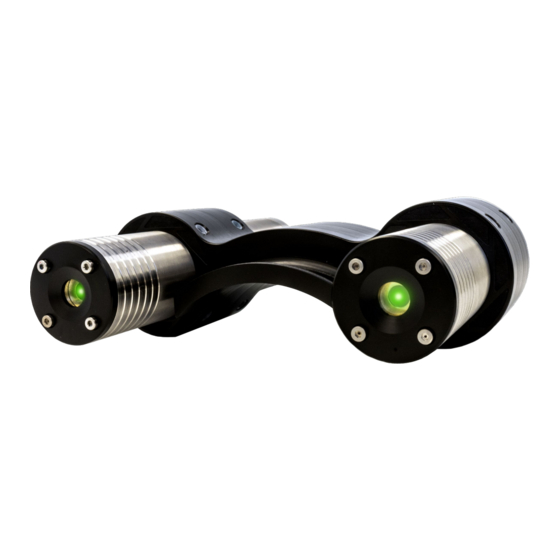

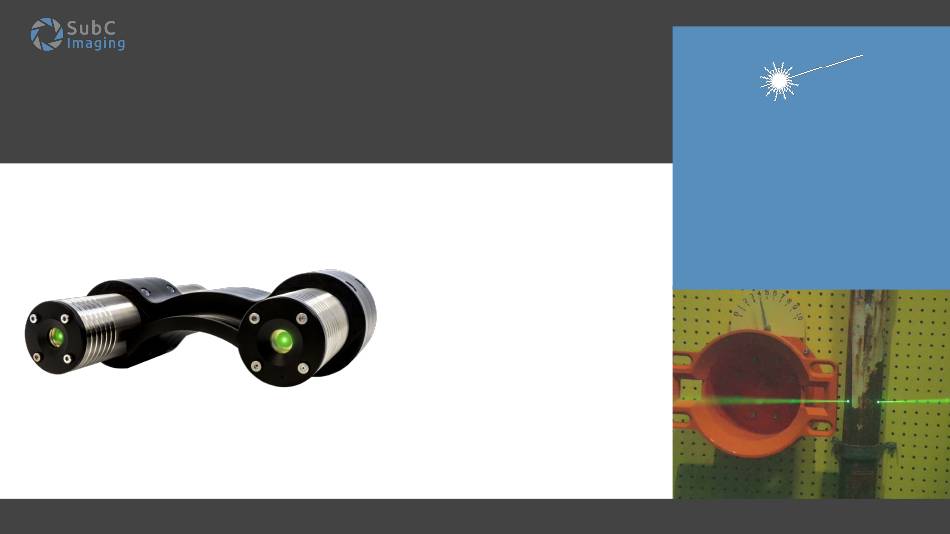

MantaRay Parallel Lasers
User Manual
Contact
support@subcimaging.com
Version 3.0
Key Features
for customer support
2022-04-06
10cm parallel, calibrated and
●
accurate to 5m
Simple attachment to camera
●
520nm wavelength
●
Designed for precision applications
●
6000m, Titanium and Sapphire
●
Can operate as a stand-alone
●
product with TTL enable
Class 3R lasers
●
Harshest Conditions.
Clearest Images.
The MantaRay Parallel Lasers is used
to identify the distance and scale of
underwater objects by projecting two
parallel beams that appear as green
dots in images.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MantaRay and is the answer not in the manual?

Questions and answers

Summary of Contents for SubC Imaging MantaRay

  • Page 1 MantaRay Parallel Lasers Harshest Conditions. User Manual Version 3.0 2022-04-06 Clearest Images. The MantaRay Parallel Lasers is used to identify the distance and scale of Key Features underwater objects by projecting two 10cm parallel, calibrated and ● parallel beams that appear as green accurate to 5m dots in images.
  • Page 2 TW: ADR Support PM: CC Engineered in Canada +1 (709) 702-0395 support@subcimaging.com SubC Control Ltd www.subcimaging.com 327 Memorial Drive Clarenville, NL, Canada, A5A 1R8 Installing TeamViewer for remote support Ensure the LAN functionality in TeamViewer is enabled (go to Extras > Options > General > Incoming LAN connections).

  • Page 3: Laser Precautions

    There is potential hazard of eye or skin exposure to laser radiation if safety instructions are not followed. Warranty will be voided if the unit is modified in any way or the protective housing is removed. SubC Imaging will not be held responsible for any changes in laser classification after setup of the unit.
  • Page 4 TW: ADR Laser Classification Information Updated: Mech: BL 2022-02-17 PM: CC This laser product is designated as Class 3R during all procedures of operation. Class 3R Radiation in this class is considered low risk but potentially hazardous. The class limit for 3R is 5x the applicable class limit for Class 2 (for visible radiation).
  • Page 5 TW: ADR Laser Labeling Information Updated: Mech: BL 2021-11-26 PM: CC Please refer to the diagram below to locate the laser labels per IEC 60825-1:2014...
  • Page 6 TW: ADR Laser Servicing and Maintenance Updated: Mech: BL 2021-11-26 PM: CC Servicing Under NO circumstances should the laser ● product be opened by the customer or any 3rd parties. The warranty will be voided if the unit is modified or the protective housing is removed. The laser product MUST be returned to SubC ●...
  • Page 7 TW: ADR Subsea equipment precautions and maintenance Updated: Mech: BL 2022-02-14 PM: CC Please read this manual carefully before setting up and using your unit. SubC disclaims all risks and liabilities related to your failure to follow or adhere to any of the below instructions or advisories. The electronic version of this document is the controlled copy. Therefore, all printed versions of this document are uncontrolled.
  • Page 8 TW: ADR O-Ring Lubricant Mech: BL PM: CC Best practices for assembling your system Greasing the Connector/Dummy Plug (ABOVE WATER - DRY MATE ONLY) Connectors must be greased with Molykote 44 Medium (or equivalent) before every mating. Check the MSDS for your type of o-ring lubricant before use.

  • Page 9: Specifications

    Mech: BL Specifications Updated: PM: CC 2022-02-17...
  • Page 10 PM: CC MantaRay-Ti-100-2-P-2 Updated: Electrical: AC Production: JMH 2022-02-14 Mechanical: BL...

  • Page 11: Required Components

    MCIL5 y-splice cable Setup Steps (Standalone) Plug MCIL5 y-splice cable into the MantaRay modules. Apply 15 - 32.5V DC to MCIL5F cable pins for GND and power. Provide 5 - 30V DC to pin 3 on the bulkhead to turn ON the laser.

  • Page 12: Shipping Dimensions

    TW: ADR MantaRay Packaging and Shipping Updated: PM: CC Mechanical: BL 2022-04-07 Shipping Dimensions Packaging Shipping Weight 7 lbs Carrying case S3 6510 Shipping Dimensions 12” (L) x 9” (W) x 6” (H) MCIL-5 Y-splice cable MantaRay USA FDA Declaration If shipping to the US, please use the following information to fill out...
  • Page 13 CONTACT SUBC IMAGING As leaders in our field, our goal is to provide complete imaging solutions to the subsea professionals. Our first step is always a simple conversation about the nature of your project and how our solutions can help you achieve success.
