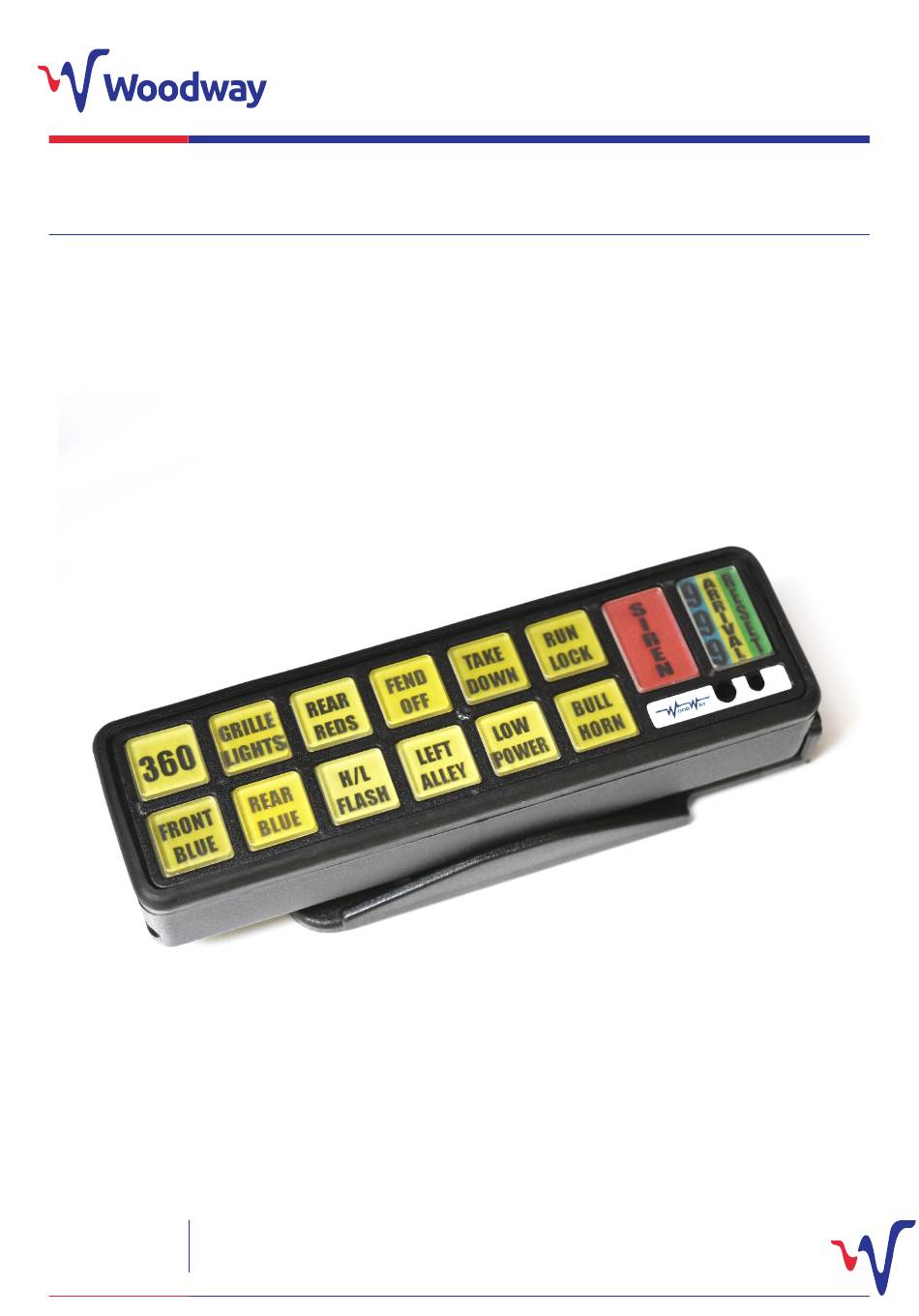

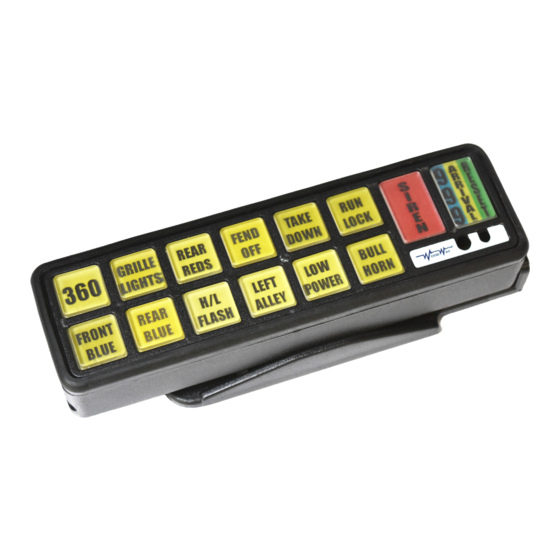

- Page 1 I N S T A L L A T I O N G U I D E Opti-Din Handset Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com...
- Page 2 Fuse ratings are changed to suit specific applications. The proximity of certain radio equipment may interfere with Opti-Din data transmission. To reduce this possibility, Opti-Din and radio equipment wiring should always be kept well apart and should not, under any circumstances, be harnessed or fastened together.
- Page 3 Woodway Engineering equipment. If the unit is used with any other system the warranty will be void. The Opti-Din keypad can be used either as a hand held unit or fitted into a standard din style dashboard casing. The Opti-Din Control System provides a flexible and intuitive control interface between the driver and the vehicle’s equipment.
-
Page 4: System Operation
Power Down and Wake Up Modes The Keypad incorporates a public address microphone for use with a Woodway siren with PA capability and is made active via a PTT (Press-To-Talk) switch located on the right hand side of the keypad. When the switch is operated it will mute any active siren tones. -
Page 5: Keypad Programming
N I I parts of the system to be set-up. 999 & ARRIVAL SELECTIONS N I I V I I Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com... - Page 6 999 or arrival modes are Microphone Volume set at 50%. programmed. External 999 and Highways modes are disabled. Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com...
-
Page 7: Troubleshooting
For the ‘360’ to function correctly when connected When selecting ‘360’ the light bar is not Switches are incorrectly to a Woodway light bar only SW1 can be used as functioning. set. 360 and the ‘Special Strobe Function’ must be set. - Page 8 System Installation Wiring Diagrams System Wiring ARRIVAL RESET ZE2008 Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com I N S T A L L A T I O N G U I D E United Kingdom www.woodwayengineering.com...
- Page 9 Plug P3 Wire Colour Function White/Orange Hands Free For connections see siren installation document Socket SK4 Wire Colour Function From Opti-Din output White/Blue module output 13 White/Black Mic - PA connection from Opti-Din output White/Violet module Plug P2 Wire Colour...
- Page 10 Notes Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com I N S T A L L A T I O N G U I D E United Kingdom www.woodwayengineering.com...
- Page 11 Notes Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com I N S T A L L A T I O N G U I D E United Kingdom www.woodwayengineering.com...
- Page 12 Made in the UK ISO 9001:2015 Certified 2 Year Warranty Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com United Kingdom www.woodwayengineering.com...
