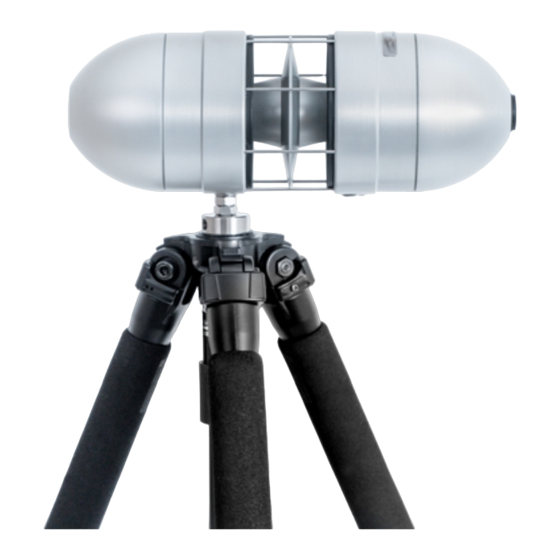

Monopole sound source
Hide thumbs

Advertisement

Quick Links

Download this manual
INFRA-QSOURCES
User Instruction
Qohm2 Monopole sound source
Updated: 181115 - batch A
By:
LMB, PJGL, Qsources BVBA
Content:
1.
3.
5. Prevent damage
6. Specifications and conformity declaration
8.
Shipment instruction
Please always use ear protection when working with this product.
www.qsources.be
info@qsources.be
Ketelwinning 38 B-3290 Diest Belgium
Copyright Qsources BVBA

Advertisement

loading

Summary of Contents for QSOURCES Qohm2

  • Page 1: Table Of Contents

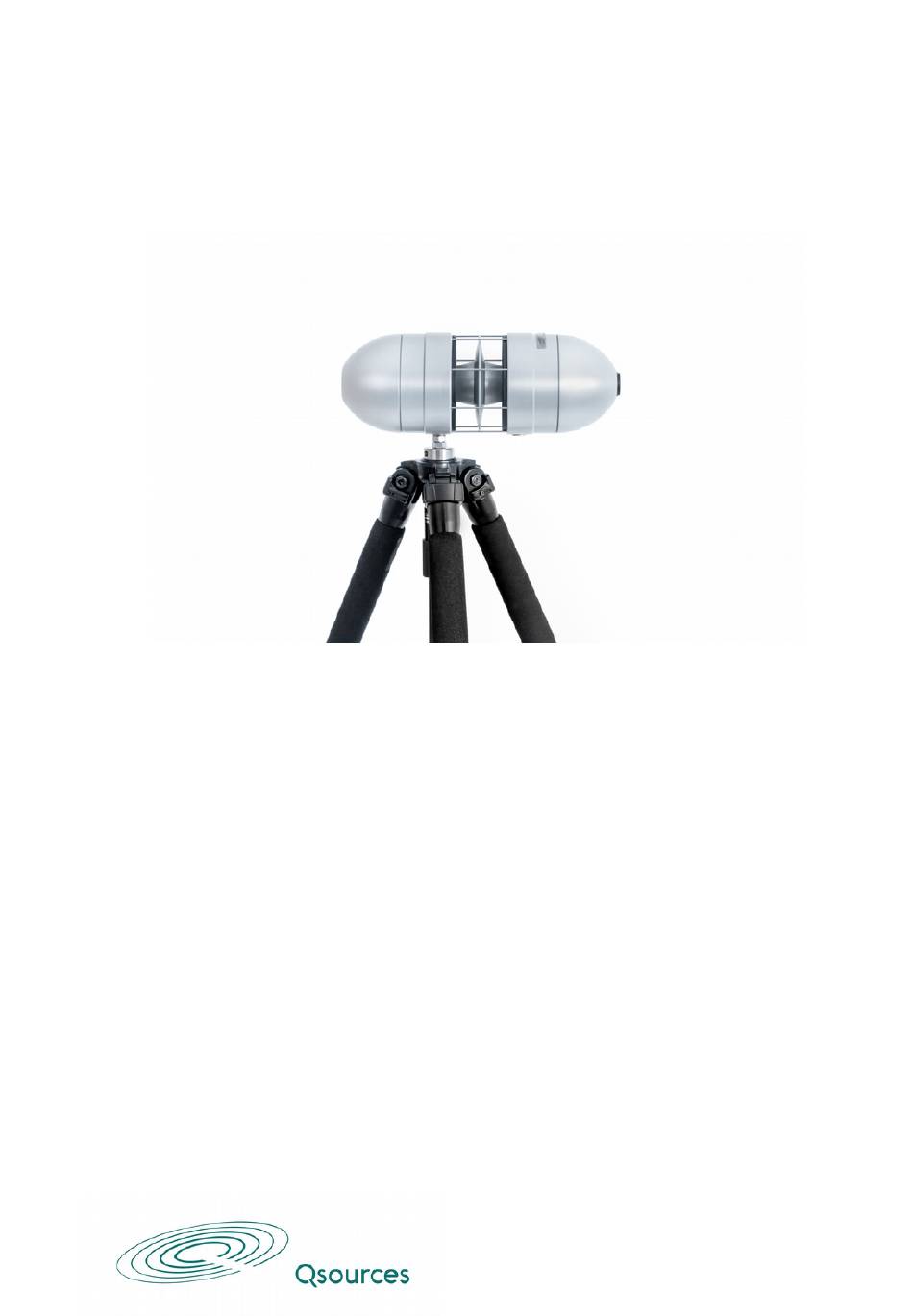

    INFRA-QSOURCES User Instruction Qohm2 Monopole sound source Updated: 181115 – batch A LMB, PJGL, Qsources BVBA Content: Intended application 2. Placing the source on a stand or tripod Connections and powering 4. Warranty and liability 5. Prevent damage 6. Specifications and conformity declaration 7.

  • Page 2: Intended Application

    2. Placing the source on a tripod or other stand Qohm2 is provided with a specifically adjusted light weight tripod for secure mounting of the sound source. Two sockets with M8 thread are available. These will fit to any M8 bolt or thread-end like the provided tread-ends.
  • Page 3 -powder. Still, If metal objects have accumulated on the mag- net, they should be removed as soon as possible. This can be done with adhesive tape or putty/clay as shown in the photo. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...

  • Page 4: Warranty And Liability

    **When driven with Qam generated low crest-factor pink noise at 22 Celsius ambient temperature or lower. *** For maximum performance a dedicated power amplifier type Qam or Qca is available from Infra-Qsources. The source output spectrum for white and pink noise in free field condition are shown below.
  • Page 5 Declaration of conformity roduct: Infra Qsources omni-directional mid frequency sound source Model: Qohm2 Hereby is certified that the above mentioned product complies with the following standards: ISO 3382 ISO 140-3 ISO 140-4 ISO 16283-1 Responsible for this declaration is the producer...

  • Page 6: Questions And Answers

    (This is a fairly normal procedure) This will take away 1 or 2 dB and it limits the measurement time before thermam protcetion activates to 1/3 of normal. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
  • Page 7 Never continue to use the source if in broken condition. It will aggravate the damage and in- crease the repair costs significantly, and can cause exclusion from warranty. When using an external input signal, could I damage the Qohm2 source or the Qam/Qca am- plifier? The Qam/Qca amplifier input will withstand any type of normal signal coming from any measurement device or computer on the headphone outlet.
  • Page 8 So, in such a case only one channel should be connected to the input speakon socket of the Qohm2, and only the output power on this one channel will contribute. Leaving the other channels unused (open) will not harm a normal amplifier.
  • Page 9 Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
  • Page 10 INFRA-QSOURCES Shipment protection instruction Infra-Qsources sound sources & equipment Date: 140619 PJGL Carrier personnel does not have the luxury, nor attitude, to be careful even if boxes are clearly marked “fragile” www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
  • Page 11 Take pictures of the equip- ment when successively protecting from the visible equipment till the ready and marked box. Make sure to have a picture of the shock watch label too. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
  • Page 12 Make sure to have a picture of the shock-watch label too. It is actually more difficult to protect the equipement in a flight-case because the hard outer shell can cause high peak accelaration levels on the equipment inside. www.qsources.be info@qsources.be Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
  • Page 13 Closed cell polythene foams are suitable for flight cases and for carton box shipment. The material is available in various colours and cell sizes. Bubble foil is suitable for single or limited cycle use in combination with carton boxes. Thank you for helping us protect the Infra-Qsources equipment. www.qsources.be info@qsources.be...
  • Page 14 Ketelwinning 38 B-3290 Diest Belgium Copyright Qsources BVBA...
