1.0 Installation and Startup Guide

Install Environment
Where

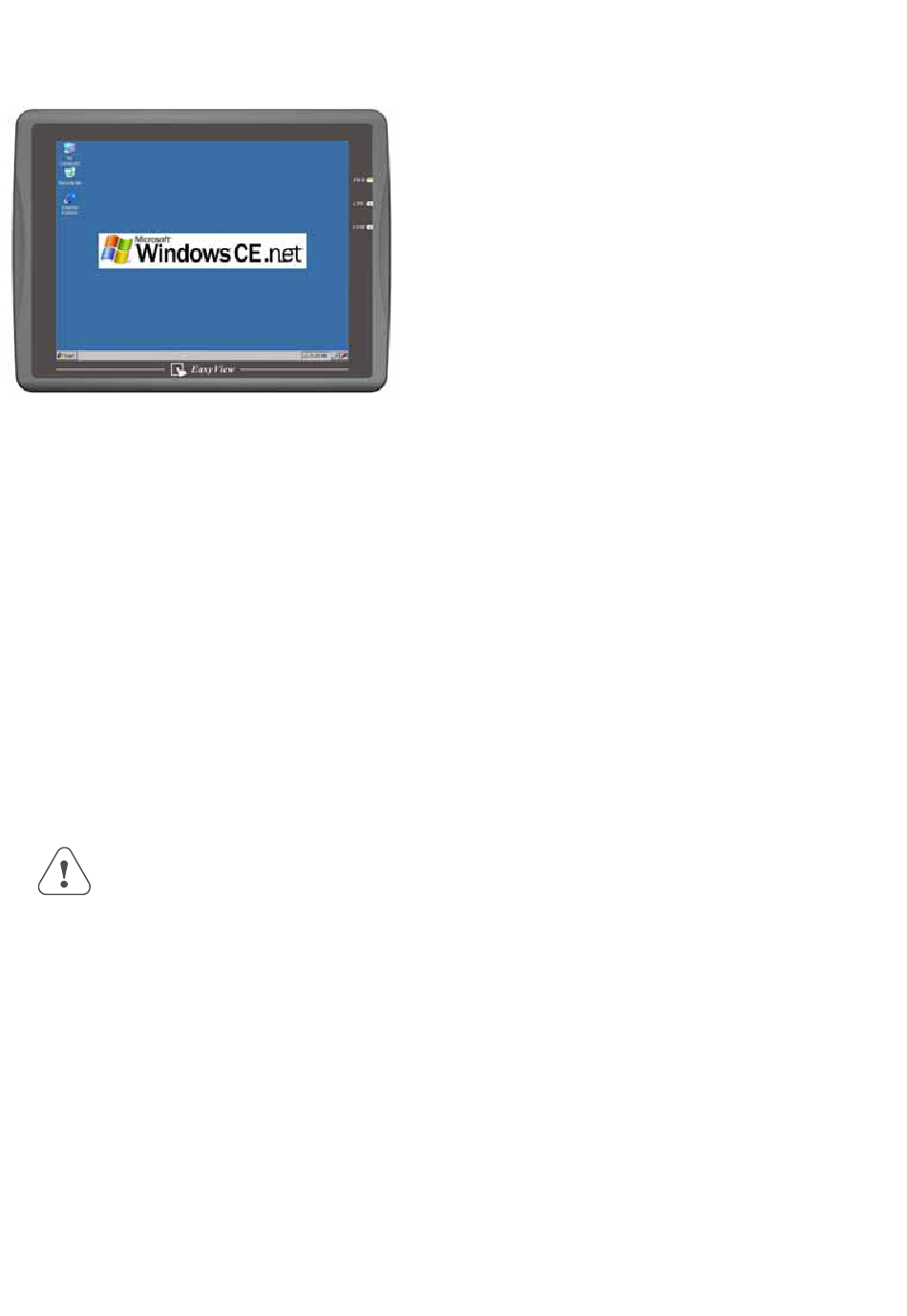

The MT-600 Series is designed for industrial. The temperature range of operating is
Used
from 32 to 113 °F (0 to 45 °C) , as majority of industrial environments. It may not be
suitable for using in certain outdoor applications. Please consult the factory for
advised usage in outdoor applications.
NEMA
The MT-600 Series front bezel is NEMA 4 rated. When installed properly in a NEMA
Rating
4 panel, the NEMA 4 rating of the panel will not be compromised. This means that
fluids will not enter the panel during wash downs.
Electrical
The MT-600 Series has been tested to conform to European CE requirements. This
Environment
means that the circuitry is designed to resist the effects of electrical noise. This does
not guarantee noise immunity in severe cases. Proper wire routing and grounding
will insure proper operation.
Mechanical
Avoid installing units in environments where severe mechanical vibration or shocks
Environment
are present.

2.0 Installation Instructions

2.1 Mounting Instructions

2.1.1 Location Considerations

Care should be taken when locating equipment behind the unit to ensure that AC power wiring, PLC
output modules, contactors, starters and relays, and any other source of electrical interference are located
away from the back of the unit.
Particular note should be taken to the position of variable speed drives and switching power supplies.
Their input and load cables should be screened to a central star earth point.
MT-600 series
1
MT-612 V2
Installation Instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-612 and is the answer not in the manual?

Questions and answers

Summary of Contents for weintek MT-612

  • Page 1 MT-600 series MT-612 V2 Installation Instruction 1.0 Installation and Startup Guide Install Environment Where The MT-600 Series is designed for industrial. The temperature range of operating is Used from 32 to 113 °F (0 to 45 °C) , as majority of industrial environments. It may not be suitable for using in certain outdoor applications.
  • Page 2 2.1.2 Making a NEMA-4 Mounting Panel The unit can be mounted into panels with a depth of 4”(105mm). It is recommended that Details the unit be mounted on the front panel of a steel enclosure, through an appropriate opening*. Allow a clearance of 1”(25mm) around the sides of the unit for mounting hardware.
  • Page 3 Caution Do not power the MT-600 and inductive DC loads, or input circuitry to the Supply Voltage controller, with the same power supply. Note: The 24 VDC output from Condition some controllers may not have enough current to power the MT-600. Caution Wire lengths should be minimized (Maximum 1600’...
  • Page 4 apply to installation of solid-state programmable control devices. In addition, these precautions conform to the guidelines for installation of Controllers as recommended in the NEMA ICS 3-304 Control Standards. Programming To conform with ICS Safety Recommendations, checks should be placed Considerations in the controller to ensure that all writable registers that control critical parts of plant or machinery have limit checks built into the program, with...
  • Page 5 2.3.2 Connector COM1[RS485] , COM3[RS485] and COM3[RS232] The 9 Pin, Female, SUB-D, COM1 [RS-485] , COM3 [RS-485] and COM3 [RS-232] Port on the back of the unit is the RS-232 and RS485/422 communications port for connecting to a controller. Connection Pin Designations Pin assignment of the 9 Pin, Female, SUB-D COM1 [RS-485], COM3 [RS-485] and COM3 [RS-232] Port...
  • Page 6 2.3.5 Dip Switch SW1 SW2 SW3 SW4 Mode OFF OFF OFF Touch Screen Calibrate mode OFF ON OFF OFF Reserve OFF OFF ON OFF Boot Loader mode OFF OFF OFF ON Reserve OFF OFF OFF OFF Normal Touch Screen Calibrate mode: In this mode when you power on the MT600, the screen will display a “+”...
  • Page 7 3.0 Specifications MT612TV2 Hardware Specification Display 12.1" TFT Brightness 400 cd/m Color 65536 colors Contrast Ratio 500:1 Resolution (WxH dots) 800 x 600 Back light CCFLx2 CCFL life time 50,000 hr. min. Touch panel 4 wires resistive type Touch Accuracy Surface Hardness COM1 (RS-232/RS-485 2W/4W), COM2(RS232), COM3(RS-232/RS-485 2W) I/O port...
  • Page 8 4.0 Dimensions of MT-612 Cutout dimensions: MT-612: FUSE 1A Reset 305mm [12.01"] W x 231mm [9.09"] H DIP SW Panel-mounting clamp slots, 9 places Compact Flash slot Fuse Com1 RS485, Com3 RS485, Com3 RS232 Power connector Com1 RS232, Com2 RS232...
