Summary of Contents for Qanon VDA14

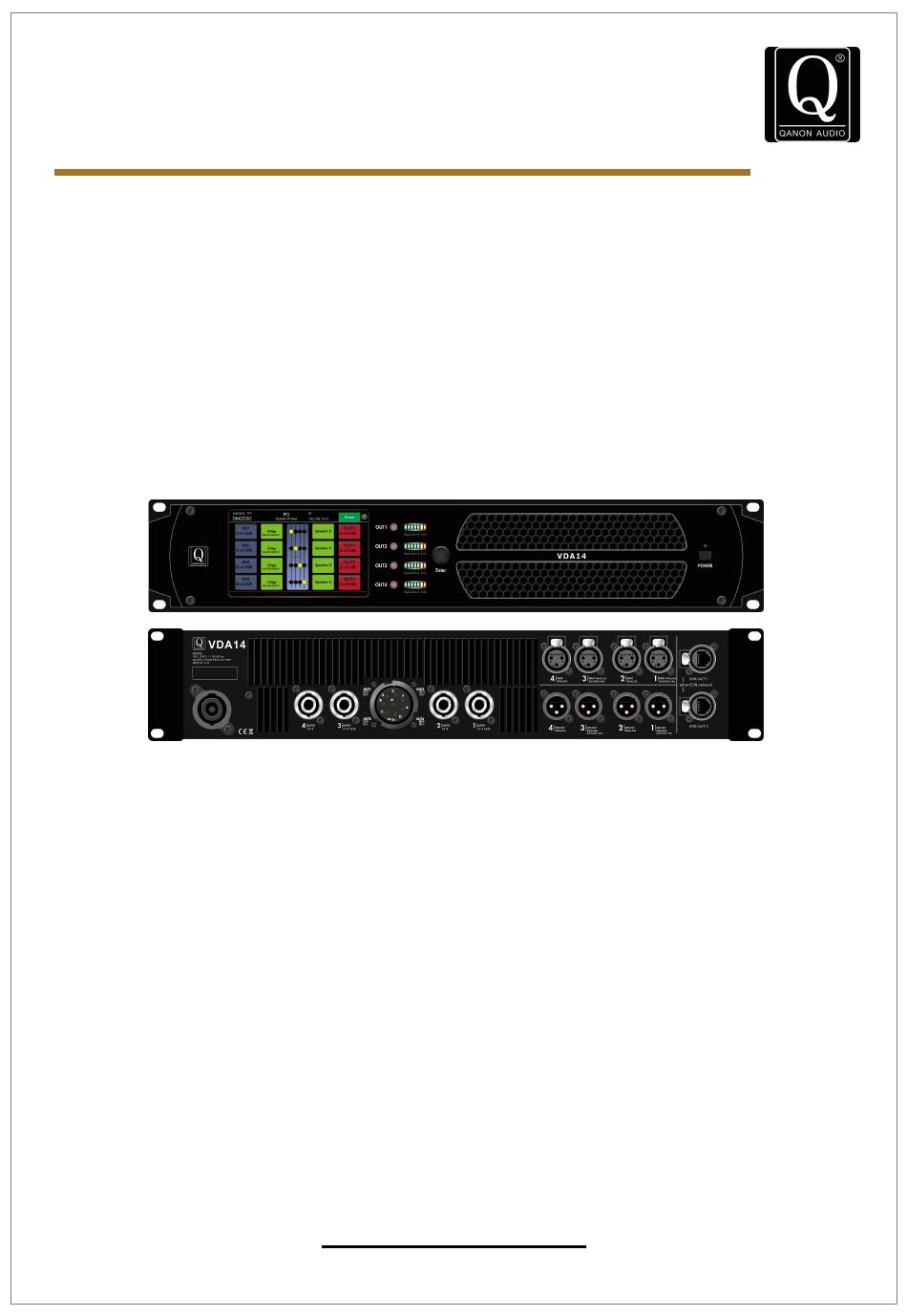

- Page 1 VDA14 AMPLIFIED CONTROLLER www.qanon-audio.com - 1 -...
- Page 2 Only connect the product to an AC power outlet rated 100-240 V, 50-60 Hz, with the following current values: 100-120 V: 30 A 200-240 V: 16 A WARNING: The product is of CLASS 1 construction and shall be connected to a mains socket outlet with a protective connection to earth. www.qanon-audio.com - 2 -...
- Page 3 Do not connect the speaker outputs to any other voltage source, such as a battery, power mains, or power supply, regardless of whether the amplified controller is turned on or off. Never incorporate equipment or accessories not approved by QANON AUDIO. Read all the related PRODUCT INFORMATION documents shipped with the products before exploiting the system.
- Page 4 Importer is required to fit a country specific plug, if necessary. Each QANON AUDIO product is tested and inspected before leaving the factory and should arrive in perfect condition. After the careful opening of the shipping carton, check for any noticeable damage. If so, notify the shipping company or the distributor immediately.
-
Page 5: Technical Specifications
Technical Specifications Internal components The core of the VDA14 is a SHARC DSP engine driving four channels of amplification from four inputs. The VDA18 also features a flash memory for preset storage and management, high performance A/D-D/A converters and AES/EBU inputs for audio signals, a universal SMPS (Switched Mode Power Supply) with PFC (Power Factor Correction), a front panel user interface, and a 1 Gb/s Ethernet dual port. -
Page 6: Network Control
Thanks to its high speed data transfer protocol of 1 Gbit/s, up to 254 units can be controlled and Controller monitored in real-time by the VDA software. Multiple network topologies are quickly and easily configurable for full flexibility in the required system architecture. VDA Controller VDA Controller www.qanon-audio.com - 6 -... - Page 7 General Amplification class Class D Output power CEA-2006 / 490A (1% THD, 1 4 x 1400 W RMS (8 Ω) kHz, all channels driven) 4 x 2800 W RMS (4 Ω) 4 x 3200 W RMS (2.7 Ω) 4 x 3000 W RMS (2 Ω) Digital Signal Processor (DSP) 2 x SHARC 32-bit, oating point, 96 kHz sampling rate Frequency response 20 Hz - 20 kHz...
- Page 8 Temperature Cooling system fans with temperature-controlled speed Interface and connections For each output: 5 x LEDs for mute, load, signal, levels and limit/clip Indicators information Interface 5" TFT-Touch screen Output connectors 4 Neutrik® NL4 1 PA-COM® 8-Ponit etherNet 2 x 1 Gb/s RJ45 etherCON ® Connectors Input 4 Neutrik®...
- Page 9 Physical data Dimensions（W x H x D） 483 x 88 x 465 mm Finish Black Protection rating IP2x Weight 17kg / 37.5Ib VDA14 Dimensions CAD 483mm [19.03''] 465mm [18.32''] www.qanon-audio.com - 9 -...
- Page 10 QANON AUDIO ShiXin Road number 171-1,Xintang Town, Zengcheng Zone,Guangzhou city of China Tel ： +86 020-82707301 E-mail:qanonaudio@163.com Web ： www.qanon-audio.com - 10 -...
