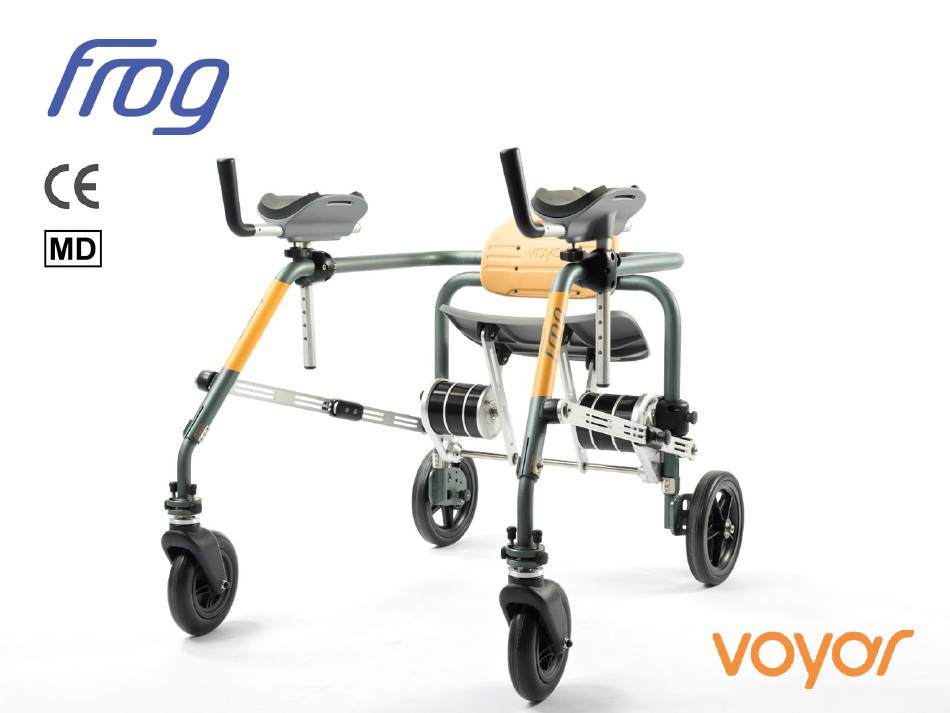

- Page 1 User Manual FROG M1-X FROG M2-X FROG M3-X FROG M4-X FROG L1-X FROG L2-X FROG L3-X FROG L4-X User Manual DP1601-281H_Eng_2021.05...
- Page 2 (Intentionally left empty) User Manual DP1601-281H_Eng_2021.10...
- Page 3 Dear Customer, Thank you very much for the trust extended in purchasing the Voyar FROG. Please read the user manual prior to first use of the equipment and follow its instructions. Could you take care that the user manual remains with the product.
- Page 4 (Intentionally left empty) User Manual DP1601-281H_Eng_2021.10...
-
Page 5: Table Of Contents
Contents Page General Information 1.1. Product Line 1.2. Intended Use 1.3. Safety Information 1.4. Overview of components 1.5. Size Adjustments 2. Operation 2.1. Therapy Application 2.2. Unfolding the walker 12 - 13 2.3. Folding the Walker 14 - 15 2.4. Attaching Arm Supports 16 - 17 2.5. -
Page 6: General Information
Frame size With seat and With seat With No seat and armrests only armrests only armrests Medium FROG M1-X FROG M2-X FROG M3-X FROG M4-X Large FROG L1-X FROG L2-X FROG L3-X FROG L4-X... -
Page 7: Intended Use
1.2. Intended Use The FROG gait trainer provides gait and balance support in patients with walking difficulties and can be used in the rehabilitation of gait. It has weight bearing handles and arm rests and a foldable seat as resting position. It can be used indoors in hospitals, therapy centers and ambulatory activities at home. -
Page 8: Safety Information
1.3. Safety Information • The walker should be used indoors and on fairly firm and level ground • Maximum weight of the user needs to be observed • Instructions for use should be read carefully before first use. Instructions for use should be kept and remain with the product for future reference. -
Page 9: Overview Of Components
1.4. Overview of components Length & height & angle adjustable armrests Height adjustable Height & width & length seat adjustable frame Adjustable Folding frame force lift seat Telescopic height adjustment On/Off Antireverse and wheel lock Adjustable wheel swivel limiter... -
Page 10: Size Adjustments
1.5. Size Adjustments Dimensions for medium size (M) and large size (L) frames Adjustable armrest height: M: 62 to 86 cm L: 74 to 95 cm Adjustable frame height: M: 52 to 67 cm L: 67 to 76 cm Adjustable Seat height: M: 32 to 53 cm L: 49 to 64 cm Adjustable frame width M: 38 to 46 cm L: 49 to 57 cm... -
Page 11: Operation
2. Operation 2.1. Therapy Application FROG is used to teach children and adolescents who need additional support and stabilization of the upper body due to disorders of the nervous and muscular system to walk and move independently. The use of this walking aid during therapy should be supervised by a clinician. The suitability of the device depending on the degree of the condition should be assessed by a doctor or therapist and settings or adjustments made in an appropriate manner. -
Page 12: Unfolding The Walker
2.2. Unfolding the Walker The rear wheel of the walker should be supported on the ground to release the plunger lock. (DO NOT lift up the walker) 1. Pull out and disengage right plunger lock on frame. Note: There is no need to pull the left lock. Unlock... - Page 13 1. Pull back the rear frame against front wheels on the ground. 2. Once walker is upright, ensure plunger locks on both sides are ‘engaged’ and in locked positions. Caution: Please ensure locks are fully engaged before use.
-
Page 14: Folding The Walker
2.3. Folding the Walker 1. Pull out and disengage plungers lock on both sides of the links. 2. Holding on to both sides of lock and frame, slowly articulate the rear frame forward or front frame backwards. 3.Fold walker until right lock engages to lock folded position. - Page 15 4. Remove both armrests from their sockets (for models M1-X, M3-X, L1-X and L-3X with armrests; other models do not have armrest). 5. The walker is now secured and folded.
-
Page 16: Attaching Arm Supports
2.4.Attaching Arm Supports (for models M1-X, M3-X, L1-X and L-3X with armrests; other models do not have armrest). Each armrest needs to be on the correct side of the walker: • Take note of section of arm rest that should face outwards (see below circled in red) •... - Page 17 1. Locate the armrest shaft socket. 2. Pull out lock [1] and hold it in position. 3. Holding the aluminium shaft, engage the arm support into the hole. 4. At desired position, release lock ensuring pin has engaged with hole in the shaft. If not engaged, gently slide the shaft up or down until lock snaps in.
-
Page 18: Wheel Lock & Anti-Reverse
2.5. Wheel lock & Anti-reverse Each rear wheel has a anti-reverse rachet which can be disengaged: Anti-reverse Anti-reverse ratchet engaged. ratchet released. To release, flip tag To engage, flip tag towards the rear towards the front Each rear wheel can also be locked completely with a spring plunger (“parking brake”) Wheel lock Anti-reverse released. -
Page 19: Lift Seat
3. Lift seat (for models M1-X, M2-X, L1-X and L-2X with seat; other models do not have seats). 3.1. Seat Lifting Force Adjustment Lift force of the seat is controlled by mechanisms located on both the left and right below the seat. - Page 20 High lifting force Medium lifting force Line marks Low lifting force on ring force [A] controls the lifting acting on the user when in sitting position. The higher the lifting force, the easier it is to get up. [B] controls the transition force when the seat is in half elevated position.
- Page 21 Starting on one side, turn Knob [A] to adjust force desired lift force which acts when the seat is mostly lowered down; either to low (1), medium (2) or high (3). Repeat the same adjustments on the other side. Spring force should be adjusted equally on BOTH drum sides before use.
- Page 22 Starting on one side, turn Knob [B] to adjust force desired lift force which acts when the seat is half elevated; either to low (1), medium (2) or High (3). Repeat the same to the drum on the right. Spring force should be adjusted equally on both sides, and typically equally between A &...
-
Page 23: Size Adjustments
4. Size Adjustments 4.1. Seat Height Adjustment (for models M1-X, M2-X, L1-X and L-2X with seat; other models do not have seats). To adjust the Seat Height: 1. Pull the locks out and hold on both sides (left and right). 2. - Page 24 Pull the locks out on both sides (left and right). Lock is not fully engaged into the hole. Lock is fully engaged into the hole. Caution: Please ensure pins are fully engaged before use.
- Page 25 Sliding the seat assembly up or down after unlocking by grabbing at the black plastic slider part. low Seat Height Intermediate Seat Height...
-
Page 26: Forearm Support Adjustment
4.2. Forearm Support Adjustment (for models M1-X, M3-X, L1-X and L-3X with armrests; other models do not have armrest). Three knobs are used to adjust the Armrests: • Knob [1] controls the angle and length/extension of the handle. • Lock [2] controls the height of the whole forearm support. - Page 27 Handle Adjustment To adjust length and angle: 1. Loosen knob [1]. 2. Slide handhold forward or backward and rotate to desired position. Do not extend handles beyond limit mark.
- Page 28 Armrest height adjustment To adjust height: 1. Pull out lock [2] and hold it in position. 2. Slide post up or down to desired height. 3. Release lock back in, ensuring pin inside has engaged with the hole on the shaft. If not, gently slide the shaft up or down until pin engages.
-
Page 29: Front Wheel Swivel Limit Setting
4.3. Front Wheel Swivel Limit Setting Swivel limits can be independently adjusted for each individual wheel, and each side of the wheel (lock 1 & 2). Lock 1 Lock 2 • Position 1: 0° Swivel • Position 2: 30°Swivel • Position 3: 60°Swivel... - Page 30 To adjust limits: 1. Push down lock [1]. 2. Rotate pin and engage in desired position (1, 2, 3). 3. Release lock 1. Note: Ensure lock is fully engaged 4. Repeat with pin [2]. 5. Repeat with other wheel.
- Page 31 Example Swivel Configurations Left: 1 Right:1 Left: 2 Right:2 Left: 3 Right:3 Left: 2 Right:3 Left: 3 Right: 1...
- Page 32 To remove limits: 1. Unscrew the centering pin 2. Repeat on the other side Note: Please keep centering pins in case the limit locks should be reinstated at a later time The front casters can now swivel 360 degrees...
-
Page 33: Frame Size Adjustment
4.4. Frame Size Adjustment Note: Please ensure walker is unfolded , locked & upright, and placed on even ground/surface before adjusting width & height. -
Page 34: Frame Width Adjustment
4.5. Frame Width Adjustment An Allen key 2.5mm is required as tool for the frame width adjustment. 1. The frame clamp holds the forward half- frames of the walker together. Loosen the 12 screws (Allen key no. 3) just enough to be able to slide the frames (orange arrows);... -
Page 35: Frame Height Adjustment
4.6. Frame Height Adjustment An Allen key 4.0mm is required as tool for the frame height adjustment. A) Front wheels adjustment 1) Starting with one side, locate the clamp screw. With an Allen key, un-tighten it. 2) Remove the screw completely 3) Slide the wheel attachment inside the frame to the desired incremental position. - Page 36 A) Rear wheels adjustment 1) Starting with one side, locate the clamp screw. With an Allen key, un-tighten it. 2) Remove the screw completely 3) Slide the wheel attachment inside the frame to the desired incremental position. Check the screw holes line up. Re-insert the screw.
-
Page 37: Maintenance And Cleaning
5. Maintenance and Cleaning 5.1. Maintenance After sufficient cleaning, checking for function and defects at regular intervals (approx. 1 month). If damaged, the relevant parts must be replaced 1. Check the correct function and locking of the spring plungers on the seat adjustment (2), armrests (2), folding links (2), parking brakes on the rear wheels (2) and steering wheels (4), as well as the clamping screws for the handles on the armrests ( 2). -
Page 38: Cleaning
5.2. Cleaning Clean all surfaces and frames with a damp sponge or cloth using soapy water. If alcohol is required, these painted surfaces should be avoided: - Seat height fixtures - Armrest fixtures - Folding locks Remove coarse dirt from the wheel hubs. -
Page 39: Re-Use
5.3. Re-use The Voyar FROG is suitable for re-use. Before a handing over for re-use, the product should be serviced and checked as below. Ideally, this re-processing is carried out by specialist dealers. Depending on the intensity of use, a service life of 8 years can be expected (however, this does not apply to wheels, other wearing parts and soft moulded parts) 1. -
Page 40: Specifications
6. Specifications Total size Total size Height (without armrests) 55 - 60 cm Height (without armrests) 74 - 81 cm Width 52 - 60 cm Width 63 - 82 cm Length 76 - 87 cm Length 76 cm Adjustment ranges Adjustment ranges Frame height 46 - 52 cm... -
Page 41: Identification
7. Identification The product label is fixed under the seat. It shows the exact model and the maximum weight of the user. For models without a seat, it is attached to the rear frame, on the opposite side of the backrest The serial number is stamped on the rear frame close to the right rear wheel. - Page 42 (Intentionally left empty) User Manual DP1601-281H_Eng_2021.10...
- Page 43 (Intentionally left empty) User Manual DP1601-281H_Eng_2021.10...
- Page 44 XentiQ Partners Pte Ltd 35 Joo Koon Circle, 6 Floor Vicplas Bldg, Singapore 629110 MT Promedt Consulting GmbH Altenhofstrasse 80, 66386 St. Ingbert Germany www.voyarmobility.com...
