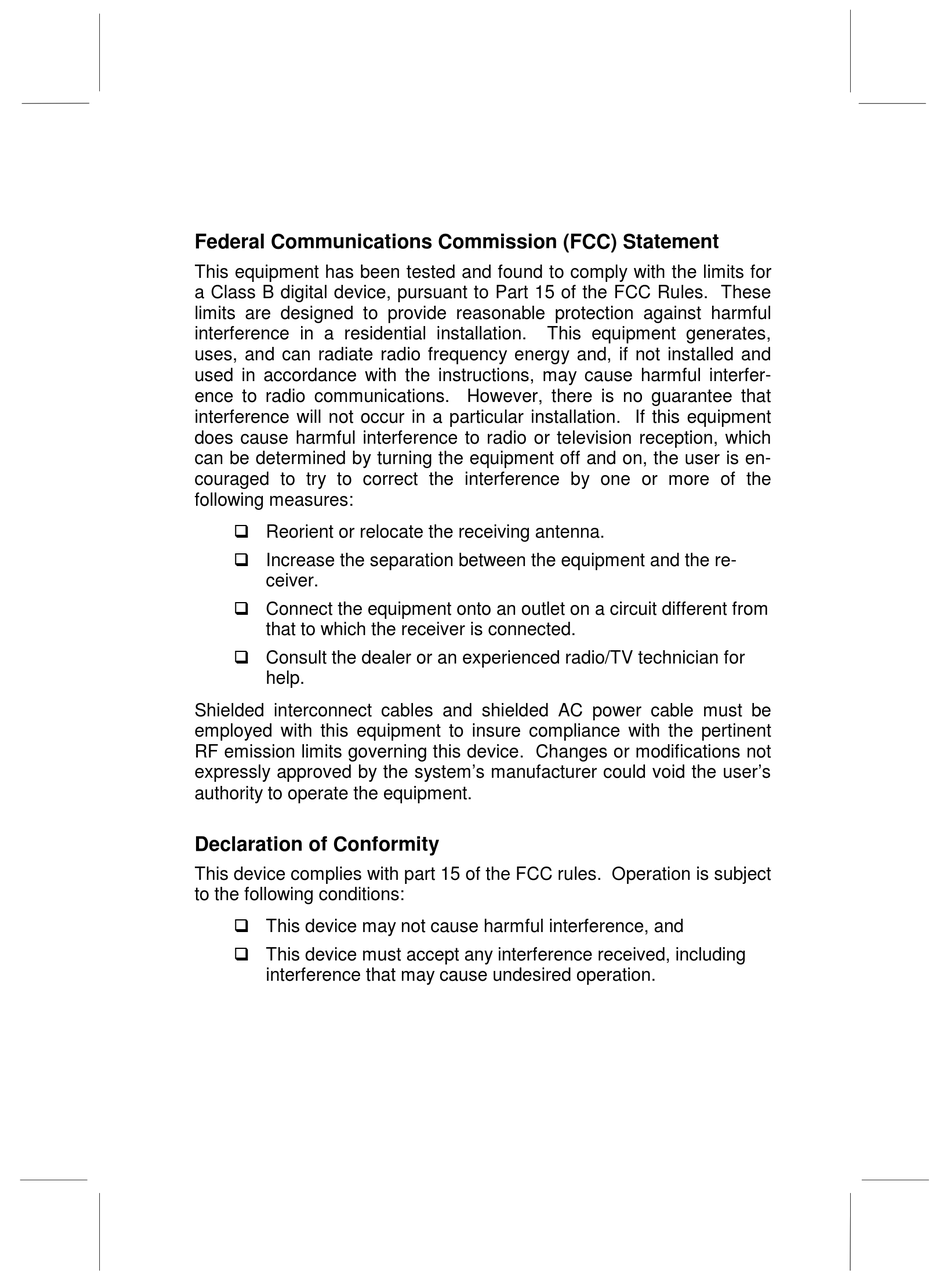

Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the
following measures:
!"Reorient or relocate the receiving antenna.
!"Increase the separation between the equipment and the re-
ceiver.
!"Connect the equipment onto an outlet on a circuit different from
that to which the receiver is connected.
!"Consult the dealer or an experienced radio/TV technician for
help.
Shielded interconnect cables and shielded AC power cable must be
employed with this equipment to insure compliance with the pertinent
RF emission limits governing this device. Changes or modifications not
expressly approved by the system's manufacturer could void the user's
authority to operate the equipment.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject
to the following conditions:
!"This device may not cause harmful interference, and
!"This device must accept any interference received, including
interference that may cause undesired operation.
This equipment generates,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPV4-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QUANTA CPV4-M

Summary of Contents for QUANTA CPV4-M

  • Page 1 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer. Disclaimer The information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    Introduction..................1 Using This Manual................1 Introduction....................1 Installing Hardware..................1 Using the Firmware ..................1 Checklist ....................2 CPV4-M/CPV4-MA Features and Benefits ......... 2 Processor Information.................2 Chipset Information ..................2 Main Memory .....................3 AGP Graphics .....................3 Integrated AC ’97 Codec Audio ..............3 BIOS Information ..................4 Disk Drive &...
  • Page 4 JP10: Select Keyboard Power On Function ..........19 JP11: Select USB Power On Function ............. 19 Install the Motherboard in a Computer Case........20 Choosing a Computer Case ..............20 Connecting the Case Components ........... 20 Connecting Power and Suspend LEDs............. 22 Floppy Disk Drive ................

  • Page 5: Introduction

    Introduction The CPV4-M/CPV4-MA motherboard features a Socket 370 for the powerful Intel PPGA/FC-PGA Celeron, FC-PGA Pentium III or VIA Cy- rix III processor and the new VIA Apollo Pro 133A (VIA 694X/686A) chipset that includes an AGP BUS system. Three 168-pin DIMM/VCM connectors enable you to install up to 1.5 GB of memory.

  • Page 6: Checklist

    Checklist The CPV4-M/CPV4-MA motherboard ships with the following compo- nents: !"CPV4-M/CPV4-MA motherboard !"One floppy disk drive ribbon cable !"One IDE ribbon cable (Ultra DMA 66) !"One CD-ROM with support software driver !"One user’s manual If any item is missing, or any item appears damaged, contact your board vendor immediately.

  • Page 7: Main Memory

    quency operation between the processor and the memory over a wide frequency range. ECC and memory parity features are optional. The I/O chipset is fully PC99, ACPI v1.0, and APM v1.2 compliant and features a hardware SoundBlaster/AC’97 audio function. The integrated RTC has extended 256 bytes of CMOS RAM.

  • Page 8: Bios Information

    BIOS Information Award Plug and Play flash BIOS ACPI/Deep Green/Energy Star/PC97, PC98, and PC99 compliant Blinking LED for sleep mode and other functions Year 2000 compliant The system BIOS supports automatic detection and configuration of the processor, hardware monitoring, and the Advanced Configuration and Power management Interface (ACPI) specification.

  • Page 9: Voltage And Power

    slot. This means that you can use either one of these slots but not both together at the same time. Voltage and Power Description Description 3.3V 3.3V 3.3V -12V Ground Ground PS-ON Ground Ground Ground Ground Ground Power OK 5VSB +12V The system is assembled with an ATX power supply and supports all the power management benefits of the ATX system including a software...

  • Page 10: Installing Hardware

    Introduction This chapter is a step-by-step guide that explains how to use your CPV4-M/CPV4-MA motherboard to build a powerful computer system. At a minimum, you will need the following components in order to build a fully functioning system. !"Computer case with ATX power supply !"Intel Socket 370 PPGA/ FC-PGA Celeron or FC-PGA Pentium...

  • Page 11: Safety Measures

    Safety Measures Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still con- nected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or yourself. !"Always disconnect the motherboard from the ATX power sup- ply, and disconnect the computer from the power outlet whenever you are working inside the computer case.

  • Page 12: Cpv4-M/Cpv4-Ma Motherboard Guide

    CPV4-M/CPV4-MA Motherboard Guide 19 18 25 26 Note: Because of optional items and design changes, your motherboard may not be identical to the one shown in the illustration.

  • Page 13: Key To Motherboard Components

    Key to Motherboard Components Name Function JP11 USB power on function select JP10 Keyboard power on function select FAN1 Power supply for 12V CPU cooling fan POWER Socket for the ATX power supply cable Select system bus frequency Intel / VIA Cyrix III processor selection Socket-370 for PPGA/ FC-PGA Celeron, FC- PGA Pentium-III and Cyrix III DIMM3...

  • Page 14: Input/Output Ports

    USB3/4 Connector for USB port 3/4 FAN2 Power supply for 12V chassis cooling fan PANEL Connectors for case switches and indicators Input/Output Ports Like most ATX motherboards, this board is installed with a two-tier row of I/O ports. Refer to the illustration below: Note: The game port is only available in the CPV4-MA model.

  • Page 15: Pre-Installation Procedure

    Audio line in Light blue Microphone Pink Pre-Installation Procedure Before you install your motherboard into a computer case, it’s conven- ient to install the processor, install the memory modules, and set all the jumpers to the correct settings. Install the Processor Choosing a Processor This motherboard has a Socket-370 that can only be installed with an Intel INTEL PPGA (Plastic Pin Grid Array) /FC-PGA Celeron or an FC-...

  • Page 16: Installation Procedure

    Installation Procedure 1. On the motherboard, identify the CPU Socket-370 and the cooling fan power-supply connector FAN1. Fan1 Socket 370 Pin 1 corner 2. Identify the pin-1 corner of the Socket-370. The pin-1 corner is on the same side as the locking lever, as shown in the illustra- tion below.

  • Page 17: Install Memory Modules

    5. Align the pin-1 corners and drop the processor into the Socket- 370. The processor should drop into place without any force. If it doesn’t seat properly, check that you have the pin-1 cor- ners in the correct position. 6. Swing the locking lever down to lock the processor in place and latch the lever under the catch on the side of the socket.
  • Page 18 memory module accommodates a maximum of 512 MB; maximum memory is 1.5 GB. Follow these instructions to install memory modules: 1. On the motherboard, locate the two DIMM/VCM slots. 2. Pull the locking latches of the slot outwards. 3. Align the memory module correctly. The edge connector of the memory module has notches that match obstructions in the slot.

  • Page 19: Set The Jumpers

    Set the Jumpers This motherboard has jumpers that need to be set correctly. Jumpers are sets of two, three, or more pins. You can use a jumper cap to connect two adjacent pins. When a jumper cap connects two pins, we say that the pins are SHORT.

  • Page 20: Jp1: Select Amr Card As Master/Slave Device

    JP1. That means set “ Off “ for selecting AMR card as mas- ter device. When the motherboard is not mounted Creative PCI Audio Chip, set “ On “ for selecting AC’97 Codec as master device and AMR card as slave device. CPV4-M Function Jumper Cap Select AMR card...

  • Page 21: Jp3 And Jp4: Select System Bus Frequency

    CPV4-MA Function Jumper Cap OPEN Select AMR card as master Open pins 1-2 Select AMR card as slave Short pins 1-2 Note: The default setting is shaded gray. JP3 and JP4: Select System Bus Frequency Use these 3-pin jumpers to set the system bus frequency for the proc- essor.

  • Page 22: Jp6: Clear Password Jumper

    Function Jumper Cap Clear CMOS Short pins 1-2 Normal operation Short pins 2-3 Note: The default setting is shaded gray. JP6: Clear Password Jumper Use this 3-pin jumper to clear the password stored in the CMOS mem- ory. The setup utility can be protected by a password. This jumper allows you to clear the password protection from the setup utility, in case you forgot the initial password.

  • Page 23: Jp10: Select Keyboard Power On Function

    Note: The default setting is shaded gray. JP10: Select Keyboard Power On Function Use this 3-pin jumper to enable or disable the Keyboard Power On func- tion. If enabled, pressing any keyboard key powers on the system. Function Jumper Cap JP10 Keyboard power Short pins 1-2...

  • Page 24: Install The Motherboard In A Computer Case

    Install the Motherboard in a Computer Case After you have prepared the motherboard by installing a processor, one or more memory modules, and have set the jumpers correctly, install the board into a computer case and begin connecting essential periph- eral items to the connectors on the motherboard.
  • Page 25 Note: Make sure that the power supply unit in the case is not connected to a power outlet while you are carrying out the installation proce- dure. Follow the instructions below to connect the case components: 1. On the motherboard, locate the power connector POWER, the switches and indicators connector PANEL, the chassis cooling fan power connector FAN2, and the auxiliary USB connector USB3/4.

  • Page 26: Connecting Power And Suspend Leds

    5. Locate the PANEL switches and indicators connector on the motherboard. Begin connecting the case switches and indica- tors to the appropriate pins on the PANEL connector. Connect your computer case’s front panel LEDs and buttons to the PANEL connector. Use the illustration and tables below to make the correct connections.

  • Page 27: Floppy Disk Drive

    Note: 2 Item5: There is one option for Single LED Function Support On BIOS Menu Floppy Disk Drive The motherboard has a floppy disk drive interface (FLOPPY) that will support one or two floppy disk drives. The floppy disk drive (FDD) rib- bon cable has connectors for two 3.5-inch wide disk drives.

  • Page 28: Ide Devices

    IDE Devices The motherboard has two IDE channel connectors; the Primary IDE channel (PRIMARY), and the Secondary IDE channel (SECONDARY). Each IDE channel can support two devices. IDE devices include hard disk drives, CD-ROM drives, and removable media drives such as ZIP drives and LS-120 drives.
  • Page 29 PRIMARY SECONDARY 3. Plug a free power supply cable from the case power supply unit into the power connector on the rear edge of the IDE de- vice(s). 4. When you start up your assembled computer, an IDE hard disk drive on the primary IDE channel is identified as drive C.

  • Page 30: Audio Connections

    Audio Connections You can connect the audio output from your CD-ROM (or DVD) drive into the CD-IN connector on the motherboard. Refer to the following illustration: CD IN TAD Use either CD or AUX IN to connect the audio output from a CD-ROM or DVD drive.
  • Page 31 !"The ISA slot supports legacy add-in cards that have a 8/16-bit ISA edge connector. Note: To ensure your system’s stability, please verify that the PCI add- in cards you are using support ACPI Power Management func- tions. If they do not support ACPI, do not enter S3 or S4 suspend mode.

  • Page 32: Add-In Card Options

    Add-in Card Options This motherboard has a Wake On LAN feature. If you have installed a network (LAN) adapter expansion card, you can connect the card to the Wake On LAN connector WOL. If your system is in a software power down or a power-saving mode, incoming traffic to the network adapter can resume the system.

  • Page 33: Using The Firmware

    Introduction The computer employs the latest Award BIOS CMOS chip with support for Windows Plug and Play. This CMOS chip contains the ROM Setup instructions for configuring the mainboard’s BIOS. The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs.
  • Page 34 This program should be executed under the following conditions: !"When changing the system configuration !"When a configuration error is detected by the system and you are prompted to make changes to the Setup program !"When resetting the system clock !"When setting the CPU clock speed so that it automatically runs either fast or slow !"When redefining the communication ports to prevent any con- flicts...

  • Page 35: Entering Setup

    Entering Setup When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways: 1.

  • Page 36: Using Bios

    Listed below are explanations of screen function keys: Function Escape key: Exits the current menu ↑ ↓ → ← Cursor keys: Scrolls through the items on a menu Plus, minus, Page Up and Page Down keys: Modify the se- +/−/PU/PD lected field’s values F10 key: Saves the current configuration and exits setup F1 key: Displays a screen that explains all key functions.
  • Page 37 Selecting some fields and pressing the enter key displays a list of op- tions for that field. In the Standard CMOS Features screen, selecting “Drive A” and pressing <Enter> displays this screen: Drive A None ..360K , 5.25 in.

  • Page 38: Standard Cmos Features

    Standard CMOS Features Selecting “Standard CMOS Features “on the main program screen dis- plays the following menu: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software Standard CMOS Features Date (mm:dd:yy) Tue, Feb 15 20000 Item Help Time (hh:mm:ss) 12 : 8 : 59 Menu Level IDE Primary Master...
  • Page 39 Selecting any of the hard disk fields and pressing <Enter> displays a screen that enables you to make changes to the IDE device parame- ters: IDE Primary Master This field is used to configure the IDE Hard Disk installed in the sys- tem.
  • Page 40 If the auto-detected parameters displayed do not match the ones that should be used for your hard drive, do not accept them. Press the <N> key to reject the values and enter the correct ones manually in the Standard CMOS Setup screen. Note: If you are setting up a new hard disk drive that supports LBA mode, more than one line will appear in the parameter box.
  • Page 41 Access Mode LBA (Logical Block Access) Mode Control. When enabled, this op- tion uses 28-bit addressing of the hard drive without regard for cylinders, heads, and sectors. Note that Logical Block Access may decrease the access speed of the hard disk. However, LBA Mode is necessary to use drives with greater than 528 MB in storage capacity.
  • Page 42 Head This field configures the drive’s number of read/write heads. Refer to your drive’s documentation or look on the drive to determine the cor- rect value to enter for this field. If the system has successfully detected the drive automatically, there is no need to adjust this field. In order to make changes to this field, the IDE Primary Master field must be set to Manual.
  • Page 43 To configure a hard disk drive, move the cursor to highlight one of the fields and press the <Enter> key. The submenu corresponding to the IDE device will appear. The fields and options on these submenus are the same as the IDE Primary Master submenu described above. After using the legend keys to make changes to this submenu, press the <Esc>...

  • Page 44: Advanced Bios Features Setup

    Base Memory This field displays the amount of conventional memory detected by the system during bootup. You do not need to make changes to this field. This is a display only field. Extended Memory This field displays the amount of extended memory detected by the system during boot-up.
  • Page 45 The following explains the options for each feature: Virus Warning When enabled, any attempt to write to the boot sector or partition ta- ble will halt the system and cause a warning message to appear. If this happens, you can use an anti-virus utility on a virus free, boot- able floppy disk to reboot and clean your system.
  • Page 46 First/Second/Third Boot Device The BIOS will load the operating system from the disk drives in the sequence selected in these three fields. Options for each field are: !"Floppy (first boot device default) !"LS/ZIP !"HDD-0 (third boot device default) !"SCSI !"CDROM (second boot device default) !"HDD-1 !"HDD-2 !"HDD-3...
  • Page 47 Typematic Rate Setting If set to “Enabled,” enables you to set the Typematic Rate and Ty- pematic Delay. The default setting is “Disabled.” !"Typematic Rate (Chars/Sec): This setting controls the speed at which the system registers repeated keystrokes. The choices range from 6 to 30 Chars/Sec. The default setting is “6”...

  • Page 48: Advanced Chipset Features Setup

    Advanced Chipset Features Setup Selecting “Advanced Chipset Features” on the main program screen displays this menu: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software Advanced Chipset Features Bank 0/1 DRAM Timing SDRAM 10ns Item Help Bank 2/3 DRAM Timing SDRAM 10ns Bank 4/5 DRAM Timing SDRAM 10ns...
  • Page 49 SDRAM Cycle Length This item sets the timing and wait states for SDRAM memory. We recommend that you leave this item at the default value. !"3 !"2 !"Auto (default) DRAM Clock This item sets the DRAM Clock. We recommend that you leave this item at the default value.
  • Page 50 AGP Aperture Size This item defines the size of the aperture if you use an AGP graphics adapter. It refers to a section of the PCI memory address range used for graphics memory. We recommend that you leave this item at the default value.
  • Page 51 PCI Dynamic Bursting When set to “Enabled,” every write transaction goes to the write buffer. “Burstable” transactions then burst on the PCI bus and “non- burstable” transaction do not. The options are “Enabled,” and “Disabled.” PCI Master 0 WS Write When set to “Enabled,”...

  • Page 52: Integrated Peripherals

    Integrated Peripherals Selecting “Integrated Peripherals” on the main program screen displays this menu: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software Integrated Peripherals OnChip IDE Channel 0 Enabled Item Help OnChip IDE Channel1 Enabled IDE Prefetch Mode Enabled Menu Level Primary Master...
  • Page 53 Primary/Secondary Master/Slave UDMA When set to “Auto” the BIOS will automatically load the Ultra DMA 33 driver to match the transfer rate of IDE hard disk drives that support Ultra DMA 33 mode. The options are “Auto” (default) and “Disabled.” Init Display First This item sets whether the PCI Slot or AGP is activated first.
  • Page 54 The UART mode setting depends on which type of infrared module is used in the system. When set to “ASKIR” or “HPSIR,” the UART 2 is used to support the infrared module connected on the mainboard. If this option is not set to “Standard,” a device connected to the COM2 port will no longer work.

  • Page 55: Power Management Setup

    SPP allows data output only. Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) are bi-directional modes, allowing both data input and output. ECP and EPP modes are only supported with EPP and ECP aware peripherals. ECP Mode Use DMA When the onboard parallel port is set to ECP mode, the parallel port has the option to use DMA “3”(default) or DMA “1.”...
  • Page 56 IPCA Function When set to “Enabled,” turns on the ACPI Function. The default set- ting is “Disabled.” Note: ACPI (Advanced Configuration and Power Interface) is a power management specification that makes hardware status informa- tion available to the operating system. ACPI enables a PC to turn its peripherals on and off for improved power management.
  • Page 57 HDD Power Down The IDE hard drive will spin down if it is not accessed within a speci- fied length of time. Options are from “1 Min” to “15 Min” and “Disable.” Doze Mode The system speed will change from turbo to slow if no Power Man- agement events occur for a specified length of time.
  • Page 58 MODEM Use IRQ This determines which IRQ the MODEM can use. Options are: !"NA !"3 !"4 !"5 !"7 !"9 !"10 !"11 Soft-Off by PWRBTN When set to “Instant-Off” (default), pressing the power button will turn off the system power. When set to “Delay 4 Sec.” you have to press the power button and hold it for more than 4 seconds to turn off the system power.
  • Page 59 Wake Up Events This item opens a submenu that enables you to set events that will resume the system from a power saving mode. Select Wake Up Events and press <Enter> to display the following menu: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software Wake Up Events USB Resume from S3/S4/S5 Disabled...
  • Page 60 HDD & FDD When this item is set to “On,” the system will restart the power-saving timeout counters when any activity is detected on any of the drives or devices on the primary or secondary IDE channels, or FDD. PCI Master When set to “On,”...
  • Page 61 IRQs Activity Monitoring This item opens a submenu that enables you to set IRQs that will re- sume the system from a power saving mode. Select IRQs Activity Monitoring and press <Enter> to display the following menu: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software IRQs Activity Monitoring Primary INTR Item Help...

  • Page 62: Pnp/Pci Configuration

    PnP/PCI Configuration Both the ISA and PCI buses on the Mainboard use system IRQs (Inter- rupt ReQuests) and DMAs (Direct Memory Access). You must set up the IRQ and DMA assignments correctly through the PnP/PCI Configu- rations Setup utility; otherwise, the mainboard will not work properly. Selecting “PnP/PCI Configurations”...
  • Page 63 Resources Controlled By The default setting is “Manual” which allows you to control IRQs and DMAs individually. The other option is “Auto (ESCD)” which will de- tect the system resources and automatically assign the relative IRQs and DMAs for each peripheral. IRQ Resources This field becomes available if the Resources Controlled By field is set to “Manual.”...

  • Page 64: Pc Health Status

    PC Health Status This menu provides you with information about your computer’s current operating status, including voltages, temperature, and fan speeds. Se- lecting PC Health Status from the main menu displays the following screen: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software PC Health Status Current CPU Temp.

  • Page 65: Frequency Control

    Frequency Control This menu enables you to set operating characteristics of the CPU such as the internal core speed. Selecting Frequency Control from the main menu displays the following screen: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software Frequency Control Auto Detect DIMM/PCI Clk Enabled...

  • Page 66: Load Fail-Safe Defaults

    Load Fail-Safe Defaults Use this option if you have changed your system and it does not oper- ate correctly or does not power up. When you select “Load Fail-Safe Defaults” from the main menu, you see the following screen: Load Fail-Safe Defaults (Y/N)? N Press <Y>...

  • Page 67: Set Supervisor/User Password

    Set Supervisor/User Password The “Set Supervisor/User Password” utility sets the password. mainboard is shipped with the password disabled. If you want to change the password, you must first enter the current password, then at the prompt enter your new password. The password is case sensitive. You can use up to eight alphanumeric characters.

  • Page 68: Save & Exit Setup

    Save & Exit Setup Selecting this option and pressing the <Enter> key will prompt you to save the new setting information in the CMOS memory and continue with the booting process SAVE to CMOS and EXIT (Y/N)? Y Press the <Y> key and then press the <Enter> key if you want to save the new settings.
