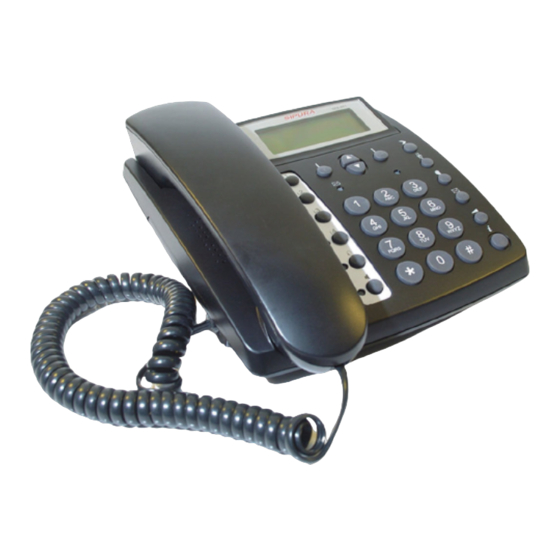

Sipura SPA-841 How To
(c) 2003-2010 Bicom Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPA-841 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sipura SPA-841

  • Page 1 Sipura SPA-841 How To (c) 2003-2010 Bicom Systems...
  • Page 3 Sipura SPA-841 How To (c) 2003-2010 Bicom Systems All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.

  • Page 4: Table Of Contents

    Sipura SPA-841 How To Table of Contents Foreword Part I Introduction Part II Registering Sipura SPA-841 1 Requirements ........................... 4 2 Manual Configuration ........................... 5 UAD Settings ................................. 6 Creating Extension ................................. 8 Registering Phone ................................. 10 3 Auto Provisioning ...........................
  • Page 5 Foreword (c) 2003-2010 Bicom Systems...
  • Page 6 Part...

  • Page 7: Part I Introduction

    Sipura SPA-841 How to use Sipura SPA-841 with PBXware This "How to" is written as a general guide on how to use the Sipura SPA-841 with PBXware using 3.1.4(a) Sipura SPA-841 firmware. It covers the most common tasks required to have your Sipura SPA-841 working efficiently.
  • Page 8 Part...

  • Page 9: Part Ii Registering Sipura Spa-841

    DHCP server. 3. Sipura SPA-841 Dial Plan. - The Sipura SPA-841 "Dial Plan" field value needs to be changed using web interface. STEP ONE: Sipura SPA-841 Interface. 1. Open a new browser window and enter the IP address in order to access the Sipura SPA-841 administration interface.

  • Page 10: Manual Configuration

    4. Navigate down to "Dial Plan" group. Clear the "Dial Plan" field, then copy & paste the following value. (*x.|**x.|*xx|[3469]11|0|00|[2-9]xxxxxx|1xxx[2-9]xxxxxx| xxxxxxxxxxxx.) 5. Click on the "Submit All Changes" button. The Sipura SPA-841 will reboot for changes to take effect. Manual Configuration UAD Settings...

  • Page 11: Uad Settings

    3. Login to PBXware with your e-mail address and password. STEP THREE: status. 1. Make sure the UAD is enabled. To check the UAD status, navigate to "Settings:UAD" and click on the "edit" icon corresponding to "Sipura SPA-841". (c) 2003-2010 Bicom Systems...
  • Page 12 Sipura SPA-841 How To 2. Make sure "Status" is set to "active", "Auto provisioning" is set to "No", and "DHCP" is set to "Yes". (c) 2003-2010 Bicom Systems...

  • Page 13: Creating Extension

    STEP ONE: Add Extension. 1. Navigate to "Extensions". Click on "Add Extension". 2. The standard options window (below) will be shown. 3. Select Sipura SPA-841 from the "UAD" select box. 4. Select Location: "Local" or "Remote". (c) 2003-2010 Bicom Systems...
  • Page 14 Sipura SPA-841 How To Note: -"Local" is for all extensions registered on LAN. -"Remote" is for all extensions registered from remote networks, WAN, Internet etc. 5. Click on the "Next" button. STEP TWO: Extension values. 1. Enter values into the required field text boxes.

  • Page 15: Registering Phone

    An auto-generated PIN will allow access to voicemail and online self care. 2.2.3 Registering Phone STEP ONE: Electricity and Ethernet. - Your Sipura SPA-841 needs electricity, so plug the adapter into its jack and connect it to the electricity network. - Connect the ethernet port to a hub, router switch as to access LAN.
  • Page 16 Sipura SPA-841 How To After successfully connecting your Sipura SPA-841 to the electricity and data networks, it is time to register it to PBXware. STEP TWO: Sipura SPA-841 address. Find out the IP address of your Sipura SPA-841 connected to network.
  • Page 17 Registering Sipura SPA-841 STEP THREE: Sipura SPA-841 Interface. 1. Open a new browser window and enter the IP address in order to access the Sipura SPA-841 administration interface. Example: http://192.168.1.101 an example with IP address 2. Hit "Enter" on your keyboard.
  • Page 18 Example: 3dX3r5 an example with details filled in 4. Navigate to the bottom of the page, click on the "Submit All Changes" button. The Sipura SPA-841 will reboot for changes to take effect. OPTIONAL FIELDS: Display Name: Example: John Smith, Reception, Entrance Main, Agent One etc.

  • Page 19: Auto Provisioning

    Registering Sipura SPA-841 Other "options" or "fields" should be left blank or as is by default, they have no importance for registering your Sipura SPA-841 to PBXware. - Conclusion: If everything is done as above described you should have successfully registered your Sipura SPA-841 to PBXware.
  • Page 20 Sipura SPA-841 How To STEP THREE: status. 1. Make sure the UAD is enabled. To check the UAD status, navigate to "Settings:UAD" and click on the "edit" icon corresponding to "Sipura SPA-841". (c) 2003-2010 Bicom Systems...
  • Page 21 Registering Sipura SPA-841 2. Make sure "Status" is set to "active", "Auto provisioning" is set to "No", and "DHCP" is set to "Yes". (c) 2003-2010 Bicom Systems...

  • Page 22: Creating Extension

    STEP ONE: Add Extension. 1. Navigate to "Extensions". Click on "Add Extension". 2. The standard options window (below) will be shown. 3. Select Sipura SPA-841 from the "UAD" select box. 4. Select Location: "Local" or "Remote". (c) 2003-2010 Bicom Systems...
  • Page 23 Enter a name for the extension being created. Example: John Smith. E-mail: Enter the e-mail address associated with this extension. This e-mail address will receive all system notification messages. Example: john@domain.com Auto provisioning: Set to "Yes". MAC Address: Sipura SPA-841 MAC address. Example: 001646f5f797 (c) 2003-2010 Bicom Systems...

  • Page 24: Registering Phone

    An auto-generated PIN will allow access to voicemail and online self care. 2.3.3 Registering Phone STEP ONE: Electricity and Ethernet. - Your Sipura SPA-841 needs electricity, so plug the adapter into its jack and connect it to the electricity network. - Connect the ethernet port to a hub, router switch as to access LAN.
  • Page 25 Registering Sipura SPA-841 After successfully connecting your Sipura SPA-841 to the electricity and data networks, it is time to register it to PBXware. The "Profile Rule" field must be set with TFTP server value. STEP TWO: Sipura SPA-841 address. Find out the IP address of your Sipura SPA-841 connected to network.
  • Page 26 Sipura SPA-841 How To STEP THREE: Sipura SPA-841 Interface. 1. Open a new browser window and enter the IP address in order to access your Sipura SPA-841 administration interface. Example: http://192.168.1.101 an example with IP address 2. Hit "Enter" on your keyboard.

  • Page 27: Auto Configuration

    5. Navigate to the bottom of the page, click on the "Submit All Changes" button. The Sipura SPA-841 will reboot for changes to take effect. - Conclusion: If everything is done as above described, you should have successfully registered your Sipura SPA-841 to PBXware.

  • Page 28: Auto Configuration

    Sipura SPA-841 How To 3. Make sure that all devices are using port 5060. 2.4.2 Auto Configuration 1. Navigate to "Extensions: Find Phones". 2. A pop-up window will appear. Input the range of IP addresses Example: - Start IP: 192.168.1.2 - End IP: 192.168.1.254...
  • Page 29 Registering Sipura SPA-841 an example with range of IP addresses 4. After PBXware has finished searching for devices, a list of all devices found will be shown. 5. Change the activation status from "Not Activated" to "Auto Configuration" for one or more displayed devices of your choice.
  • Page 30 Sipura SPA-841 How To an example with list of found devices 7. After you have edited a device, a pop-up window will appear. (c) 2003-2010 Bicom Systems...
  • Page 31 Registering Sipura SPA-841 an example with 1 configured line 8. The Sipura SPA-841 has 4 lines available, you can configure just one or all of them as shown above. Line 1 example Name: John Smith E-mail: john@domain.com Ext: 1000 PIN: 1223 Secret: Enter an at least 6 digit or letter long secret.
  • Page 32 Sipura SPA-841 How To 11. Device(s) will automatically reboot and be auto configured. (c) 2003-2010 Bicom Systems...
  • Page 33 Part...

  • Page 34: Part Iii Paging

    Sipura SPA-841 How To Paging 1. Navigate your Internet browser to the telephone IP address (for example http://192.168.1.1) 2. Select 'Admin Login' 3. Select 'Advanced' 4. Navigate to 'User' tab 5. Set 'Auto Answer Page' to 'Yes' 6. Set 'Send Audio To Speaker' to 'Yes' 7.
  • Page 35 Part...

  • Page 36: Part Iv Glossary

    Sipura SPA-841 How To Glossary - DHCP = Dynamic Host Configuration Protocol (DHCP) is a communications protocol that lets network administrators manage and automate the assignment of Internet. - HUB = A common connection point for devices in a network.
  • Page 37 (c) 2003-2010 Bicom Systems...
