Summary of Contents for Gundermann VIDEOWALL LEDWALL Optimizer HQ P2

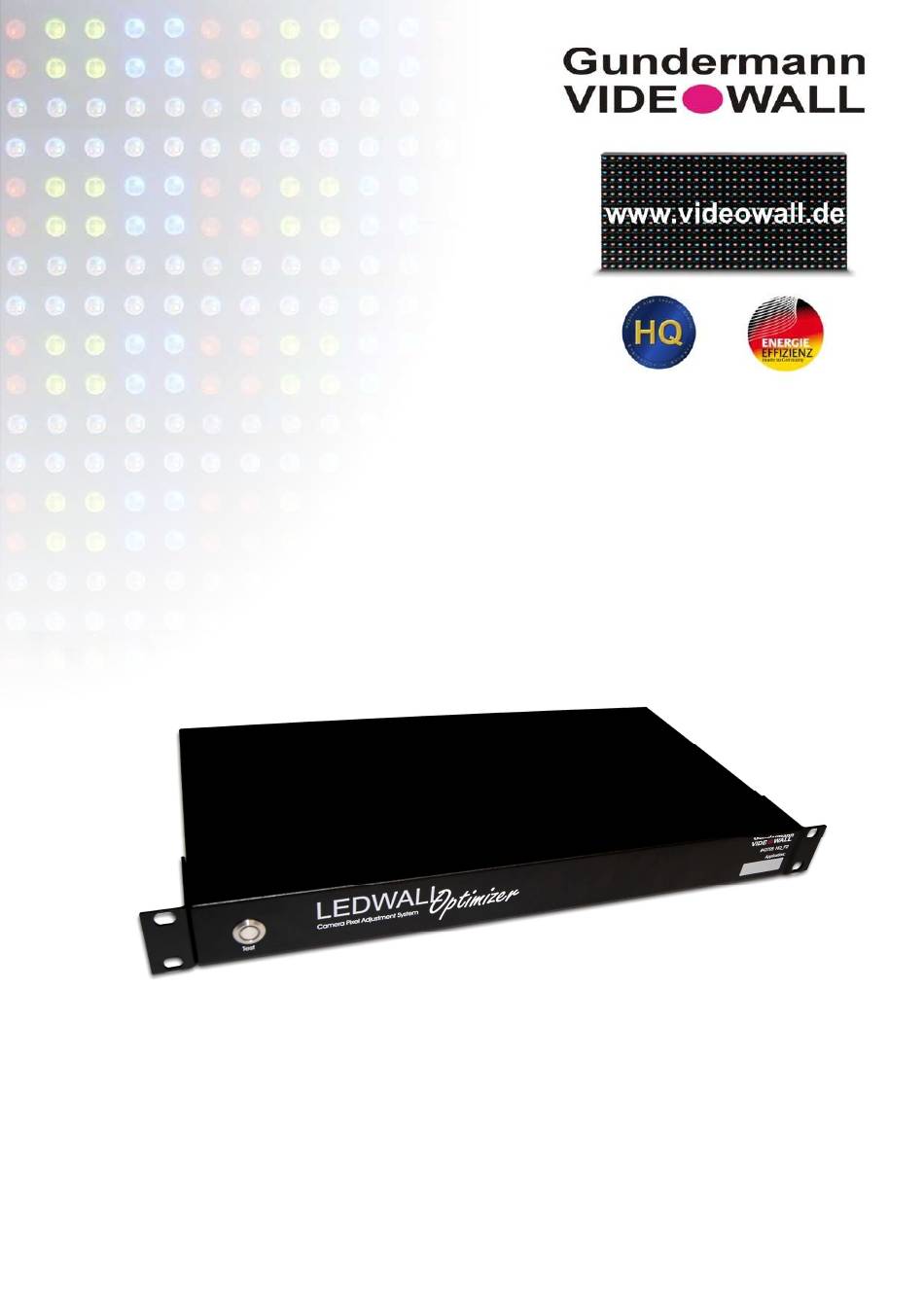

- Page 1 Manual LEDWALL Optimizer HQ_P2 Valid for devices with the number: #42705 LEDWALL Optimizer HQ_P2 without camera alignment system G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010...
- Page 2 Gundermann Mikroelektronik GmbH maintains the right to change hardware, packaging and all adjoining documentations without prior notice. LEDWALL Optimizer HQ_P2 is a trademark of Gundermann Mikroelektronik GmbH. © 2010 Gundermann Mikroelektronik GmbH, All rights reserved. All trademarks are property of the individual owner. G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010...
- Page 3 European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), as amended by the Directive 27.Januar 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010...
-
Page 4: Table Of Contents
4.5 Settings of the LCS-program (optional) ..............9 4.6 Execution of the camera alignment (optional)............. 9 4.7 Pixelkoefficients (optional)..................9 4.8 Remarks (optional) ..................... 9 5 Service ........................... 10 6 Scope of delivery......................11 7 Remarks......................... 12 G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 5: Security
1.2 Intended use The LEDWALL Optimizer HQ_P2 is a control gear which adjusts LEDWALL systems which are controlled digitally (DVI/HDMI). The device can be used for Indoor and Outdoor LEDWalls, whilst the device has to stay Indoor. G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 6: Technical Description
● Communication with LCS-program ● 3-times flashing: error Green/Blue LED: ● Slow flashing: device is turned on and HDMI/DVI signal is connected ● Fast flashing: device is turned on and HDMI/DVI signal is not connected ● No flashing: software-/hardware-error G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 7: Principal Function
Press the “Test”-Button (Fig.: 2.1 Pos. 2) longer (approx. 2 seconds). If you press the button longer the colour will change according above listing. If you press the button shortly during a primary colour the picture will appear without pixel correction. G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 8: Technical Data
Power supply 47-63 Hz Frequency…………………………………………………………… 90-255 VAC Supply voltage……………………………………………………... 20 Watt Power consumption…………..………………………………………… Internal fuse….…………..…………………………………………….. Environmental conditions 0 bis +40° C Operating temperature…….…………………………………………… -20 bis +50° C Storage temperature…………………………………………………. 90% rel. humidity (not condensed) Humidity………………….… Emissions …………………………….…….…………………….…………………. G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 9: Installation And Settings
4.4 Installation of the LCS-program (optional) 4.5 Settings of the LCS-program (optional) 4.6 Execution of the camera alignment (optional) 4.7 Pixel coefficients (optional) 4.8 Remarks (optional) Optional functions are only used with the camera alignment system! G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 10: Service
DVI-DVI resp. HDMI-HDMI cables. ► The brightness of the according Videowall has to be set back from 100% to approx. 70% (depending on the system). ► The company Gundermann Mikroelektronik GmbH has to be informed. G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 11: Scope Of Delivery
Following components can be purchased optionally: 1 x Driver-CD ● 1 x USB-cable 2.0 1m ● 1 x USB-cable 2.0 3m ● ● 1 x Camera with lens ● 1 x tripod ● 1 x Aluminium case G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010... -
Page 12: Remarks
7 Remarks G:\HQ\HQ_P2\Dokumentation\Doku_HQ_P2_allg_ohne_KA_Englisch.doc Gundermann VIDEOWALL 2010...
