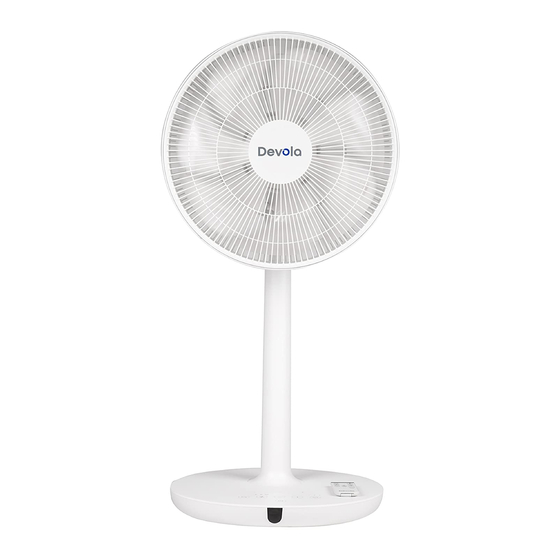

- Page 1 Instruction Manual Devola Devola Ultra Quiet 16-inch DC Pedestal Fan DV16DCPF devola.co.uk...
-
Page 2: Safety Instructions
Safety instructions Precautions Transport *When moving, be sure to stop the host and unplug the power cord. *Please hold the fan column firmly to avoid falling and hurting people. Installation *Please be sure to install this product correctly according to the instructions, otherwise electric shock, fire, personal injury and other damage may occur. -
Page 3: Parts Identification
Parts Identification Installation Installing the Pedestal Tube... - Page 4 1.Align the pedestal tube with the socket located on the top of the fan base, then insert the lower end of the tube into the socket. 2.Check that the two components are correctly locked into place, turning the nut clockwise to affix the tube to the base, as per the above illustrations.
- Page 5 Grille Assembly Take out the grille assembly and use a screwdriver to remove the front grille screws; press down the front grille buckle with your hands to detach the front grille. (The operation is shown in the figure below). Installing the Rear Grille Align the fan's rear grille with the motor head at the top of the pedestal tube and attach it to the motor head by screwing the nut in a clockwise direction, as below.
- Page 6 Installing the Fan Blades Align the hole at the centre of the fan blade with the motor shaft and secure the fan blades by turning the nut anti-clockwise. Installing the Front Grille Insert the front grille of the fan into the frame of the fan rear net and rotate the front grille clockwise until it is slotted in the correct position.
- Page 7 Affix the Fan Grille Insert the screws into the holes at the bottom of the fan grille and use a Phillips screwdriver to tighten them by turning it clockwise. Connecting to Power Connect the power supply cord to the power cord interface at the bottom of the base, and then connect to the power source.
- Page 8 Operating Instructions Operation Panel Power Switch 1. Plug in the power supply and the fan will enter the standby state. Press the power switch button and the fan begins to operate. When used for the first time, the default wind speed is level one. When the fan is turned off and turned on again, the fan defaults to the wind speed of when it was last in operation.
- Page 9 pattern occurs until the fan reaches gear speed one, which it will stay in until switched off manually or by the timer. ECO: When the ECO mode is turned on, the fan will automatically run according to the detected temperature. The ambient temperature is detected every 30 seconds. There are a total of 7 settings, as described in the following table: Wind Speed When the fan is running, press the...
- Page 10 Elevation Air Supply When adjusting the fan to blow up or down, you can slightly lift or lightly press the machine head or fan screen to adjust. The air supply angle is shown in the figure below: Remote Control The below remote-control functions are as per the control panel instructions, however, there are two additional function keys.
-
Page 11: Troubleshooting
Battery Polarity of the battery Incorrect installation will cause battery leakage and corrosion, and cause damage to the remote control. Please observe the following prevention methods: 1. When replacing the battery, be sure to use a brand-new battery. 2. Do not try to change, short-circuit, or disassemble the battery to avoid danger. 3. -
Page 12: Basic Parameters
The fan blades are stuck by Turn off the fan power and stuck. foreign objects. remove any foreign objects. Basic parameters Product Name DC Pedestal Air Circulator Model Number DV16DCPF Fan Blade Size 290mm Rated Voltage 220V~ Rated Frequency 50Hz Rated Power Product Weight 3.5±0.2kg... -
Page 13: Cleaning And Maintenance
Cleaning & Maintenance Parts that can be cleaned: The following parts can be cleaned with water or diluted neutral detergent with a soft cloth or sponge. Note: Be sure to stop the fan, and then disassemble and clean the machine after power off;... - Page 14 Note: Do not wash the above parts with water. Do not use thinner, light gasoline, detergent or alkaline detergent to clean the above parts.
