- Page 1 Model 086C04 Impact Hammer Installation and Operating Manual For assistance with the operation of this product , contact the Vibration Division of PCB Piezotronics, Inc. Division toll-free 888-684-0015 24-hour SensorLine 716-684-0001 Fax 716-685-3886 E-mail vibration@pcb.com...
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
-
Page 4: Table Of Contents
Installation and Operating Manual ® Impulse Force Test Hammer Models: 086C01, 086C02, 086C03, 086C04, 086D05 086D20, 086D50, 086D80 Manual Number 19198 Contents: 1.0 Introduction …………………………………………… Page 1 2.0 Description ........………………………. Page 5 3.0 Installation ..........……………... Page 5 4.0 Operation .........….……………….. Page 6 4.1 Testing …………………………………………………... - Page 5 determine the amplitude and frequency content (wave shape) of the force impulse. The impact cap material generally determines energy content. Hammer model selection involves determining the size and mass of the hammer structure which will provide the force amplitude and frequency content required for proper excitation of the structure under test.
- Page 6 Models 086C02, 086C03, 086C04 Model 086D05...
- Page 7 Model 086D20 Model 086D50...
-
Page 8: Description

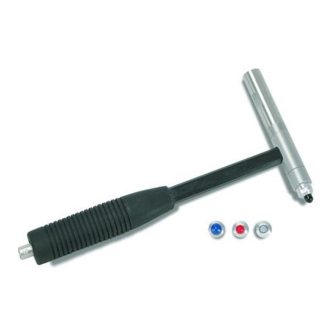

Model 086D80 2.0 DESCRIPTION ® The hammer consists of an integral, ICP quartz force sensor mounted on the striking end of the hammer head. The sensing element functions to transfer impact force into electrical signal for display and analysis. It is structured with rigid quartz crystals and a built-in, micro-electronic, unity gain amplifier. -
Page 9: Operation
Sensors install and connect according to detail procedures described in specific sensor manuals. Some common installation methods include stud mount, Petro-wax, cyanoacrylate adhesive, and magnetic. The method used depends on test conditions and user preference. ® In general, sensors connect to the ICP power unit at the jack labeled "XDCR."... -
Page 10: Calibration
20 dB below initial low frequency force levels. 4. Change hammer tips and/or mass to modify its behavior if necessary: a. For higher frequency response, use a stiffer tip and no extender. b. For better low frequency response, use a softer tip and install the extender. c. -
Page 11: Maintenance
test structure is a function of the total mass of the hammer, while the force on the crystals is a function of only the mass behind them (the impact tip is in front of the crystal- sensing element). Their differences, which depend on the ratio of the tip mass to the head mass, is automatically compensated for when the hammer is properly calibrated, since the extender mass is behind the sensing element. -
Page 12: Customer Service
8. Do not subject units to temperatures above 250 degrees F (121 degrees C). 8.0 CUSTOMER SERVICE PCB Piezotronics guarantees Total Customer Satisfaction. If, at any time, for any reason, you are not completely satisfied with any PCB product, PCB will repair, replace, or exchange it at no charge.
