Summary of Contents for Solos 42-0001417

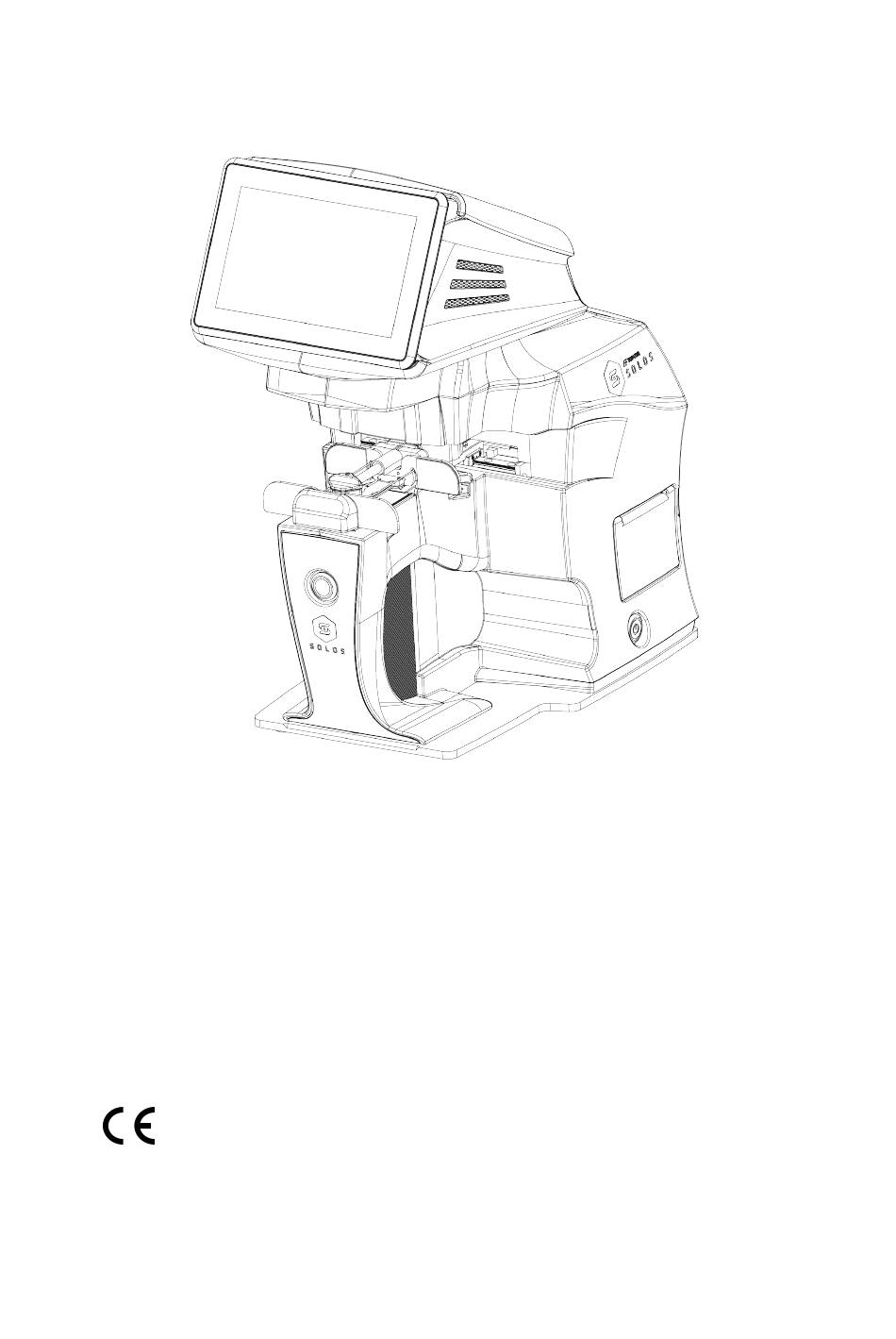

- Page 1 SOLOS Automatic Lens Analyzer Instruction For Use Cod. 42-0001417 SOLOS Rev. 05 – 2022...
- Page 2 en Instruction manuals in official languages sk Inštrukˇ c né manuály úradných of the Member States of the European jazykoch ˇ c lenských štátov Európskej Union available follow- únie sú dispozícii tejto ing website using password "harlem": bovej stránke pomocou hesla "harlem": https://www.visiaimaging.com/manuals.php https://www.visiaimaging.com/manuals.php manuels...
- Page 3 da Brugsanvisninger på officielle sprog i manuais instruções Den Europæiske Unions medlemsstater iomas oficiais estados-membros er tilgængelige på følgende websted da União Europeia estão disponíveis hjælp adgangskode "harlem": no seguinte site usando senha "harlem": https://www.visiaimaging.com/manuals.php https://www.visiaimaging.com/manuals.php Manuale de instruct iuni în limbile ofi- Instructiehandleidingen in de officiële ciale ale statelor membre ale Uniunii talen van de lidstaten van de Europese...
-
Page 4: Intended Users
I N T R O D U C T I O N Thank you for purchasing SOLOS. To ensure safe and effective use of the instrument, care- fully read "DISPLAY AND SYMBOLS FOR SAFE USE" and "GENERAL SAFETY INFOR- MATION" and then use the instrument as instructed. Keep the INSTRUCTION MANUAL at hand for future reference. - Page 5 P R E C A U T I O N S A N D S A F E T Y To encourage safe and proper use and to prevent danger to the operator and others or po- tential damage to property, important cautionary messages are placed on the instrument body and inserted in the INSTRUCTION MANUAL.
- Page 6 Table 1: Symbols (continue) Standard Symbols Description Reference ISO 15223-1 Medical device Temperature limitation Indicates the temperature limits to which the medical device can be safely ISO 7000-0632 exposed Humidity limitation ISO 7000-0224 Indicates the range of humidity to which the medical device can be safely exposed Atmospheric pressure limitation ISO 7000-2621...
-
Page 7: Safety Guidelines
2.2 SAFETY GUIDELINES • SOLOS device can only be used for the design purposes described in this manual. • The device must be used in the environmental conditions as specified in this docu- ment. - Page 8 To avoid fire in the event of an instrument malfunction, use a properly rated fuse. 2.4 LED EMISSION SAFETY SOLOS has a series of LEDs of various types and powers installed. The device is classified as group 0 (risk exempt) according to IEC 62471:2006.
- Page 9 When SOLOS is installed in rooms for medical use, the PC and the connected printer must be powered using an IEC 60601-1 compliant insulating transformer. • If SOLOS is installed in rooms for medical use without a computer, it is not necessary to use an insulating transformer. •...
-
Page 10: Transport And Packaging
2.6 TRANSPORT AND PACKAGING • The device must be transported and stored in its original packaging. • For the storage and transport conditions please refer to the specifications contained in this document. • Keep the original packaging with care in case the device needs to be transported again. - Page 11 I N S T A L L A T I O N 3.1 UNPACKING AND PACKING OF THE SYSTEM Keep the original packaging for future use. The system must always be handled/- shipped in its original packaging, which is specifically designed to protect it against damages.
- Page 12 A C C E S S O R I E S Check Calibration Tool Power cable (country specific) Instruction for Use Printer Paper Cartridge...
- Page 13 T E C H N I C A L S P E C I F I C A T I O N S General information Lens analysis Focimeter, Lens Mapper, Spectrometer Operating mode Total automatic Light Source Green Led 535 nm 10 nm Acquisition type Single Lens, Spectacles...
- Page 14 Onboard components Operating system Linux Custom Image Processor Icore MX8 Mini 1 GB Hard Disk 4 GB eMMC External connections 2 USB, 1 Ethernet, 1 RS-232 Connectivity 802.11 b/g/n Wifi, LAN Mechanical specifications Width 245 mm Height 437 mm Depth 354 mm Net Weight 11 kg...
- Page 15 M A I N T E N A N C E No special scheduled maintenance is necessary for the product. 6.1 CHANGING THE FUSES OF SOLOS DEVICE Make sure that the power switch of the main body is off and the power cable is unplugged.
- Page 16 Figure 1: Fuse changing procedure...
- Page 17 O P E R A T I N G A N D U S A G E M E T H O D Download the user manual from the following url using password "harlem" https://www.visiaimaging.com/manuals.php...
