Summary of Contents for Subtronic Nova

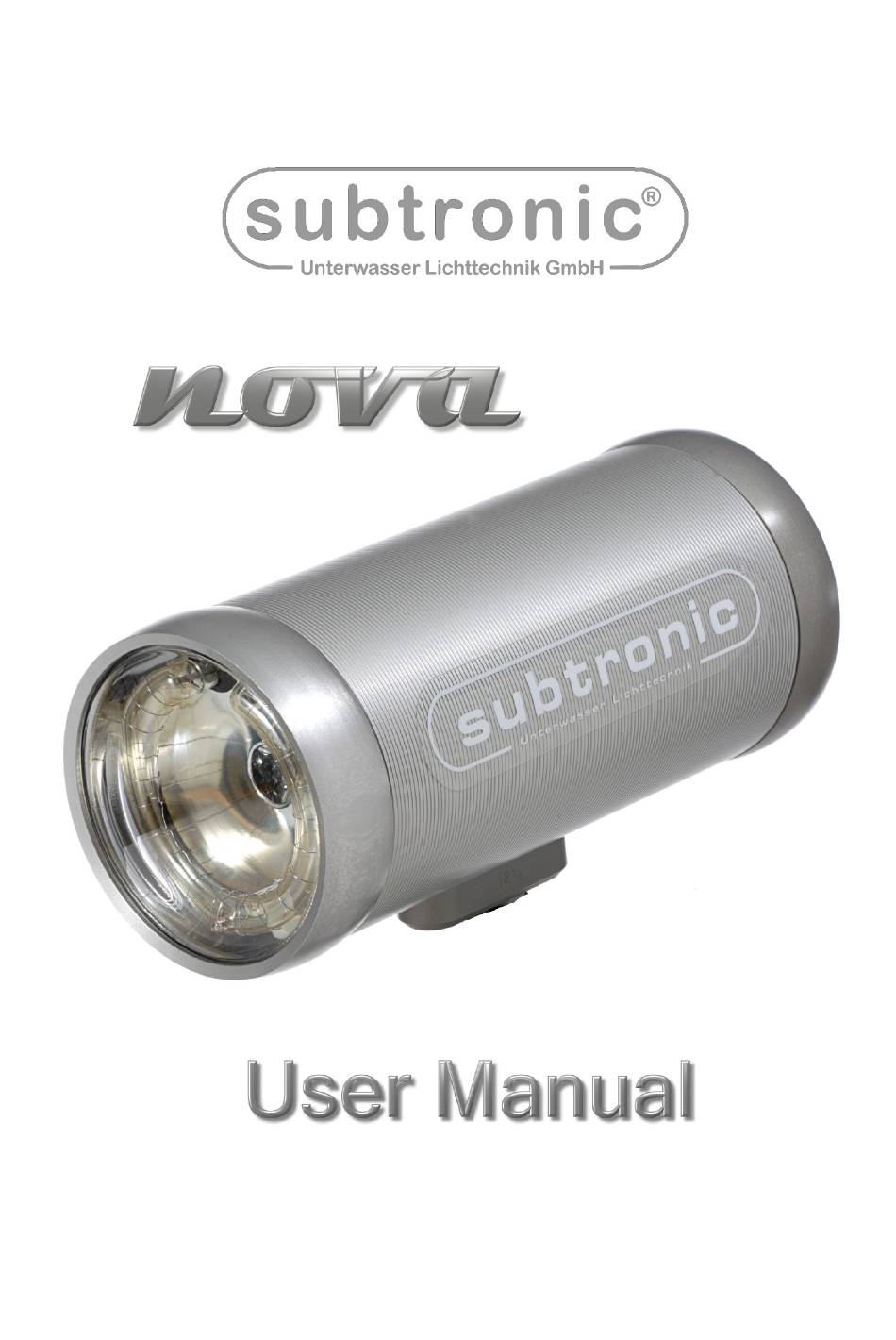

- Page 1 03/2010...
-
Page 2: Table Of Contents
Contents DESCRIPTION OF THE NOVA BACKPLATE....................3 POWER SUPPLY / RECHARGEABLE BATTERY................... 4 CHARGING EXTERNAL RECHARGEABLE BATTERIES................4 CHARGING INTERNAL RECHARGEABLE BATTERIES................4 PLEASE NOTE THE FOLLOWING WHEN CHARGING THE BATTERY:............4 SELF DISCHARGE............................5 OPERATION..............................5 PILOT LAMP..............................6 SOS FUNCTION.............................. -
Page 3: Description Of The Nova Backplate
. DESCRIPTION OF THE BACKPLATE TTL analog and digital test mode SOS emergency flash-light slave-mode manual flash operation power on with pilot lamp 50% / 100% flash performance correction switch main function selection switch powerstep selection switch control lamps... -
Page 4: Power Supply / Rechargeable Battery
. Power supply / rechargeable battery Lithium-manganese batteries in the flash arm The lithium-manganese batteries housed in the flash arm are extremely robust and reliable. Unlike lithium-polymer lithium-ion rechargeable batteries, there is no risk of a lithium-cobalt reaction (explosion-like metallic fire) In the event of a malfunction such as a battery failure or overloading, or due to old age. -
Page 5: Self Discharge
SELF DISCHARGE The internal Li Mg accumulator will discharge even when you are not using the flash gun. The accumulator discharges fully after approx. 4-6 weeks (dependent upon the outdoor temperature). It then switches to exhaustive discharge mode, which will damage the accumulator. -
Page 6: Pilot Lamp
. PILOT LAMP The pilot lamp facilitates orientation at night and enables you to see objects on the display of a digital camera. The pilot lamp is switched on by turning the rotary switch to “PILOT1” or “PILOT2”. Switch Position Power Dimmer function 100%... -
Page 7: Areas Of Application For Ttl
. AREAS OF APPLICATION FOR TTL The flash gun is suitable for the corresponding areas of application according to the working aperture selected on the flash gun (underwater, the murkiness of the water is also a deciding factor). The most effective working aperture for different shooting situations varies according to the necessary range and the desirable depth-of-field zone. -
Page 8: Ttl Flash Operation With Digital Cameras (Right Socket)
. TTL FLASH OPERATION with digital cameras (right socket) In contrast to analog cameras, digital cameras are not recognized automatically as each device has a special control mechanism. Connect the camera to the right flash socket (where there are two sockets) and set the selector switch to “TTL” or “PILOT”. The flash gun is fully controlled by the camera, and data is continually transferred between the two devices. -
Page 9: Manual Flash Gun Operation
Please consult your camera’s user guide to see whether it is capable of controlling a flash gun in manual mode. This is not a problem with CANON and NIKON models equipped with nova featuring a +/- switch with the M setting. The flash gun emits a constant light source according to the selector switch setting (1/1 to 1/32 ). -
Page 10: Slave Flash Control Depends On The Model
The optical slave triggering works only correct with analogical cameras or with digital cameras in manual-mode. the short Version of Nova has no slave-function included, because modern digital cameras do not support this function. This depends on the pre-flash.to use the slave-Mode via sensor you need a slave-flash-trigger-module to control theslave flash. -
Page 11: Flash Gun Care And Maintainance
SYNCHRONOUS PLUG . REPLACING THE O-RINGS AND ACCUMULATOR We recommend that you return the flash gun to subtronic for replacement of all the O-rings and the accumulator after four to five years of use. You can check and replace the O-rings on the NIKONOS plug connector yourself. -
Page 12: Connection Bar
Our ball-joint flash arms are attached directly to the flash bar with an M8 bolt. Please note that the bolt may only be screwed 8 mm into the bar, as otherwise it could be levered out of position. subtronic ball-joint arm system, coupling Page 12 of 20... -
Page 13: Flash Gun Capacitor Reformation
(up to 400 V). • Replace the lid and return the device to subtronic as quickly as possible. • All warranty claims will become void if the lid is opened without due cause unless the case described above occurs during the warranty period and was caused by a factory fault. -
Page 14: Safety Instructions
• When you have been using the device for a few years, treat it to a check-up at subtronic as the O-rings will not live forever, and at some point the accumulator will give up the ghost, as well. -
Page 15: What Should You Do In The Event Of Damage
. What should you do in the event of damage? • Pack the device in a robust cardboard box with plenty of room on all sides for padding material. Do not use a shoe box. • Detach the flash gun arm, covers and other removable parts from your device. •... -
Page 16: Data Sheets
. Data sheets Page 16 of 20... -
Page 17: Technical Data Nova
. Technical Data U/W guide number, light path 2 m, empirical 20 / 250Ws value Illumination underwater (circular beam) DIN 116° 19011 Dome port Flash frequency time: (minimum/full output) 0.1 / 2.5 seconds Number of flashes / at full power Color temperature above water;... -
Page 18: Notes
. Notes Page 18 of 20... -
Page 19: Warranty
8. Please return faulty devices either to your specialist retailer or directly to subtronic GmbH together with the proof of purchase, in transport-proof packaging, and accompanied by a full and accurate description of the complaint. Devices are sent by, and returned to, the purchaser at own risk. -
Page 20: Contact
Office hours : 9.00 to 12.00 and 13.00 to 16.00 Tel.: +49 - (0)7023 / 74669-0 Fax: -16 E-mail: service@subtronic.de vertrieb@subtronic.de WEEE-Reg.-Nr.: DE50693801 The answering machine is switched on outside of office hours. Visit us on the Internet: http://www.subtronic.de your local subtronic Dealer Page 20 of 20...
