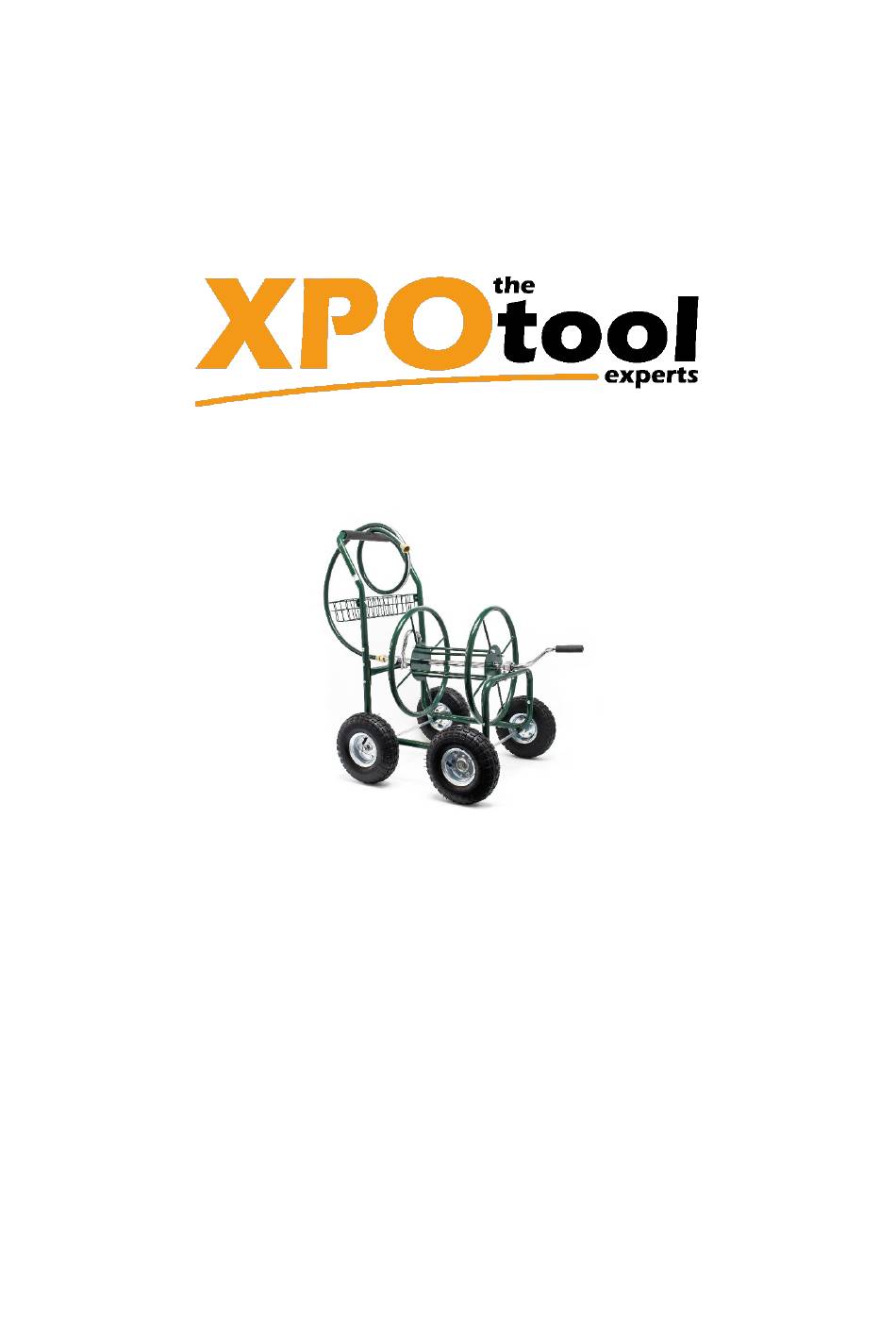

- Page 1 User’s manual Hose Reel Cart 62806 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 62806 Page 2 The Tool Experts 07 2022-1...
- Page 3 Look out for holes and other dangers in the ground. Follow the maintenance and lubrication instructions, as stated in this user’s manual. Always wear robust shoes. Do not wear loose clothing that could get caught in moving parts. Parts list https://www.XPOtool.com Item 62806 Page 3 The Tool Experts 07 2022-1...
- Page 4 Use two sets of M6×35 screws to mount the front crank frame to the side frame. Then use four sets of M6×35 screws to attach the cross bar to the side frame. 2. Slide the axles through the flaps of the underside of the side frame. https://www.XPOtool.com Item 62806 Page 4 The Tool Experts 07 2022-1...
- Page 5 № Name Cross bar Front crank frame Side frame Axles Step 2 Use a large 12 mm washer and a splint to mount the wheels. https://www.XPOtool.com Item 62806 Page 5 The Tool Experts 07 2022-1...
- Page 6 M8 nylock nuts and washers Fix the hose coupling to the middle hub by using the varnished U-shaped holder and the set of M8 screws. № Name U-shaped holder Hose coupling https://www.XPOtool.com Item 62806 Page 6 The Tool Experts 07 2022-1...
- Page 7 In case rust forms, slightly grind the rusty spots and spray them with varnish. Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 62806 Page 7 The Tool Experts 07 2022-1...
