Trek TrekStore secure ThumbDrive User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TREK Technology (S) Pte Ltd
New Age Storage Device
TM
User's Manual
(Rev 1.2 30/11/2001)
TREK Technology (S) Pte Ltd
30 Loyang Way #07-13/14/15 Loyang Industrial Estate Singapore 508769
http://www.trekstor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TrekStore secure ThumbDrive and is the answer not in the manual?

Questions and answers

Related Manuals for Trek TrekStore secure ThumbDrive

Summary of Contents for Trek TrekStore secure ThumbDrive

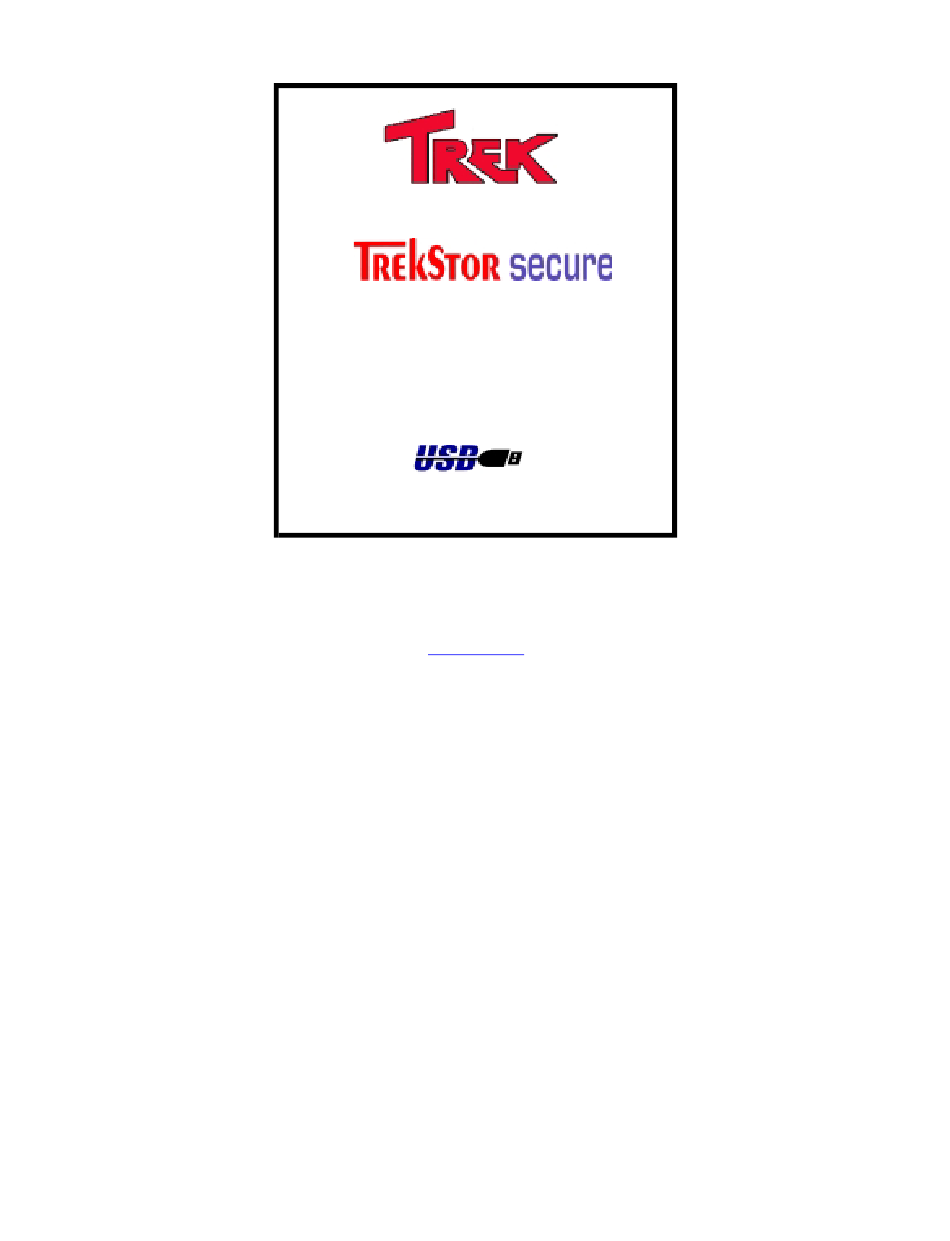

  • Page 1 TREK Technology (S) Pte Ltd New Age Storage Device User's Manual (Rev 1.2 30/11/2001) TREK Technology (S) Pte Ltd 30 Loyang Way #07-13/14/15 Loyang Industrial Estate Singapore 508769 http://www.trekstor.com...

  • Page 2: Table Of Contents

    AND WIN XP THUMBDRIVE SECURE SCAN DISK CHANGING THE SECURITY PASSWORD THUMBDRIVE SECURE SPECIFICATIONS THUMBDRIVE SECURE FAQ & TROUBLESHOOTING USB IF (IMPLEMENTATION FORUM) WEBSITE TRADEMARK, WARRANTY AND CERTIFICATION INFORMATION LICENSE GRANT CONTACTING TREK _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 3: Thumbdrive Secure Features

    Hot Plug (Plug and Play) via USB port. • No mechanical drive, well-integrated smart removable Storage Device. • Easy to use and install. • Compact, light and very low power consumption. • Capacity: 8MB/16MB/32MB/64MB/128MB. _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 4: Thumbdrive Secure System Requirements

    OS Platform Requirements • Windows98/98SE (Second Edition), • WindowsME (Millennium Edition), • Windows2000 or WindowsXP. USB Host controller Requirements • UHCI - Universal Host Controller Interface • OHCI - Open Host Controller Interface _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 5: Thumbdrive Secure Driver Installation

    Installation Win98/98SE, Win ME, Win 2000 and Win XP. Files list Trek.mpd, Trek.sys, Trek2k.sys, TrekXP.sys, TrekHdc.INF, TrekUsb.inf, Treks32.dll, Treksmon.exe, Trekssec.exe and usbinit.exe All these files are located on the installation media, and they can also be downloaded from the website http://www.trekstor.com...
  • Page 6 USB port, an unknown device has been found and the following dialog box "Add New Hardware Wizard" (Fig 3.2.1) is evoked. To install the drivers, press "Next", otherwise press "Cancel" button. Fig. 3.2.1 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 7 New Age Storage Device Page 6 of 37 _____________________________________________________________________________ ____________________ Dialog box (Fig. 3.2.2) shows how Windows search for the ThumbDrive Secure drivers. If installation is to be continued, press “Next” button, otherwise press “Cancel” button. Fig. 3.2.2 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 8 Key in “D:\ThumbDrive Secure\Win98” in the box or press “Browse” button to browse for the location. If installation is to be continued, press “Next” button, otherwise press “Cancel” button. Fig. 3.2.3 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 9 If installation is to be continued, press “Next” button, or to go back to the previous dialog box press “Back” button, otherwise press “Cancel” button. Fig 3.2.4 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 10 If the password is not correct, another dialog box (Fig 3.2.5b) will evoke, informing that the wrong password was entered. Press “OK” button to close the dialog box and try again. Fig 3.2.5b _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 11 ThumbDrive Secure driver. If installation is to be continued, press “Finish” button, otherwise press “Cancel” button. Fig. 3.2.6 When the installation of ThumbDrive Secure driver has successfully completed, another ThumbDrive Secure Controller needs to be installed. _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 12 Another “Trekstor-secure Controller” has been found and the following dialog box “Add New Hardware Wizard” (Fig. 3.2.7) is evoked. If installation is to be continued, press “Next” button, otherwise press “Cancel” button. Fig. 3.2.7 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 13 New Age Storage Device Page 12 of 37 _____________________________________________________________________________ ____________________ Dialog box (Fig. 3.2.8) shows how Windows search for the ThumbDrive Secure Controller. If installation is to be continued, press “Next” button, otherwise press “Cancel” button. Fig. 3.2.8 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 14 Key in “D:\ThumbDrive Secure\Win98” in the box or press “Browse” button to browse for the location. If installation is to be continued, press “Next” button, otherwise press “Cancel” button. Fig. 3.2.9 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 15 If installation is to be continued, press “Next” button, or go back to the previous dialog box by pressing “Back” button, otherwise press “Cancel” button. Fig. 3.2.10 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 16 WARNING: When you want to remove ThumbDrive Secure from USB port, make sure that the LEDS on the ThumbDrive Secure are not blinking. This is to ensure that files/data will not be lost. _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 17 USB port, an USB device has been found and the following dialog box "Found New Hardware Wizard" (Fig 3.3.1) is evoked. To install the drivers, press "Next", otherwise press "Cancel" button. Fig. 3.3.1 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 18 New Age Storage Device Page 17 of 37 _____________________________________________________________________________ ____________________ Dialog box (Fig. 3.3.2) shows how Windows search for the ThumbDrive Secure drivers. If installation is to be continued, press “Next” button, otherwise press “Cancel” button. Fig. 3.3.2 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 19 Dialog box (Fig. 3.3.3) shows where to locate the ThumbDrive Secure drivers. Select item “Specify a location” and de-select the rests. If installation is to be continued, press “Next” button, otherwise press “Cancel” button. Fig. 3.3.3 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 20 _____________________________________________________________________________ ____________________ Key in “D:\ThumbDrive Secure\Win2000” in the box (Fig. 3.3.4) or press “Browse” button to browse for the location. Press “OK” button to continue or “Cancel” button to quit. Fig. 3.3.4 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 21 If installation is to be continued, press “Next” button, or to go back to the previous dialog box press “Back” button, otherwise press “Cancel” button. Fig 3.3.5 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 22 (Refer to Fig 3.2.5b) Dialog box (Fig. 3.3.6) shows that Windows has finished the installation of ThumbDrive Secure driver. If installation is to be continued, press “Finish” button, otherwise press “Cancel” button. Fig. 3.3.6 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 23: Thumbdrive Secure Scan Disk

    Plug in your ThumbDrive Secure into the USB port and dialog box (Fig 4.1) will evoke as usual. Key in your password and press “Scan” button to begin the scanning. Fig 4.1 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 24 'Cancel' to discontinue. WARNING: As shown in Fig 4.2, this is a destructive scan and all data will be erased. You are advised to have backup for all data.) Fig 4.2 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 25 Scanning begins, as shown in Fig 4.3. Scanning of 16MB ThumbDrive Secure takes approximately 2 minutes. Scanning of 32MB ThumbDrive Secure takes approximately 4 minutes. Scanning of 64MB ThumbDrive Secure takes approximately 8 minutes. Fig 4.3 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 26 ThumbDrive Secure from the USB port and disable the write protection. Plug in and try again. Fig 4.5 NOTE: Always plug out ThumbDrive Secure from the port before switching the write protection lock on of off. _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 27: Changing The Security Password

    ThumbDrive Secure. Plug in your ThumbDrive Secure into the USB port and dialog box (Fig 5.1) will evoke as usual. Press “Change” button to begin the password change. Fig 5.1 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 28 (Fig 5.2). Press “OK” button to confirm or “Cancel” button to cancel the change. Current password in use. New password wanted Confirm new password Fig 5.2 _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 29 Plug out ThumbDrive Secure from the USB port and disable the write protection. Plug in and try again. Fig 5.3 Warning : (i) Password is case-sensitive, and (ii) Do not forget the password that you have created. _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 30: Thumbdrive Secure Specifications

    Data Retention 10 years Write Protection Yes, with write protection switch Passwords Protection Max 15 Characters 1 LED built-in (green) LED on: ThumbDrive Secure connected and enumerated LED Blinking: Data receiving or transmitting _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...
  • Page 31 ** These are nominal values. Due to the characteristics of flash memory chip, bad memory bits or blocks may be present. Factory specifies that actual memory is not less than 95% of nominal on delivery. _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 32: Thumbdrive Secure Faq & Troubleshooting

    PC platforms and software settings, we cannot be sure that it works on every PC out in the market. Users have to check with the system manufacturer or distributor on how stable their USB host is and their compatibility. _____________________________________________________________________________ ____________________ TREK Technology (S) Pte Ltd http://www.trekstor.com/...

  • Page 33: Usb If (Implementation Forum) Website

    All other trade names referenced in this manual are the service mark, trademark, or register trademarks of their respective manufacturers. Trek reserves the right to change specifications without any notice. Copyright  2000 Trek Technology (S) Pte Ltd. Printed in Singapore. _____________________________________________________________________________...
  • Page 34 Trek's warranty as set forth shall not be enlarged, diminished or affected by, and no liability shall arise out of, Trek's rendering of technical advice or service in connection with your order. The warranty set forth above is not assignable by you.

  • Page 35: License Grant

    LICENSE GRANT This is a license, not a sales agreement, between you, the end user, and TREK Technology (S) Pte Ltd. Trek grants to you a non-exclusive, non-transferable (except as provided below) license to use the copy of the software enclosed in this envelope and the accompanying documentation in accordance with the terms set forth in this License Agreement.
  • Page 36 Trek which, if given, is subject to the transferee’s consent to the terms and conditions of this license; or d.
  • Page 37 (1) year from the date of shipment by Trek to you. Trek shall, at its option and cost, either repair or replace the disk with a new or reconditioned disk provided the disk is...

  • Page 38: Contacting Trek

    ThumbDrive Secure User's Manual New Age Storage Device Page 37 of 37 _____________________________________________________________________________ ____________________ CONTACTING TREK Head Office Trek Technology (S) Pte Ltd 30 Loyang Way #07-13/14/15 Loyang Industrial Estate, Singapore 508769 Tel: 65-5466088 Fax: 65-5466066 Email: sales@trekstor.com Website: http://www.trekstor.com http://www.trek2000.com.sg...
