Summary of Contents for RELM BK RADIO T58

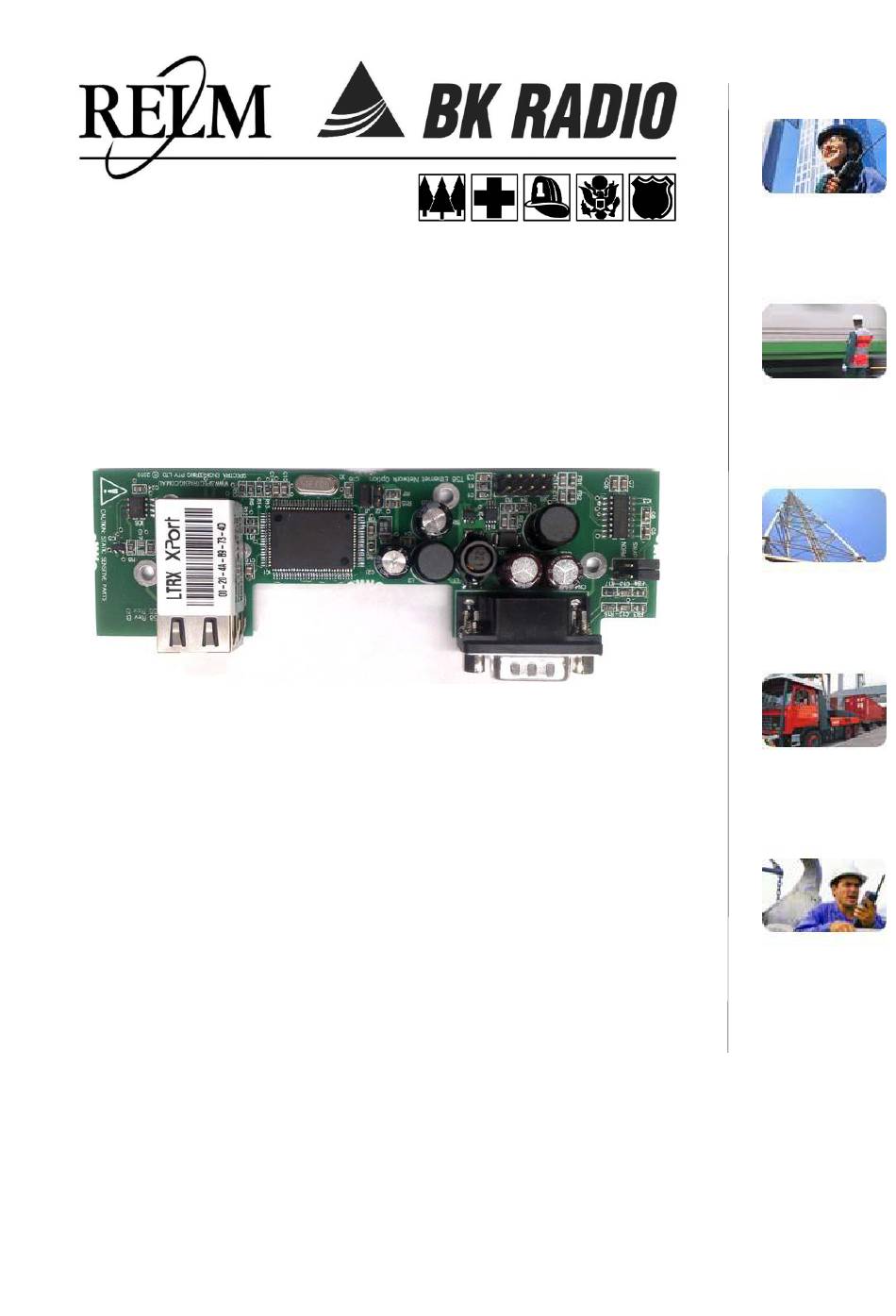

Page 1 Option Board T58 Ethernet Option Board Technical Manual...
Page 3 Technical Manual RELM Wireless Corporation 7100 Technology Drive West Melbourne, FL 32904 Front Desk: (321) 984-1414 Sales: (800) 821-2900 Service: (800) 422-6281 www.RELM.com Manual Revision 1.0.0 June 2010 In order to continually improve our products, Spectra Engineering Pty Ltd reserves the right to alter, without notice and at any time, the equipment and specifications described in this document.
Page 5 Technical Manual Record of Changes Any changes to this manual are recorded on this list. Spectra Engineering may issue replacement pages to you from time to time. If any updates are issued, you will also receive a replacement for this page. Date Version Chapter Changes...
Page 6 T58 Technical Manual SAFETY SUMMARY Although there are no dangerous mains voltages present within the equipment, the following general safety precautions as would normally apply, should be observed during all phases of operation, service and repair of this equipment. AROUND THE EQUIPMENT To minimise any possible shock hazard from an external power supply or lightning strike, the chassis or equipment cabinet must be connected to an electrical ground.
Page 7: Table Of Contents
Technical Manual Table of Contents Table of Contents General Description ................8 Overview ..................8 T58 External Connections ............9 1.2.1 Ethernet Connector ............9 Installation ..................... 10 Setup 11 Connection ................. 11 ‘T58Programmer’ System Requirements ........11 ‘T58Programmer’ Installation ............ 11 T58Programmer .................
Page 8 T58 Technical SMTP (Simple Mail Transfer Protocol) ........16 SMTP Authentication..............17 T58Programmer ................. 17 MXTOOLSRD ................17 Appendices ..................... 18 Drawings ..................18 2010 ision...
Page 9 Technical Manual Table of Contents List of Tables Table 1-1 Ethernet Port Pin Connections..............9 Table 1-2 Ethernet Port Link LED Functions............. 9 Table 1-3 Ethernet Port Activity LED Functions ............9 Table 5-1 Drawings ....................18 List of Figures Figure 1-1 T58 Option Board ..................
Page 10: General Description
T58 Technical 1. General Description 1.1 Overview The T58 Ethernet Option is a small circuit board that is installed inside the MX800 transceiver to allow diagnostic data from the MX800 and remote control function of the radio to be sent over a UTP Ethernet link. Unlike the previous T34 option it replaces, T58 also supports both normal serial communication from application such as MXTOOLS3 to the radio through its serial port and Ethernet communication simultaneously.
Page 11: T58 External Connections
Technical Manual 1.2 T58 External Connections 1.2.1 Ethernet Connector The ethernet connector when the T58 is installed inside the MX800 is located at the bottom left hand side of the MX800 rear panel. Link Status Activity Pin 8 Pin 1 Figure 1-2 Ethernet Port Connector Rear View The pin functions provided on this connector are shown in Table 1-1 below.
Page 12: Installation
T58 Technical Manual 2. Installation The T58 board is installed in the place of CN4 on the rear panel of the MX800. It is mounted by the three standoffs present on the chassis of the MX800. Because it uses these standoffs for mounting, the T58 board cannot be installed when the T04/05 or similar options are installed.
Page 13: Setup
Technical Manual 3. Setup The T58 option board has a number of parameters that need to be set for normal operation. These parameters are set using the T58Programmer application. 3.1 Connection The T58’s serial port must be connected to a PC serial port using the cross over (null modem) serial cable.
Page 14: T58Programmer
T58 Technical Manual 3.4 T58Programmer After you have successfully installed T58Programmer, start the application from the Start menu. From this screen you can access and set the various operating parameters of the T58 Option board. 3.4.1 IP Address The T58 comes factory programmed to 192.168.1.254 This IP must be changed to the desired IP address before connection to a network.
Page 15: Net Mask
Technical Manual 3.4.3 Net Mask The net mask can be set to match the subnet of the connected network. Please refer to your network administrator for more information. 3.4.4 Passwords When using the MXTOOLS Remote Diagnostic (MXTOOLSRD) software to connect to the T58, passwords can be set so that only authorised users can access the diagnostic information.
Page 16: Smtp Server (Email Config)
T58 Technical Manual 3.4.9 SMTP server (Email Config) The IP address of the email/SMTP server. SMTP server routes SMTP messages throughout the Internet to e-mail servers that provide message repositories for incoming mail. 3.4.10 Resolve IP/Hostname button T58 will try to connect to the DNS server in order to resolve the IP address or Hostname of the SMTP server specified in the text box control.
Page 17: Operation
Technical Manual 4. Operation 4.1 Remote Diagnostics Remote Diagnostics function of the T58 can be utilized through MXTOOLSRD application or web server diagnostics using web browser such as Internet Explorer, Mozilla Firefox, etc. 4.2 Remote Control The Remote Control functions can only be done through MXTOOLSRD application.
Page 18: Technical Description
T58 Technical Manual 5. Technical Description Please refer to the schematic diagram drawing number CS413 in Section 5.1 of this manual. 5.1 Ethernet Port The Ethernet port is an integral part of IC1. IC1 contains the CPU, memory, transformers, UART and firmware all within the one package that provides Ethernet &...
Page 19: Smtp Authentication
Technical Manual 5.6 SMTP Authentication It is an extension of the Simple Mail Transfer Protocol whereby an SMTP client may log in, using an authentication mechanism chosen among those supported by the SMTP server. The Authentication mechanism supported in T58 is ‘AUTH LOGIN’. Note that T58 does not support SSL (Secure Socket Layer) protocol.
Page 20: Appendices
T58 Technical Manual 6. Appendices 6.1 Drawings Drawing No. Description CS413? T58 Option board schematic diagram T58 component location overlay Table 5-1 Drawings © SPECTRA ENGINEERING 2010 Revision 1.0.0...
