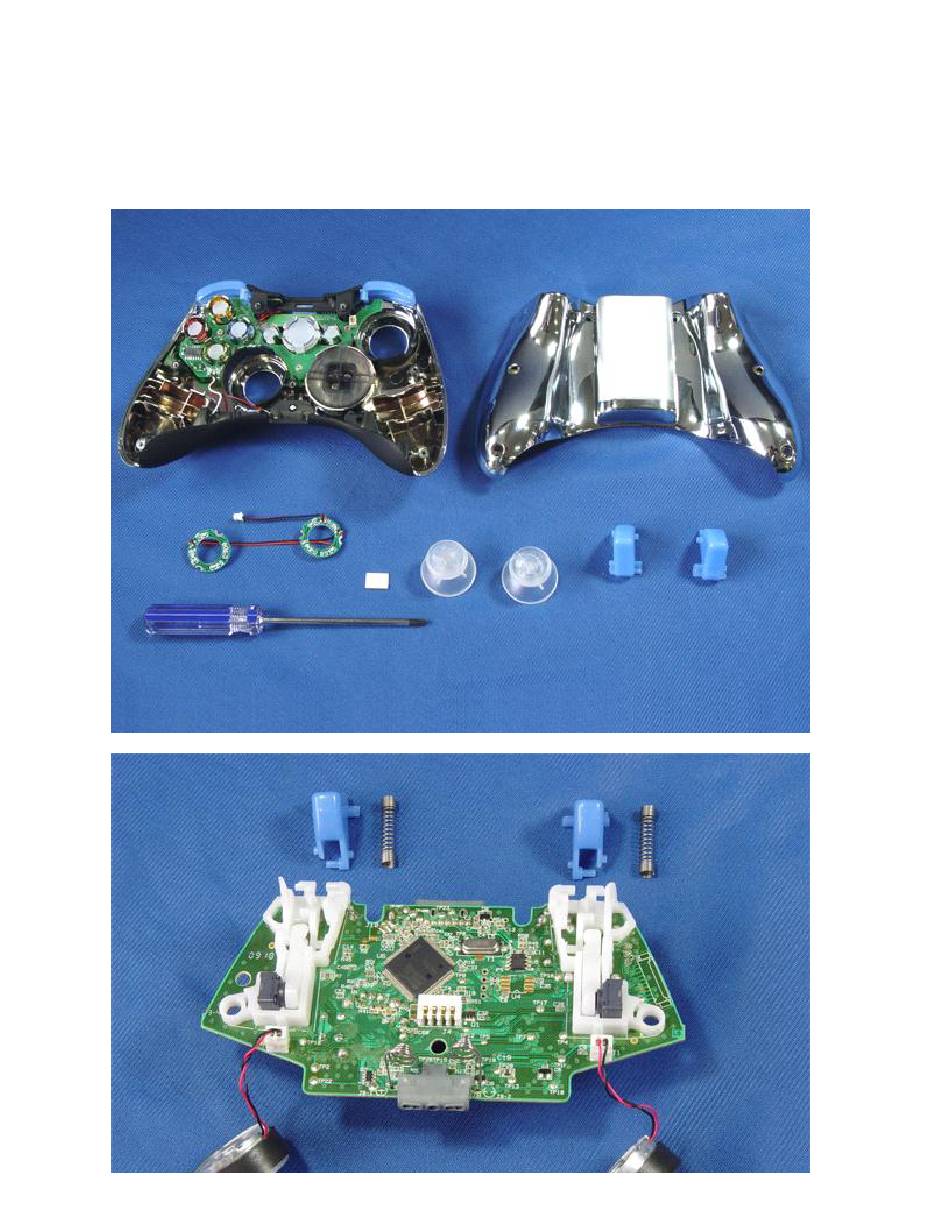

- Page 1 XCM Shell With LED Thumbsticks Guide Tuesday, November 02, 2010 8:06 AM Wireless shell with LED analog stick_installation.1 1.installation parts. 2.The RT and LT buttons. XCM Shell w LED Page 1...
- Page 2 3.As shown in the diagram, install the RT and LT buttons step by step. 4.Remove the double-side tape. XCM Shell w LED Page 2...
- Page 3 4.Remove the double-side tape. 5.Stick the PCB to the these 2 places. 6.Soldering this 4 points. XCM Shell w LED Page 3...
- Page 4 6.Soldering this 4 points. 7.Follow the direction of the arrow indicated to lay down the wires. Pasted from <http://www.xcm.cc/wireless_shell_with_led_analog_stick_installation.htm> XCM Shell w LED Page 4...
- Page 5 Wireless shell with LED analog stick_installation.2 8.Using the adhesive tape stick the cable to this position. 9.As shown in the photo, soldering this 2 wires. XCM Shell w LED Page 5...
- Page 6 9.As shown in the photo, soldering this 2 wires. 10.Plug the power cord to this socket. XCM Shell w LED Page 6...
- Page 7 11.As shown in the diagram, push the back of on-live button close to this point, make sure the button working properly before closing the controller shell. 12.Close the controller bottom, put on the 7 screws then cover the battery pack back to the place.
- Page 8 LED light button (on/off the LED light). Pasted from <http://www.xcm.cc/wireless_shell_with_led_analog_stick_installation.2.htm> XCM Shell w LED Page 8...
- Page 9 Pasted from <http://www.xcm.cc/wireless_shell_with_led_analog_stick_installation.2.htm> XCM Shell w LED Page 9...
