Summary of Contents for Share Technology PSDK 102S V2

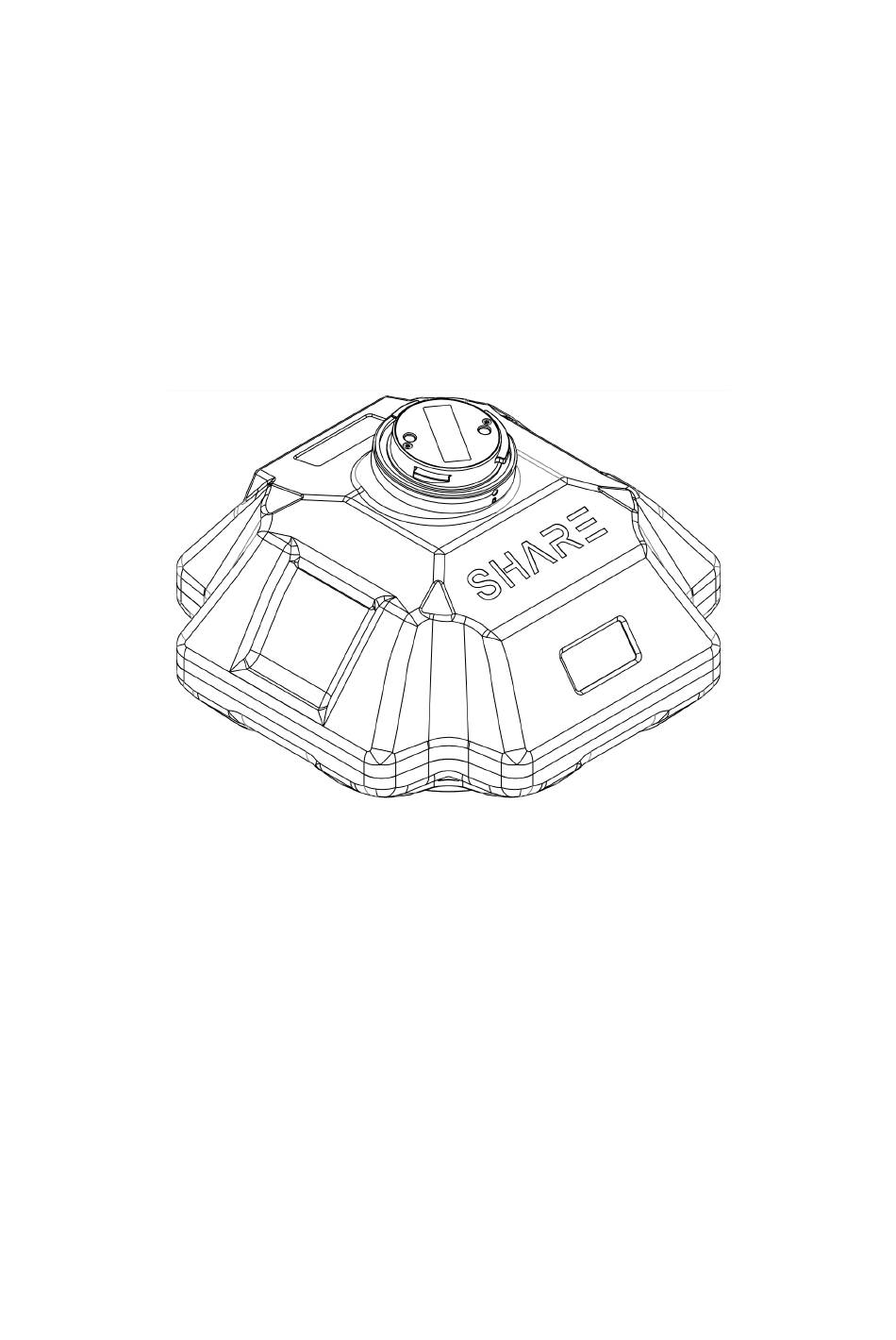

- Page 1 PSDK 102S V2 - 5 Lens Oblique Camera User Manual V1.3.2 2021.09 深圳赛尔智控科技有限公司 SHENZHEN SHARE UAV TECHNOLOGY Co., Ltd.
- Page 2 Disclaimer and Warning Please read this enCre document carefully to ensure proper configuraCon before use. The copyright of this document and all other collateral documents belong to SHENZHEN SHARE UAV TECHNOLOGY CO., LTD. (abbreviated as “SHARE UAV”). SHARE UAV has the final interpretaCon right of this document and all other collateral documents. SHAR EUAV has right to update, modify or terminate the content of this document without prior noCce. For update informaCon, visit website hUp://www.shareuavtec.com/en/ and click on the product page for this product. Do not allow people under the age of 18 to use the PSDK 102S V2. Do not modify or disassemble the PSDK 102S V2. SHARE UAV accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful pracCces including, but not limited to, those set forth in this manual. By using SHARE UAV products, you hereby signify that you have read this disclaimer and warning carefully and that you understand and agree to abide by the terms and condiCon herein. You agree that you are solely responsible for your own conduct while using this product, and for any consequences thereof. You agree to use this product only for purposes that are proper and in accordance with all applicable laws, rules, and regulaCons.
-
Page 3: Table Of Contents
Contents 2. Product Overview ..........................1.PSDK 102S V2 IntroducCon ...................... 2.Features ........................... 1.3 In the box ..........................1.4 Parameter ..........................2.InstallaCon ............................2.1.Camera IntroducCon ......................2.2.Payload InstallaCon/Removal ....................3.Camera OperaCon ..........................3.1.Powering On .......................... 3.2.Taking Photos ........................3.3.DJI Pilot Sefng ........................3.4.Repair ............................ 4.Share Data Manager ........................4.1.IntroducCon .......................... 4.2.OperaCon environment ......................4.3.Workflow ..........................4.4.Sojware InstallaCon ......................4.6 FuncCons ..........................4.6.1 Copy Flights ........................ 4.6.2 Clean Flights ....................... 4.6.3 Firmware Upgrade ...................... 4.6.4 Camera InformaCon .................... - Page 4 6.2 Ajer-sales Service .........................
-
Page 5: Product Overview
2. Product Overview The Share UAV PSDK 102S aerial oblique camera is equipped with five individual 24.3- megapixel sensors, which can break through the limitaCons of single-angle images on tradiConal mapping camera. By mounCng mulCple camera sensors on the same flying plalorm, it will acquire imagery with more spaCal informaCon from mulCple angles, verCcal and Clt providing more details and textures of captured features. -
Page 6: In The Box
* DJI Terra supports high-precision POS file import without laying ground control points * Camera firmware is automaCcally upgraded online through Share UAV Data Manager * SHARE UAV Data Manager sojware provides flight data management of captured imagery * Real-Cme image transmission and telemetry data can be viewed on the DJI RC/App * Five fully closed-loop intelligent detecCon system * USB Type-C interface for fast data transfer of captured imagery * Professional mapping system provides a high capture rate of imagery 1.3 In the box Items O b l i q u e ProtecCon D a t a L e n s SkyPort W i p e U s e r Camera Case Cable Cover Cover Cloth Manual 2pcs... -
Page 7: Parameter
1.4 Parameter PSDK 102S V2 Aerial Oblique Camera Parameters QTY of Lens 5 pcs Sensor parameters Power on/off Auto on/off Power supply SkyPort integrated E l e c t r i c a l Endurance Power supply by drone parameters Data Transfer USB Type-C EffecCve pixels 24.3 million (total 120 million pixels) Sensor size APS-C (23.5*15.6mmm) Pixel size 3.9um Image resoluCon 6000 x 4000 Camera parameters Tilt degree 45° Storage 1280 GB Exposure mode Autopilot trigger Exposure Cme ≥0.8s Focal length... -
Page 8: Payload Installacon/Removal
back-view, and the drive leUer is named ajer the lens Angle orientaCon, which is opposite to the lens mounCng posiCon. The top of the camera is equipped with DJI SkyPort interface, which is compaCble with DJI M300 RTK. Through one interface, it integrates power supply, data transmission, RTK signal, graph transmission, mounCng and other funcCons. The integrated DJI SkyPort has been designed with a slope that compensates for the angle of the aircraj while in forward flight to improve data capture. 2.2.Payload InstallaGon/Removal Interface of PSDK 102S V2 InstallaCon steps： (1)To remove SkyPort cover of the drone, press and hold the release buUon and turn the cover so it can be removed. (2)Remove SkyPort cover of the camera, align the white point of the camera with the red point of the drone, and embed it in the installaCon posiCon. (3)Rotate the camera to the lock posiCon, align the red dots, the camera is installed. Camera installaCon Removal steps: (1)To remove camera, press and hold the release buUon, rotate the camera in the opposite direcCon unCl the red point is aligned with the white point, then remove the camera; (2)Replace the SkyPort covers and lens cover. -
Page 9: Camera Operacon
3.Camera OperaGon 3.1.Powering On The camera is powered directly from the craj and is switched on and off automaCcally. Taking the installaCon of DJI M300 RTK as an example, steps of power on: （1） Mount the PSDK 102S on the DJI drone, and make sure the camera is secured ； （2）Turn on the drone, the camera will start automaCcally and enter the self-test. The total startup duraCon of the camera will be ~35s, the camera will beep once the startup is completed. 【During the startup process, the camera display successively displays: LOGO and firmware version → iniCalizaCon → starCng up → startup completed】... -
Page 10: Taking Photos
Camera status window （5） During the camera start up process, the Cme sefng or camera sefng interface will appear on the image transmission interface. At this Cme, the camera iniCalizaCon will automaCcally switch the interface. Ajer the camera is turned on and self-test has been completed, the image transmission display will show the camera interface. 3.2.Taking Photos Pic 5 Pilot screen（indoor） Take working with DJI M300RTK for example, camera is on，Lej top window shows the status of camera, 5 Cmes trigger and each lens have take 5 photos. The lej boUom window shows the real-Cme image of the down view lens. In this example the indoor light is insufficient and the lej boUom image is black. -
Page 11: Dji Pilot Sefng
3.3.DJI Pilot SeYng Take working with DJI M300RTK for example， Using DJI Pilot for route planning and set flight parameters. Pic 6 Pilot App 3.3.1.DJI Pilot Mission Planning - PSDK 102S V2 1) Open DJI Pilot 2) Select Mission Flight 3) Create a route 4) Mapping Mission 5) Select Camera 6) Select PSDK 102S 7) Input mission parameters a) Flight Height b) Speed c) Overlap d) Margin e) Photo Capture Mode f) Other parameters as required 8) Plan flight area... - Page 12 3.3.2 PSDK 102S V2 parameter If using a third party app, camera parameters may need to be set manually. Photo resoluCon (W) Sensor size (W) Focus 6000px 23.5mm 25.0mm PSDK 102S V2 Photo resoluCon (H) Sensor size (H) Minimum interval 4000px 15.6mm 1.0s Click save ajer sefng done。 Pic 7 Create new camera PSDK 102S V2 parameter 3.3.3 Payload seYng Enter the payload sefng menu, which has those funcCons: Items FuncGons Real-Cme data ON/OFF Real-Cme data window hide/show 【default: show】 ENTER Enter buUon, using when the camera reports an error ON/FF Control camera on/off 【default: off】 ShuUer Change shuUer speed (640/800/1000/1250) 【default: last set】 Test Control camera 1/s shooCng 【default: off】...
- Page 13 Pic 8 Payload sefng Pic 9 Display of Pilot when working As shown in Pic 9, the working environment has relaCvely weak light intensity. The user can adjust the camera's shuUer speed according to the actual situaCon to meet the camera's sufficient amount of light to ensure the quality of the photo. The camera saves the shuUer speed used last Cme by default.
-
Page 14: Repair
3.4.Repair 1) Common problems might happen when using oblique camera PSDK 102S V2. A. Payload cannot find the image database file B. Image database file error C.Payload cannot write in the storage card correctly 2)When the above errors happen, there are two methods to repair resolve the issue. A. AutomaCc repair: user can restart the device, and the camera will automaCcally iniCate the repair. B. Manual repair: Click the ENTER buUon in the payload sefngs and confirm the selecCon according to the instrucCons. 4.Share Data Manager 4.1.IntroducGon Share Data Manager is a data processing auxiliary sojware designed for oblique photography camera, designed to improve the efficiency of oblique photography in the industry, simplify the data pretreatment operaCon. The main funcCons include flight management, copy/ clean photo data, write geographic locaCon informaCon to photos, generate engineering files,... - Page 15 4.4.So]ware InstallaGon Once the Share UAV Data Manager has been downloaded, open the file and follow the prompts to complete the installaCon. All installaCon sefngs will be set to the default. Once the installaCon is complete, Share Data Manager creates two shortcuts on the desktop: "Share Data Manager" and "Share Toolbox".
- Page 16 Please log in to the website below to view the latest online tutorial of Share Data Manager： hUp://bbs.shareuavtec.com/upload/sojware/ShareElfInstaller.exe 4.5 So]ware interface Open Share Data Manager, select the camera model as PSDK 102S V2, and select the UAV that was used to conduct the flight with. Connect the camera and computer with USB Type-C data cable. The camera does not need to be powered on during data transfer. The first Cme the camera is connected to the computer It will automaCcally install drivers to allow data transfer and communicaCon, please wait paCently. Ajer the camera sojware is connected, the device details screen is automaCcally displayed. The home screen consists of three parts: The funcCon list is displayed on the lej. The upper part of the right side shows the connecCon state and capacity of the memory of each lens; The lower right side shows the flight sorCes, and when the mouse is placed over the sorCes it shows the number of POS and photos contained in the sorCes.
-
Page 17: Copy Flights
In the flight details, you can see the total number of photos and POS from all angles of the flight, as well as the details of the included photo locaCon data. Click on a row of photo data to see a thumbnail of the photo and detailed data on the right In the camera, the photos and POS data are stored separately. Through the Share Data Manager, the photos can be associated with the corresponding POS, and the POS can be wriUen into the photos when copying data 4.6 FuncGons 4.6.1 Copy Flights Copying flight is the copying of POS data and photo data from one or more flights from the camera to the computer and preprocessing for modeling. The process for copying flights is as follows: 1.Select flights to be copied, for example, 100_0001, 100_0002, 100_0003; 2.Click the copy buUon to enter the copy sefng interface... - Page 18 3.Copy Sefngs complete, click Start Copy to enter the copy process interface. The current copy progress and remaining Cme are displayed on the page.
- Page 19 4.Under normal circumstances, the copy is completed when the copy progress reaches 100%. At this point, all the images have been copied to the save folder and the stand project files have been generated. 5.Open folder and view the copied imagery data. There are several flight folders and an Excel file that can be imported into ContextCapture as a block file.
- Page 20 （6）Under each flight folder there are 5 folders and a text file, the text file is the original POS file, the five folders are named with the first leUer of "front, back, lej, right and down", storing photos from five perspecCves. Each parameter in the copy sefng screen must be set correctly to obtain the photos that meet the requirements. The specific meanings of sefng parameters are shown in the following table: Parameter Meaning Mandatory/Enable Target folder The target locaCon of images to be copied Yes Generate CC project Whether to generate excel files imported E n a b l e w h e n u s e C C file into CC modeling C C P r o j e c t fi l e The coordinate system used to import CC E n a b l e w h e n u s e C C coordinate system...
-
Page 21: Clean Flights
Write POS into photo Write longitude and laCtude informaCon Enable when use DJI Terra into the photo modeling KML file KML files are used to filter the photos of the aligned modeling area 4.6.2 Clean Flights Clearing flights is the funcCon of clearing old, captured imagery from the camera. The cleaning process is as follows: 1.Select “Clean Flight”;... - Page 23 4.When the cleaning progress reaches 100%, the formafng is complete. 【Attention】 (1)The old photo data in the camera should be removed by Share Data Manager. Manual deleCon of the photo data is not recommended. Manually deleCng data will cause the camera to fail to take pictures. (2)Once the data in the camera is removed, it cannot be restored. Therefore, before removing data, it is important to check whether the photos contained in the details of the flight are the ones to be deleted to avoid deleCng flights by mistake. (3)It is recommended that ajer exporCng the photo data, the original photo should be kept in the camera before the compleCon of the aerial triangulaCon, and then delete the photos in the camera ajer the aero triangulaCon is successful.
-
Page 24: Firmware Upgrade
4.6.3 Firmware Upgrade Share Data Manager can upgrade the camera firmware online. Click the firmware upgrade buUon on the lej of the sojware interface to enter the firmware upgrade funcCon interface. This feature can only be used if you are connected to the Internet, so we recommend that you stay connected to the Internet when using the Share Data Manager, so that you do not miss the latest firmware updates. The current firmware version and the latest firmware version of the camera are displayed on the upgrade screen. If there is a new firmware version, you can click "Download" buUon to upgrade. The downloaded firmware upgrade package is stored in the camera, and the upgrade will be completed automaCcally the next Cme the camera is powered on. 4.6.4 Camera InformaGon Before the camera disconnecCon, it will save the lens distorCon correcCon and default offset compensaCon parameter sefngs to the GPS drive on the camera. This informaCon is important for the pre-processing of photo data, which can be viewed in the Share Data Manager and can be alerted in case of unexpected data loss. Don't worry if you accidentally delete the camera info, we have saved an online backup for you, which can be downloaded to the camera using the Share Data Manager. -
Page 25: Camera Maintenance
5.Camera Maintenance When using the oblique camera, please pay aUenCon to the daily maintenance. 1)Avoid storing the camera in a place of extreme hot, strong vibraCon, strong magneCc and high humidity. 2)Please do not use detergent containing diluent or gasoline and other organic solvents to clean UV Lens. 3)When storing the camera, avoid long-term exposure of light to the lens. 4)Avoid bringing the equipment directly from cold places to warm places, to prevent moisture condensaCon. 5)The working temperature of the equipment is about - 10 ~ 50 ℃. It is not recommended to work in extremely cold and hot environment beyond the working temperature range. 6) Pay aUenCon to the cleaning and drying of DJI SkyPort connector and put on the protecCve when not aUached to the craj. 7)Camera shuUer is consumable item, under normal circumstances, the effecCve number of shuUer is about 200,000 Cmes; 200~250 thousand will occur shuUer faCgue, there is a risk of photo loss; Above 250 thousand, the camera has a high probability of losing the photo, not taking photos, slow reacCon, camera error and other phenomena. Ajer the number of camera... -
Page 26: Delivery
6. A]er sales 6.1 Delivery 1)All equipment delivered by SHARE UAV shall be packed in accordance with the standard protecCve measures for packaging and transportaCon. Such packaging shall meet the requirements for long-distance transportaCon, moisture resistance, shock resistance, rust prevenCon, etc. required according to the specific properCes of the equipment to ensure that the equipment arrived safely at the place of delivery. - Page 27 shall only undertake the delivery, maintenance and quality guarantee of Party A's goods within the territory of the People's Republic of China. 2) Warranty condiCons: Quality issues only. Devices with below condiCons will be out of warranty even if within warranty Cme: damaged, water damaged, out of order caused by improper usage, failure caused by mis operaCon or sojware/firmware parameter changes, or disassembled without authorizaCon etc. 3)Warranty service: RegulaCons on ajer-sales service of Share UAV Party A: Buyer of Products Party B: Shenzhen Share UAV Technology Co., LTD The ajer-sales service content shall refer to the ajer-sales service regulaCons of Share UAV; If you have any quesCons, please contact Shenzhen Share UAV Technology Co., LTD Ajer-sales service and technical support tel: 0755-23216686 (working days 9:00-18:00 Beijing Cme) Feedback...
- Page 28 Official Website YouTube FaceBook If you have any quesCons about the product Please contact us via email： INFO@SHAREUAVTEC.COM SHENZHEN SHARE UAV TECHNOLOGY CO.,LTD...
