Summary of Contents for King Innovation KING 95

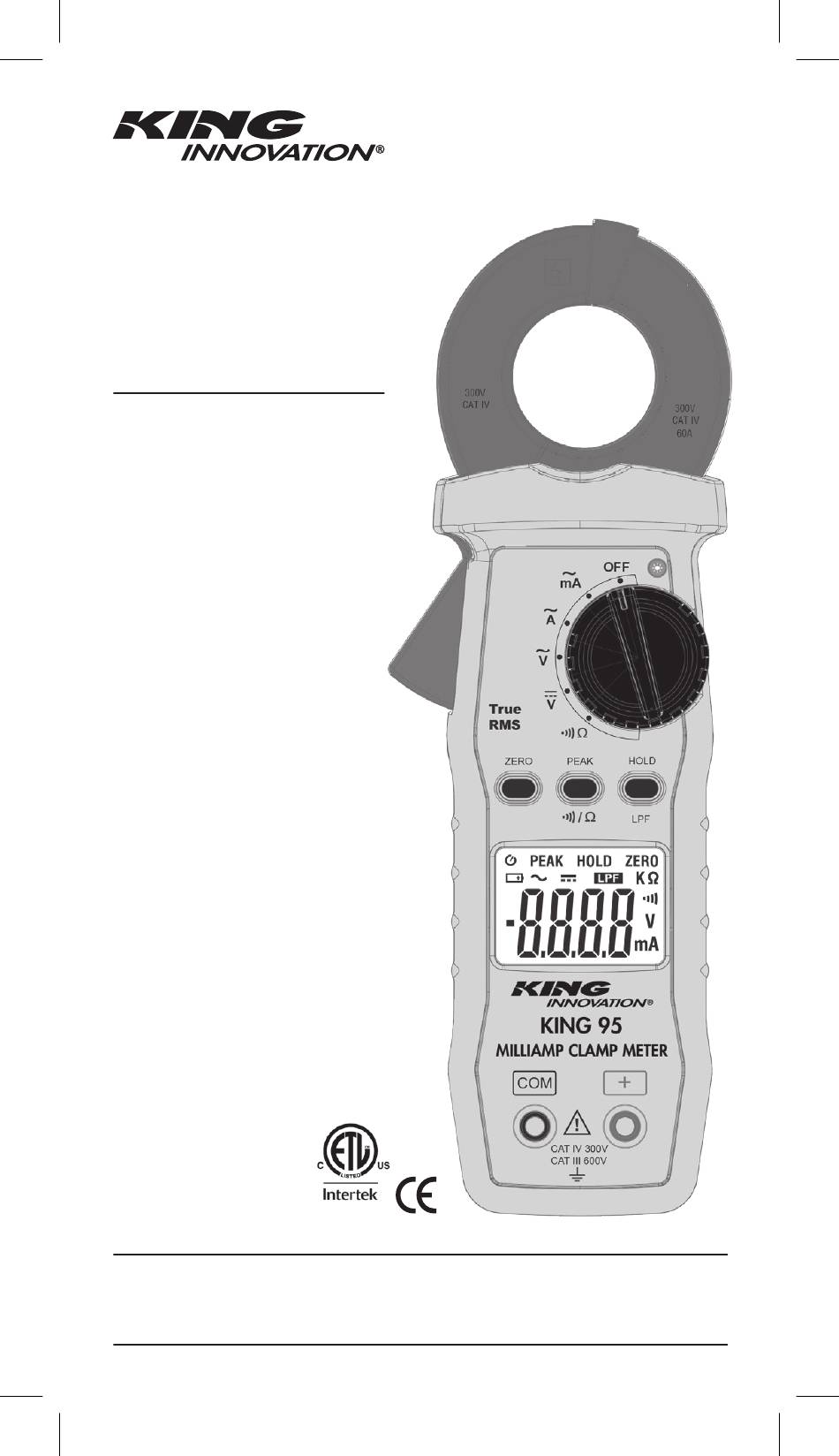

  • Page 1 #42095 KING 95 CLAMP METER True RMS Milliamp Clamp Meter 3131884 INSTRUCTION MANUAL...
  • Page 2: Table Of Contents

    Approvals 6-5 Resistance Measurement ........14 7. CHANGING THE BATTERY ........14,15 CONFORMS TO UL STD. 61010-1, 61010-2-032, 61010-2-033 8. MAINTENANCE ............15 CERTIFIED TO CSA STD. C22.2 #61010-1-12, 61010-2-032, 61010-2-033 8-1 Cleaning ..............15 3131884 KING INNOVATION KING INNOVATION...
  • Page 3: General Specification

    The King Innovation KING 95 Digital Milliamp Clamp Meter is + digit) at 23±5°C, ≤ 80 %RH. ideal for use in troubleshooting two-wire irrigation, landscape lighting and electrical systems. The KING 95 is for use in Safety Class - CAT III 600V indoor and outdoor dry locations.
  • Page 4: Continuity

    Voltage measurement indication 6.000KΩ 0.001KΩ 1.0% + 2dgts ZERO ZERO indication 60.00KΩ 0.01KΩ HOLD Data HOLD indication 600.0KΩ 0.1KΩ PEAK PEAK hold indication Low pass filter indication Continuity test indication Measurement unit Ω Resistance measurement indication Measurement unit KING INNOVATION KING INNOVATION...
  • Page 5: Description Of Front And Rear

    Indicator will appear and the display will ZERO. The 9 LCD Display reading is stored as reference value for the subsequent 10 COM Input Terminal measurement. 11 Positive Input Terminal Press the “ZERO” button again, to exit the ZERO mode. 12 Battery Cabinet KING INNOVATION KING INNOVATION...
  • Page 6: Backlight Function

    Before this measurement, disconnect any test leads from the meter for safety. 3-Phase 3-Wire System Single-Phase 2-Wire System In some cases wherein reading the display is difficult, press the HOLD button and read the result after the clamp is removed from the conductors. KING INNOVATION KING INNOVATION...
  • Page 7: Acv Measurement

    If the resistance is under 45 Ω, the beeper will sound continuously. NOTE: When measuring resistance in a circuit, make sure any power on the circuit is turned off and any capacitors are discharged. Short Circuit Open Circuit KING INNOVATION KING INNOVATION...
  • Page 8: Resistance Measurement

    “OFF” and disconnect test leads. Open the back cover using a screwdriver. Replace the old batteries with two new 1.5V (AAA Size) batteries. Close the back cover and tighten the screw before using the meter. KING INNOVATION KING INNOVATION...
  • Page 9 ©2020 King Innovation 42 N. Central Drive O'Fallon, MO 63366 www.kinginnovation.com MADE IN CHINA 800.624.4320 REV E 11/20...
