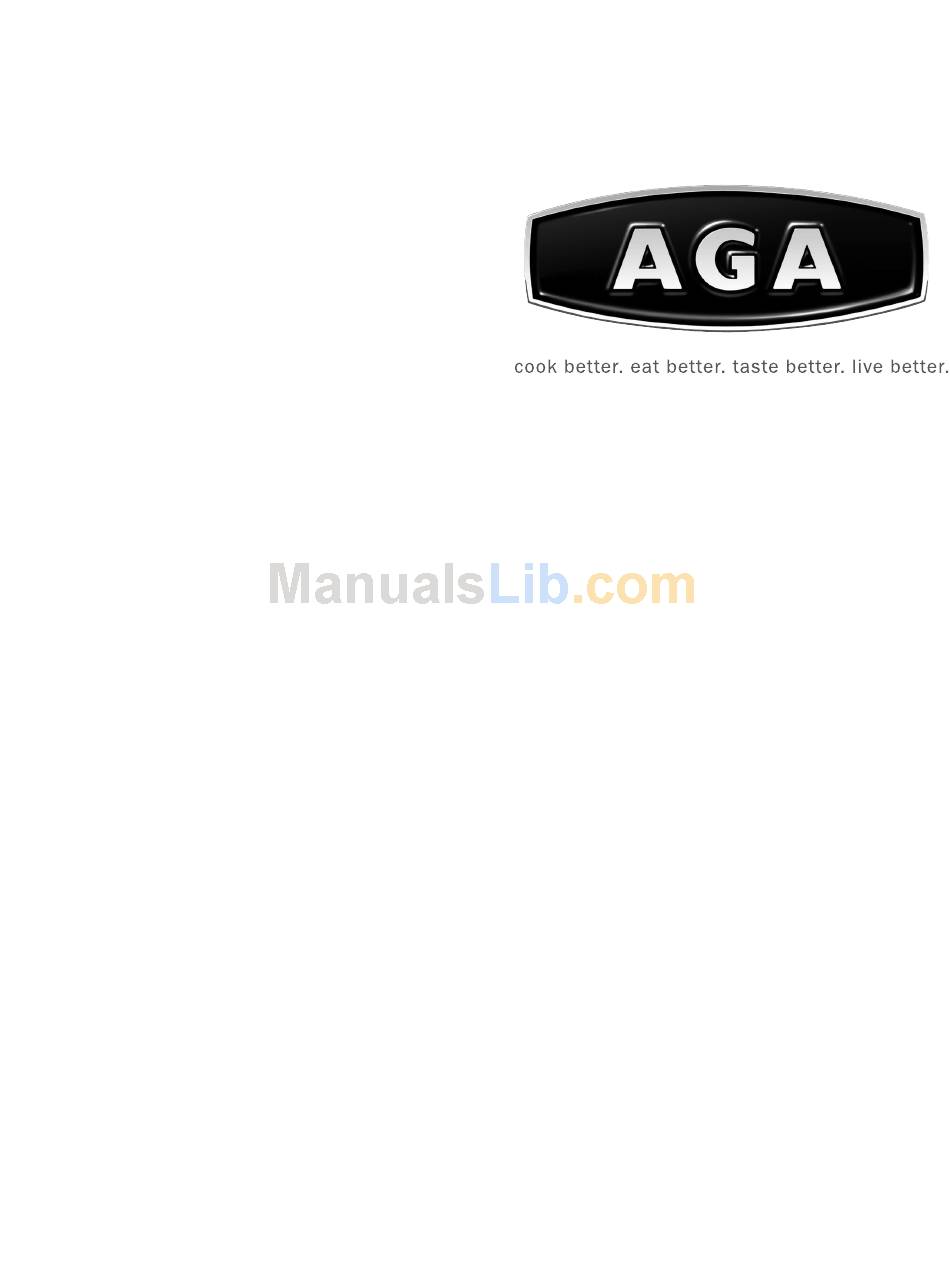

- Page 1 Aga 30AIM 115V Installation Operation & Maintenance Instructions...
-
Page 2: Table Of Contents
Starting Out Remove Packaging Your ice machine has been packed for shipment with all parts that could be damaged by movement securely fastened. Before installing the ice machine, be sure all packing materials and tape have been removed. Important Save the carton packaging until your ice machine has been thoroughly inspected and found to be in good condition. -
Page 3: Installation
Installation Select Location The proper location will ensure peak performance of your ice machine. Choose a location away from heat and out of direct sunlight. Best performance will be maintained when installed within the following parameters: Ideal Ambient Temperature Range built-in 55-80°F freestanding... -
Page 4: Installation: Drain Plumbing
Installation: Drain Plumbing figure 1 figure 2 figure 3 Gravity Drain Location * With optional filler kit All specifications and product design subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products. Drain Plumbing Your ice machine uses a gravity drain, (figure 1) that requires 5/8"... -
Page 5: Water Supply
Water Supply Water Supply This ice machine must be connected to a potable, active cold water supply line delivering water pressure at a minimum of 20 psi and maximum of 120 psi. • Water connection is made through a right angle garden hose fitting. -
Page 7: Caring For Your Ice Machine
Caring for Your Ice Machine Operation Your ice machine is unique in forming ice. It uses fractional freezing to form a slab of ice that is clear and has less mineral content than the water it is produced from. This is accomplished by running water over the cold evaporator plate which gradually freezes the water to produce the ice slab. -
Page 8: Cleaning Your Ice Machine
Caring for Your Ice Machine Cleaning Your Ice machine Some impurities will remain and build-up in the ice machine and stick to the ice machine's parts over time. This build-up must be removed for proper ice production, ice quality, and ice machine life. Your ice machine is equipped with a cleaning mode that will help in cleaning out these impurities. -
Page 9: Things To Remember
Things to Remember Things to Remember • Allow your ice machine to run for 24-48 hours to accu- mulate ice in ice machine's bin. • Unit will cycle often between ice production and ice harvest cycles. • Your unit will automatically shut down when the ice bin is full. -
Page 10: Obtaining Service
Obtaining Service Before Calling for Service Before calling for service, check the following items: • Make sure unit is plugged into outlet. • Check the outlet for power. Test outlet with lamp to make certain outlet has power. • Make sure ice machine's switch is in the "ON" position. -
Page 11: Troubleshooting One
Troubleshooting One Problem Possible Cause Unit does not operate. The unit is unplugged. Breaker is tripped or fuse is blown. Ice machine selector switch is in the "OFF" position. Unit operates but does not produce any ice. The unit has just been started and it has been less than 6 hours. -
Page 12: Troubleshooting Two
Trouble Shooting Two Problem Possible Cause Ice cubes are too small (less than 1/2 inch Low ice consumption. thick). Not enough water in reservoir. Distributor tube is restricted. Build up of deposits on evaporator plate. Inadequate drain system. Leaking drain valve. Room temperature is too warm. -
Page 13: Troubleshooting Three
Trouble Shooting Three Problem Possible Cause Ice is not clear. Low water level in reservoir. Softened water supply. Room temperature is too cold. Low ice production. Unit is running, has Low water level in reservoir. run over a 48 hour period, and there is lit- Distributor tube is restricted. -
Page 14: Troubleshooting Four
Troubleshooting Four Problem Possible Cause Ice cubes are sticking together. Ice consumption is low. Room temperature is too warm. Ice level is too high. The ice machine is not level. Room temperature is too warm. Ice deflector is not in place or secured properly. Bin level sensing tube needs adjusted. -
Page 15: Warranty
Warranty Household Refrigeration Products Limited Warranty Entire Product - Limited One Year Parts and Labor Warranty. Aga Ranges warrants that it will supply all necessary parts and labor to repair or replace in the end user's home or office, any component which proves to be... - Page 16 Notes All specifications and product design subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
