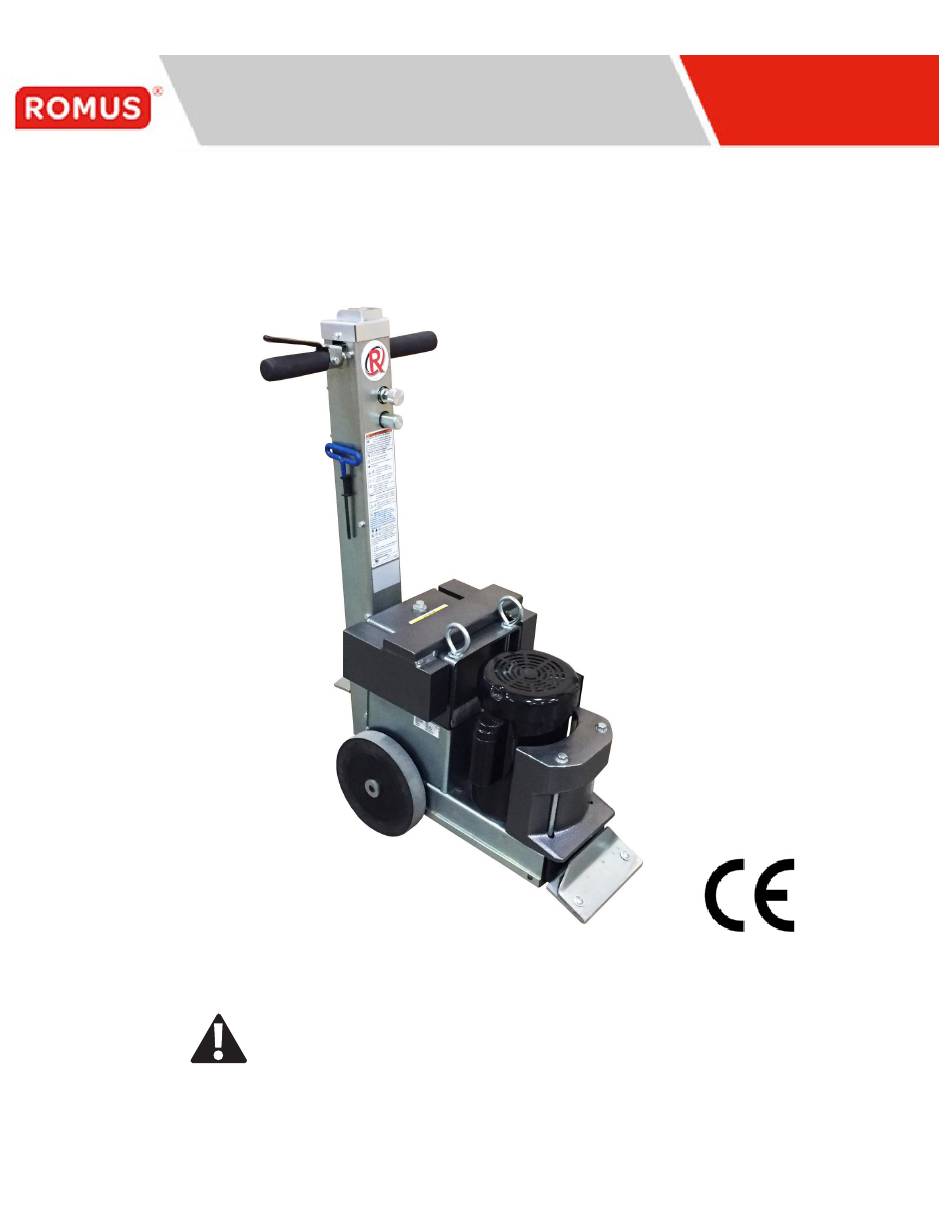

- Page 1 SELF-PROPELLED LIBERCO STRIPPER OPERATING & SERVICE MANUAL - EN Ref. 94575 Read Manual Before Operating or Servicing Machine 401871-ROM Rev E www.romus.fr www.romusworld.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ........................................3 Specifications ......................................... 4 Safety ............................................5 General Rules for Safe Operation ................................5 Walk-Behind Scraper Safety Guidelines ............................... 6 Hydraulic Safety......................................7 Electrical Practices ....................................... 8 Components and Assembly ....................................9 Transport ........................................9 Preparing Machine for Job.................................. -
Page 4: Specifications
Features and Specifications Forward Hydraulic Control Speed Control Knob Lifting Bail Eyebolts Saddle Weight Debris-Deflecting Front Weight FEATURES Forward Hydraulic Control- Safely propels the scraper forward. Saddle Weight- Provides additional down pressure and traction for tough jobs. Lifting Bail Eyebolts- Eases loading/unloading. Speed Control Knob - Controls the rate the machine travels forward. -
Page 5: Safety
Safety GENERAL RULES FOR SAFE OPERATION Before use, anyone operating or performing maintenance on this equipment must read and understand this manual, as well as any labels pack- aged with or attached to the machine and its components. Read the manual carefully to learn equipment applications and limitations, as well as potential hazards associated with this type of equipment. -
Page 6: Walk-Behind Scraper Safety Guidelines
Safety Safety WALK-BEHIND SCRAPER SAFETY GUIDELINES Before use, anyone operating this equipment must read and understand these safety instructions. Scraping Beware of hidden obtrusions. Watch out for hidden dangers and protrusions in flooring. Do not use on largely uneven surfaces. Observe location of electrical supplies and extension cords. -
Page 7: Hydraulic Safety
Safety HYDRAULIC SAFETY Maintaining a Safe Work Environment Establishing a safe work environment in and around your hydraulic equipment is extremely important. The easiest and most effective way to avoid problems is to make sure associates understand their equipment, know how to operate the machines safely, and recognize the dangers if handled carelessly. -
Page 8: Electrical Practices
Safety ELECTRICAL PRACTICES WARNING: ELECTRICAL CORDS CAN BE HAZARDOUS. MISUSE CAN RESULT IN FIRE OR DEATH BY ELECTRICAL SHOCK. READ CAREFULLY AND FOLLOW ALL DIRECTIONS. CAUTION: ALWAYS FOLLOW APPLICABLE ELECTRICAL CODES, STANDARDS AND/OR REGULATIONS. CONSULT YOUR LOCAL ELECTRICAL AUTHORITY OR A LICENSED ELECTRICIAN BEFORE ATTEMPTING TO MODIFY AN ELECTRICAL INSTALLATION. ENSURE THAT CIRCUIT AND GROUND FAULT PROTECTION DEVICES AND ALL OTHER ELECTRICAL SAFETY EQUIPMENT ARE FUNCTIONING PROPERLY. -
Page 9: Components And Assembly
Components and Assembly TRANSPORT Lifting Bail The lifting bails make loading/unloading easier when unable to use a ramp. Place rope, hook system, or chain through eyelets located on top of machine. Raise machine with a fork lift or winch. Slowly lower to desired location. Ramp Loading FIG. -
Page 10: Preparing Machine For Job
Components and Assembly PREPARING MACHINE FOR JOB WARNING: BLADES ARE SHARP, USE EXTREME CAUTION WHEN HAN- DLING. ALWAYS WEAR GLOVES AND EYE PROTECTION. NEVER CHANGE CUTTING HEAD OR SERVICE BLADES WHILE MACHINE IS RUNNING. Blade Setting Note: This machine is designed to remove soft good materials. FIG. -
Page 11: Operation
Operation OPERATING CONTROLS (FIGURE 7) ON/OFF Speed Control Switch • Turning speed control knob clockwise decreases forward speed. Forward • Turning speed control knob counterclockwise increases forward speed. Hydraulic Control • Speed control knob can be adjusted while machine is running. Forward Hydraulic Control •... -
Page 12: Application Setup
Operation APPLICATION SETUP VCT Tile Never use a blade wider than the size of the tile being removed. If materials being re- moved still do not come up clean or machine jumps on top of materials, reduce blade size until proper blade size is found or use a smaller portion of the blade. Pure Vinyl Rubber Tile Materials will need to be scored down to 25.4-30.5 cm for proper removal. -
Page 13: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution No forward movement Damaged belt Remove front cover plate and inspect belt. Damaged speed control valve Inspect speed control valve. Turn counter- clockwise to open valve. Motor shuts off or won’t start. Inspect ON/Off switch and capacitor. 401871-ROM_5280-ROM_RevE... -
Page 14: Maintenance
Maintenance WARNING: ALWAYS UNPLUG MACHINE BEFORE PERFORMING MAINTE- NANCE. WHEEL REMOVAL Examine back of wheels to see if debris is built up. Use a flashlight if needed. Wheel Securing Unplug machine; place block under machine between wheels. Screw Use 5/16” hex wrench to remove wheel securing screw (Figure 1). FIG. -
Page 15: Control Valve Replacement
Maintenance CONTROL VALVE REPLACEMENT Follow procedure to change fluid in order to drain the tank. Re-place drain plug and filler port cap. Disconnect valve plunger from control linkage. Mark the placement of the four hoses so they can be returned to their original positions. Disconnect and remove the four hoses from valve body. -
Page 16: Parts List And Diagrams
Parts List and Diagrams OVERALL MACHINE 11, 12 5, 13 PART# DESCRIPTION PART# DESCRIPTION 1 400330 WHEEL, DRIVE, LIGHT DUTY, COMPLETE 2 10 72837 CLAMP, CABLE, VINYL COATED, 5/16 2 5280-136 COVER, BLADE 11 6280-161B PLUG, VENT, FILLER CAP 3 5280-137W WRENCH, BLADE 12 6280-161D PLUG, FILLER PORT... -
Page 17: Hydraulic Tank
Parts List and Diagrams HYDRAULIC TANK PART# DESCRIPTION 1 5280-120 HOSE, HYDRAULIC, 3/8 X 9.25, 90F/90F 2 5280-162-SV HYDRAULIC TANK BODY, SILVER VEIN 3 6280-214 PLUG, TANK 4 6280-161D HYDRAULIC TANK FILLER CAP 5 6280-162G MAGNET, TANK (NOT SHOWN) 6 70601 STRAINER, TANK MOUNTED 7 72816 FITTING, ELBOW, 90 DEGREE, 3/8”... -
Page 18: Drive Components
Parts List and Diagrams DRIVE COMPONENTS PART# DESCRIPTION PART# DESCRIPTION 1 5280-1 CHAIN, DRIVE, 40 STRAND 12 5280-118 FITTING, 90 DEGREE 2 5280-2 SPROCKET, 40BS13 3/4 13 5280-129 ECCENTRIC 3 5280-3 SPROCKET, MOTOR, 40BS12X1 14 5280-132C PULLEY, PUMP 4 5280-4 BELT, PUMP DRIVE 15 73903 KEY, 3/16X3/16X2-1/4... -
Page 19: Motor Parts
Parts List and Diagrams MOTOR PARTS PART# DESCRIPTION 1 72353 MOTOR, 1 HP, 116265 2 5280-151 CAPACITOR, MOTOR 3 62182 COVER, CAPACITOR, LEESON 4 401698 BOX, JUNCTION, MOTOR, 3” X 3.3” 5 401869 GASKET, FRAME, JUNCTION BOX, 3X3.33” 6 401699 COVER, JUNCTION BOX, MOTOR, 3”... -
Page 20: Handle
Parts List and Diagrams HANDLE PART# DESCRIPTION PART# DESCRIPTION 1 6280-117 FITTING, PUMP 15 404180 SWITCH, ROCKER BREAKER, 10A, 220- 2 5280-167 HANDLE BODY 240V, UVR 3 5280-167B COVER, HANDLE BODY 16 6280-215 VALVE BLOCK ASSEMBLY 4 404313 COVER, HANDLE, SAFETY SWITCH 17 73002 WASHER, SPLIT LOCK 1/4 5 6280-208... -
Page 21: Back Of Machine
Parts List and Diagrams BACK OF MACHINE PART# DESCRIPTION 1 5280-139C ISOLATOR, HANDLE VIBRATION 2 404172 ASSEMBLY, CORD, POWER, 1.5MM/3, EU1-16P, 15IN 3 404583-028* ASSEMBLY, CORD, HANDLE, 2.5MM/3, NEMA L6-15R, 28” 4 403281* NUT, KEPS, M4-0.7, CLEAR ZINC 5 5280-172A LEVER, HANDLE 6 74650 BOLT, HEX FLANGE M10-25... -
Page 22: Labels
Parts List and Diagrams LABELS PART# DESCRIPTION 1 403357-ROM-FR KIT, LABELS, 5280, ROMUS, FRENCH 401871-ROM_5280-ROM_RevE... -
Page 23: Wiring Diagram
Parts List and Diagrams WIRING DIAGRAM (230V) 5280 WIRING DIAGRAM 230V VERSION PG 2 T-F11 T-F12 2.5mm-BRN 230V T-F21 T-F22 2.5mm-BLU SUPPLY ON/OFF SWITCH 2.5mm-GRN/YEL UNDERVOLTAGE PROTECTED T-R1 T-R2 GROUND GROUND TITLE: REVISIONS NAME DATE DESCRIPTION DATE 5280 WIRING DIAGRAMS DRAWN BY 2/25/2021 INITIAL RELEASE... -
Page 24: Hydraulics
Parts List and Diagrams HYDRAULICS BLEED HYDRAULIC VALVE FWD. PRESS. FLOW TO TOP OF TANK. FWD. PRESS. FLUID FLOW TANK HYDRAULIC MOTOR SUCTION (NEGATIVE PRESS.) POSITIVE HYD. PRESSURE PUMP 401871-ROM_5280-ROM_RevE... - Page 28 www.romusworld.com...
