Summary of Contents for HTS System AG WD-L

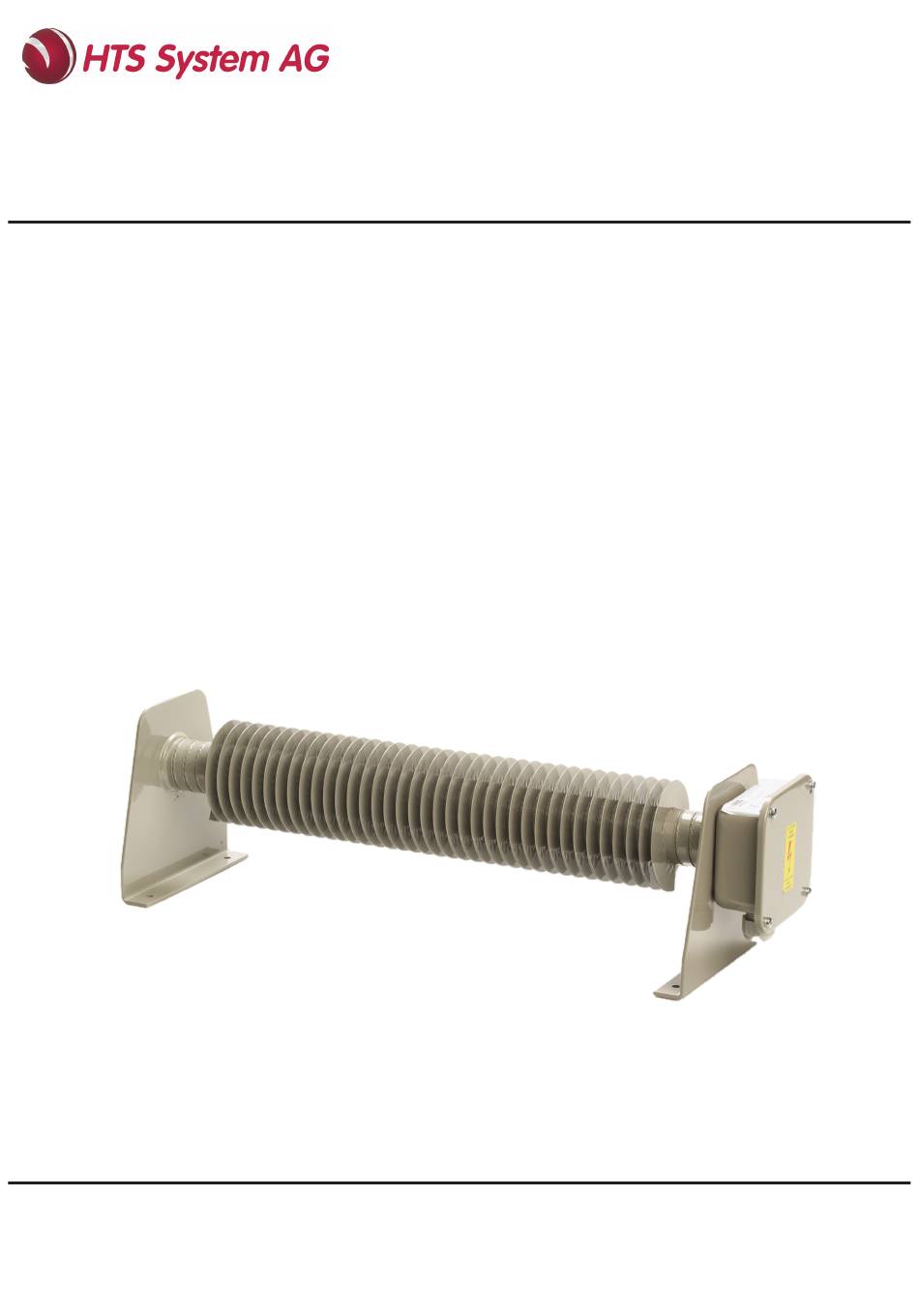

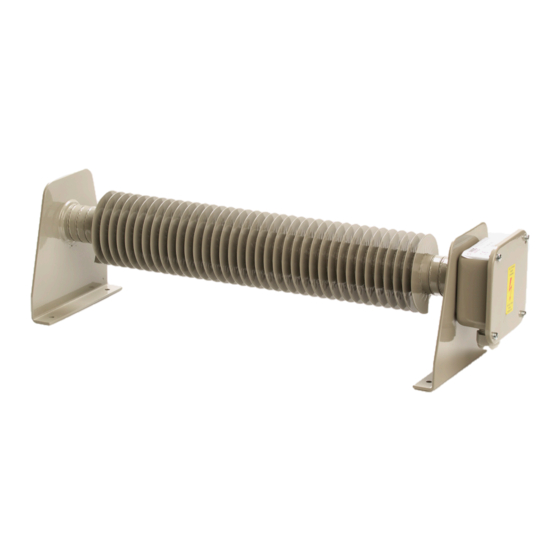

- Page 1 Bösch 63, CH-6331 Hünenberg Tel: +41 41 798 00 98 www.htsag.ch info@htsag.ch FINNED TUBE HEATER - Type WD-L / GG-L Manual...
- Page 2 1000 mm WD-L / GG-L 1500 (900 Watt) 1555 mm 1473 mm 1500 mm Electrical diagram incl. thermostat WD-L / GG-L 2000 (1250 Watt) 2055 mm 1973 mm 2000 mm Ø Bösch 63, CH-6331 Hünenberg Tel: +41 41 798 00 98...
- Page 3 (When there is a built-up thermostat mounted the protection is IP30) This heater complies with the CE directives. Cable connection by plastic cable gland M20. Type WD-L is (grey) epoxy coated, GG-L is galvanized. Application • Finned tube heaters are used in normal dry environments and in moist environments where “non-flammable material”...
