Setting up your UPS and external battery box
Avem Quirks
9 Business Park Drive
Lynbrook VIC 3975
1800 658 120
info@avemquirks.com.au
avemquirks.com.au
1. Unpack the UPS and battery pack from their
boxes. Please take care as the units are
extremely heavy.
2. Find a suitable location for the UPS and
battery pack to be placed. If sitting side by
side, please ensure there is ventilation
around the UPS for airflow.

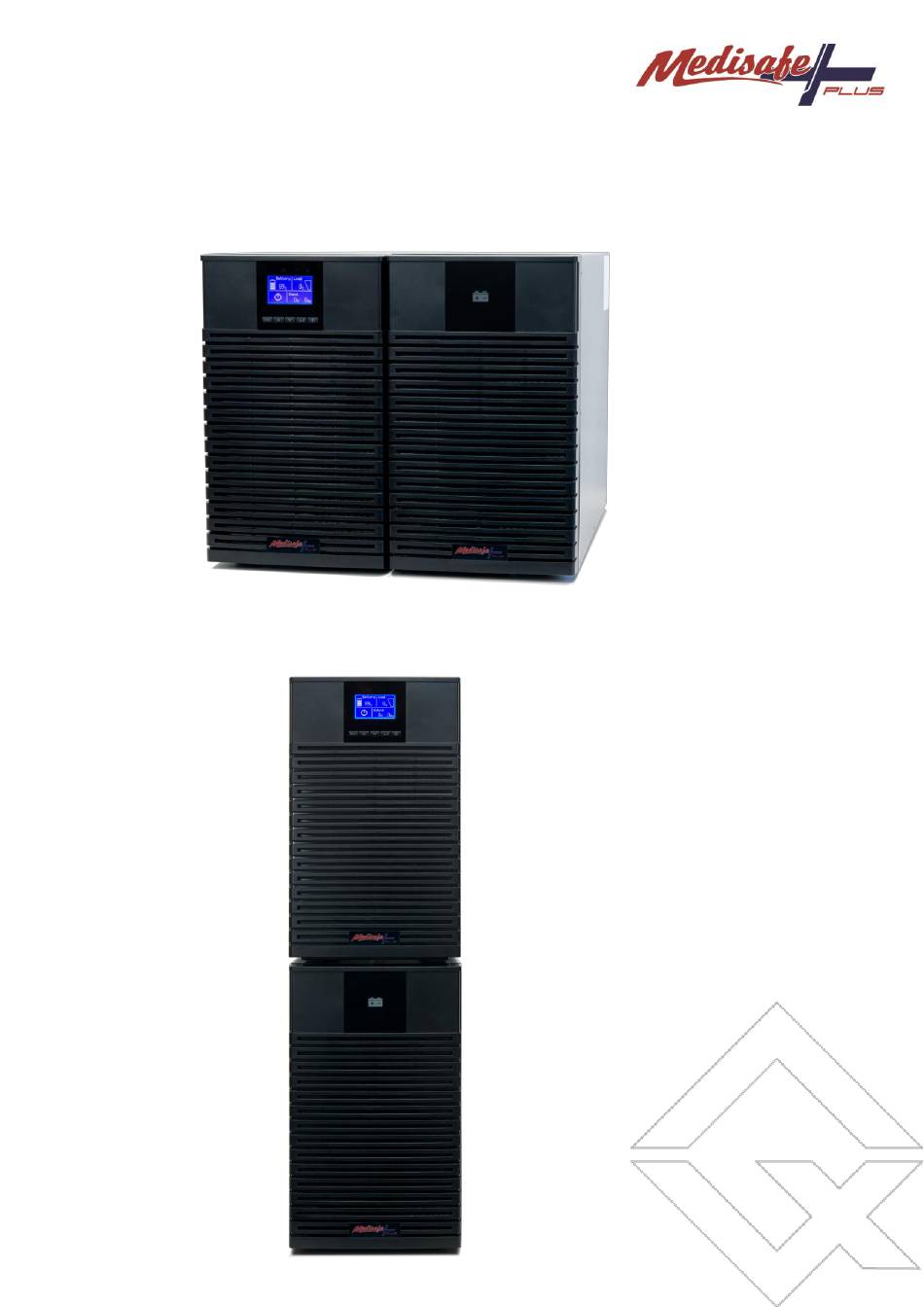

3. You may stack the UPS on top of the battery
pack as shown to the left, but you must not
stack the battery pack on top of the UPS.
4. Please ensure the UPS and battery pack are
installed in a dry, clean location, away from
heat. The ideal temperature to ensure the
longevity of the UPS and battery pack is
20 – 25ºC.
5. Do not plug in the UPS or battery pack yet.
Advertisement
Summary of Contents for Avem quirks Medisafe Plus
- Page 1 The ideal temperature to ensure the longevity of the UPS and battery pack is 20 – 25ºC. 5. Do not plug in the UPS or battery pack yet. Avem Quirks 9 Business Park Drive Lynbrook VIC 3975 1800 658 120 info@avemquirks.com.au...
- Page 2 5. Locate the external battery cover on the back of the UPS and battery pack. 6. The UPS will only have one external battery cover, and the battery box will have two. On the battery box, use the one at the top to link to the UPS.
- Page 3 9. Connect the battery cable to the top slot on the battery box. 10. If you need to disconnect the battery cable, press down the release and pull out. 11. Plug in the supplied power cable into the back of the UPS and switch the power on at the wall socket.
- Page 4 In the event of a power failure, the UPS will revert to battery back-up and there will be a constant beeping which can only be silenced by pressing the ‘ESC’ button once. Please contact us directly on 1 800 658 120 to schedule a Programmed Maintenance and Calibration service. Thank you for choosing Medisafe Plus.
