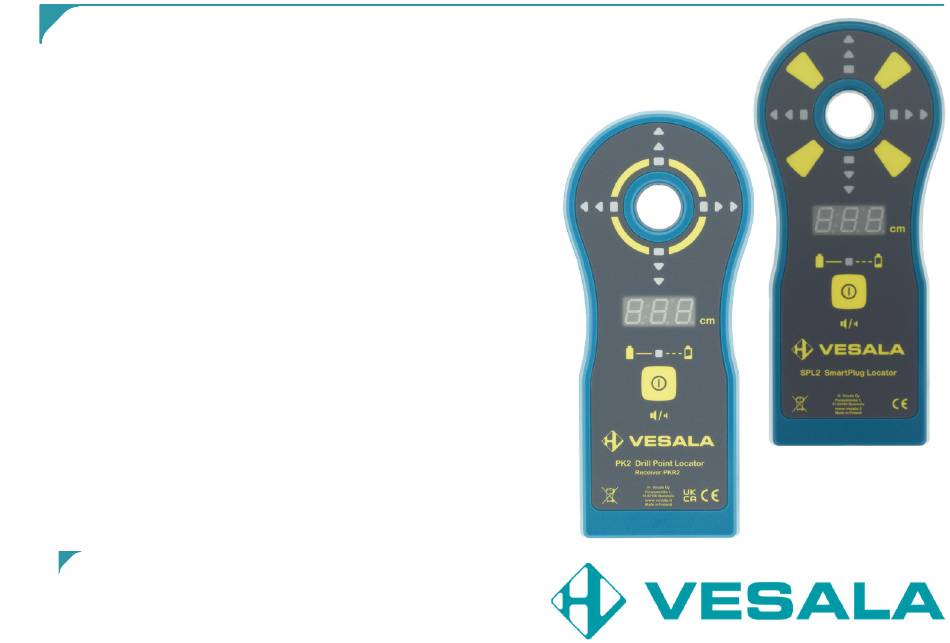

- Page 1 User Manual PK2 Receiver X2.0 ENG for Vesala Drill Point Locator Receiver PKR2 X2.0 and Vesala SPL2 SmartPlug Locator X2.0 IMPORTANT: Read carefully before use. Keep for future reference. English Issued: 2022-03-04 Revised: 2022-05-10...
- Page 2 2 (22) User Manual Vesala PK2 Receiver X2.0 ENG...
-
Page 3: Table Of Contents
5.2 Cleaning ....................................18 5.3 Troubleshooting ................................19 5.4 Modifying and misuse ..............................21 5.5 Warranty....................................21 5.6 Disposal ....................................21 6 Supplier contact information ..............................22 7 Declaration of conformity ............................... 22 3 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 4: Safety Notes
ATTENTION: Risk of locating error due to device misorientation Locating drill points with misoriented devices may degrade locator performance. Instructions for properly orienting the devices are provided in section 4: Operating receivers. 4 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 5: General Description
A separate transmitter unit is needed to mark the desired location. Transmitter PKT2 is included in PK2 Drill Point Locator kit with Receiver PKR2. In addition to that, PKR2 may be used with smaller transmitters SP15 SmartPlug or TX15 Plug Transmitter. SPL2 SmartPlug Locator is compatible with these small transmitters only. - Page 6 Distance indication range, continuous PKR2 and PKT2: 1…200 cm With SP15 or TX15: 0.2…30 cm Extended distance indication range until SP15 0.2…60 cm or TX15 power saving activates 6 (22) User Manual Vesala PK2 Receiver X2.0 ENG...
- Page 7 Receiver category International standards this product is in EN 300 220-1 conformance with EN 300 220-2 EN 300 330 EN 301 489-1 EN 301 489-3 EN 303 454 7 (22) User Manual Vesala PK2 Receiver X2.0 ENG...
-
Page 8: Package Contents
2.3 Package contents PK2 Drill point locator (V11740) contains the following items Drill Point Locator Receiver PKR2, version X2.0 (V11744) Drill Point Locator transmitter PKT2, version X2.0 (V11741) Alkaline battery LR03, 6 pcs (J01573) Felt pad, 4 pcs (N05925) ... -
Page 9: Pkr2 And Spl2 Parts And Functions
Volume resets to normal at start-up. Extended start-up press: Access menu, see chapter 3.4. Speaker Higher pitch indicates better alignment or shorter distance. Batteries Located backside under battery cover: 3 x 1.5 V LR03 or FR03 9 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 10: Commissioning
Put battery cover back on and gently close it. 3.2 Attaching felt pads Felt pads may be attached to the bottom of the receiver at designated spots to avoid scratches on structures and to ensure smooth movement. 10 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 11: Testing Correct Operation
3.3 Testing correct operation Refer to Vesala Transmitter PKT2 user manual for information on how to test correct operation with Transmitter PKT2 and Receiver PKR2. To test correct operation with SmartPlug SP15 or Plug Transmitter TX15, follow this sequence: When using Receiver PKR2, make sure it has the correct transmitter type selected. See chapter 3.4. -
Page 12: Selecting The Transmitter Type And Distance Measuring Units
Continuing to hold Power button cancels units change. This is indicated with a beep. If you wish to change transmitter or units again, repeat the sequence above. Selecting the wrong transmitter will either display incorrect distance or prevent operation completely. 12 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 13: Operating Receivers
Shut down or move any radio transmitters that actively transmit on the same frequency at least 10 m away from the intended drill hole. This includes other drill point locators. 13 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 14: Locating Accurately Thru Thick Structures
If necessary, use a spirit level to align the wedges. 14 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 15: Operating The Receiver
When only four green squares are displayed on the receiver, the transmitter and receiver are aligned and the distance between them can be read on the display. The spot can now be marked through the receiver's centre hole. 15 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 16: Measurement At An Angle
If the angles are not identical, the resulting hole should be drilled from both sides of the structure so that the holes meet inside the structure at different angles. 16 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 17: Offset Measurement With Pkr2 And Pkt2
Measure at least two, preferably four points at exactly same distance from the intended drilling point. Make separate measurements and markings for each reference point. The correct drilling spot is at the geometrical midpoint of the reference points. 17 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 18: Taking Care Of Your Equipment
Battery compartment and battery contact surfaces inside the battery compartment should only be cleaned with isopropanol and a soft, lint free cloth. 18 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 19: Troubleshooting
Transmitter PKT2 and Make sure that the structure is evenly or indicates receiver PKR2 are not on thick and place transmitter and receiver distance parallel planes. accurately on their surfaces. incorrectly. 19 (22) User Manual Vesala PK2 Receiver X2.0 ENG... - Page 20 There are large metal Try to find a spot without metal or use objects in the way. the offset measurement method. Wrong transmitter type is To select correct transmitter type, see selected. chapter 3.4. 20 (22) User Manual Vesala PK2 Receiver X2.0 ENG...
-
Page 21: Modifying And Misuse
Do not discard this product with household or general waste after its end-of-life. Return it for recycling according to EU Waste Electrical and Electronic Equipment directive (WEEE). For more information contact your supplier or local agent. 21 (22) User Manual Vesala PK2 Receiver X2.0 ENG... -
Page 22: Supplier Contact Information
Declaration of conformity Hereby, H. Vesala Oy declares that the radio equipment types Drill Point Locator Receiver PKR2 version X2.0 and SPL2 SmartPlug Locator version X2.0 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: vesala.fi/pk2/eudoc...
